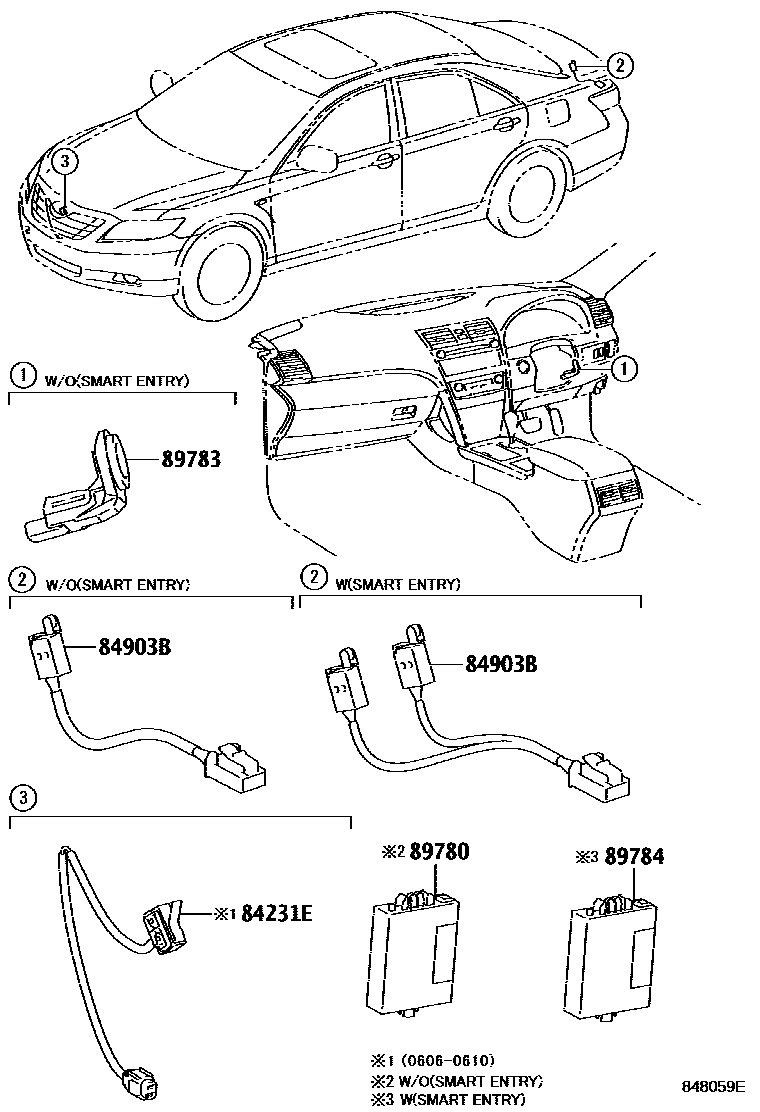

ANTI-THEFT DEVICE

0001 1 0002 1

84231ESWITCH, COURTESY(FOR SECURITY)

main84231-33140iACV40..ARL200606-200610

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-06010iACV40,GSV40..(ALT,ATEVA,ATX,GD,PRD,SPV,SPVS)..ARL200606-200908

main84903-33160iGSV40..GD200610-200908

main84903-33170iGSV40..PRE,SPVZ200610-200908

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-33160iACV40200606-200906

main89780-33190iACV40,GSV40..ALT,ATEVA,ATX,GL,GLX,PRD,SE,SPV,SPVS,TOU200906

89783AMPLIFIER, TRANSPONDER KEY

main89783-33120iACV40,GSV40..ALT,ATEVA,ATX,GL,GLX,PRD,SE,SPV,SPVS,TOU201005

main89783-71010iACV40;GSV40..ATX,PRD,SPVS,TOU200606-200802

main89783-71011iACV40200803-200906

main89783-71012iACV40,GSV40..ALT,ATEVA,ATX,GL,GLX,PRD,SE,SPV,SPVS,TOU201002-201004

89784COMPUTER, IMMOBILIZER CODE

main89784-33011iGSV40..GD,PRE,SPVZ200610-200908

5 parts on this diagram · 2 diagrams in section
