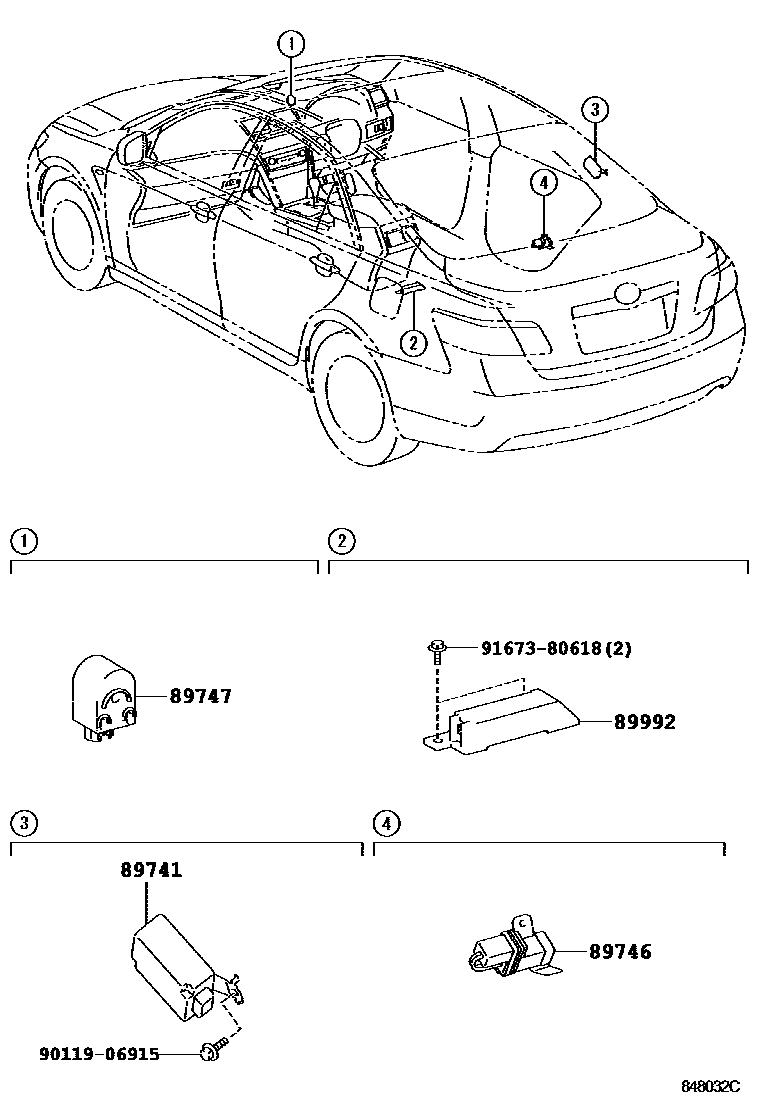

WIRELESS DOOR LOCK

0001 1 0003 1 0004 1 0005 1

89741RECEIVER, DOOR CONTROL

main89740-33030iGSV40..PRE,SPVZ200610-200710

main89740-33031iGSV40..PRE,SPVZ200711-200908

main89740-33070iGSV40..GD200610-200908

main89740-33071iGSV40..GD201005

main89741-AC080iGSV40..ATX,PRD,SPVS200610-200908

89746FILTER, WIRELESS DOOR LOCK

main89746-33090iGSV40..GD,PRE; GSV40..TOU200610-200908

SUN SHADE-WITH POWER

89747BUZZER, WIRELESS DOOR LOCK

main89747-48020iACV40..ALT,ATEVA,GD,GLX,SE,SPV; ACV40..GL200606-200906

WIRELESS DOOR LOCK-WITH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-33030iGSV40..GD,PRE,SPVZ200610-200908

NO.2

main89992-33040iACV40200606-200906

main89992-33060iACV40,AHV40,GSV40..GD,HBD,PRE,SPVZ200906

NO.1

main89992-42010iACV40,AHV40,GSV40..GD,HBD,PRE,SPVZ200906

NO.3

9011906915

main90119-06915

9167380618

main91673-80618

6 parts on this diagram · 4 diagrams in section
