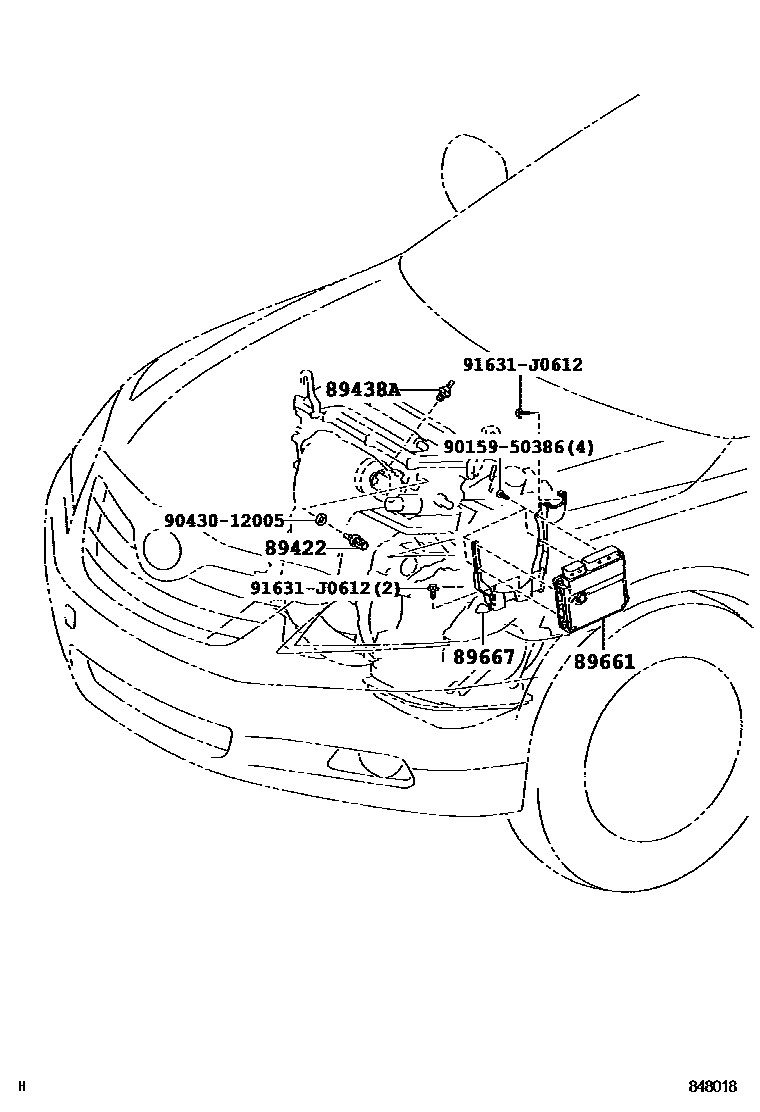

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iACV40,GSV40200606-200908

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iACV40,GSV40200606-200908

89661COMPUTER, ENGINE CONTROL

main89661-06C80iGSV40..ARL200908

main89661-06D00iGSV40..GCC; GSV40..PRD200908

PAPUA NEW GUINEA/FIJI SPEC

main89661-06E10iGSV40..ARL200610-200908

main89661-06E20iACV40..5F..ARL200606-200705

main89661-06E21iACV40..5F..ARL200706-200906

main89661-06E30iACV40..5FC..ARL200606-200906

main89661-06E40iACV40..5F..GCC200606-200906

main89661-06E50iACV40..5FC..GCC; ACV40..ATEVA200606-200906

PAPUA NEW GUINEA/FIJI SPEC

main89661-06E60iACV40..5F..ARL200906

main89661-06E70iACV40..5FC..ARL200906

main89661-06J70iACV40..5F..GCC200906

main89661-06J80iACV40..5FC..GCC; ACV40..ATEVA200906

PAPUA NEW GUINEA/FIJI SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-33140iGSV40..GCC200908

main89667-33170iGSV40..ARL200908

main89667-33180iACV40200906

9015950386

main90159-50386

9043012005

main90430-12005

91631J0612

main91631-J0612

7 parts on this diagram · 2 diagrams in section
