INTERIOR LAMP
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240LAMP ASSY, ROOM, NO.1
main81240-52040-B0iACV40,AHV40,GSV40..ALT,ATEVA,ATX,GD,GL,GLX,HBD,PRD,SPV,SPVS,SPVZ,TOU200906-201110
GRAY,TRIM1#
GREGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W; 12V 8W,SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)
12V 8W
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81340LAMP ASSY, VANITY
main81340-30100-B1×2iACV40,AHV40,GSV40..ALT,ATEVA,ATX,GD,GLX,HBD,PRD,PRE,SPV,SPVS,SPVZ,TOU200906-201110
GRAY,TRIM1#
GREGE,TRIM4#; SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF),GREGE,TRIM4#
81340BBULB (FOR VANITY LAMP)
12V 8W; 12V 8W,SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)
81360TLAMP ASSY, SPOT
main81360-30040-B1iACV40,GSV40..(GD,PRE)..ARL; ACV40..ATEVA,GLX,SE,SPV;GSV40..GD,PRD,SPVS,SPVZ,TOU200706-200902
GRAY,TRIM1#; SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF),GRAY,TRIM1#
GREGE,TRIM4#; SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF),GREGE,TRIM4#
main81360-30050-B0iACV40,GSV40..(GD,PRE)..ARL; ACV40..ATEVA,GLX,SE,SPV;GSV40..GD,PRD,SPVS,SPVZ,TOU200902-200908
GRAY,TRIM1#; SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF),GRAY,TRIM1#
GREGE,TRIM4#; SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF),GREGE,TRIM4#
81366CBASE, ROOM LAMP SWITCH
8202WIRING & CLAMP

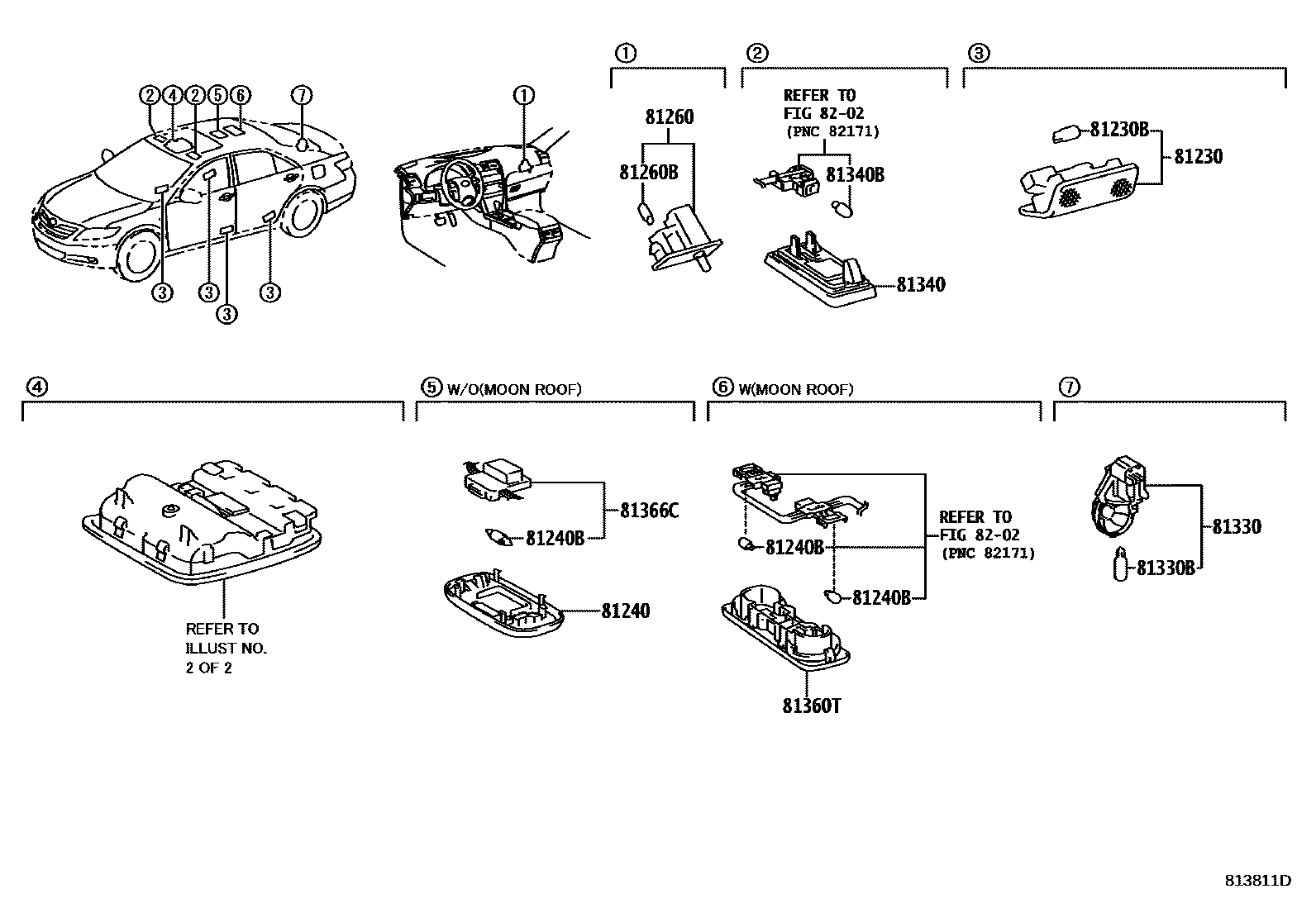

13 parts on this diagram · 2 diagrams in section
