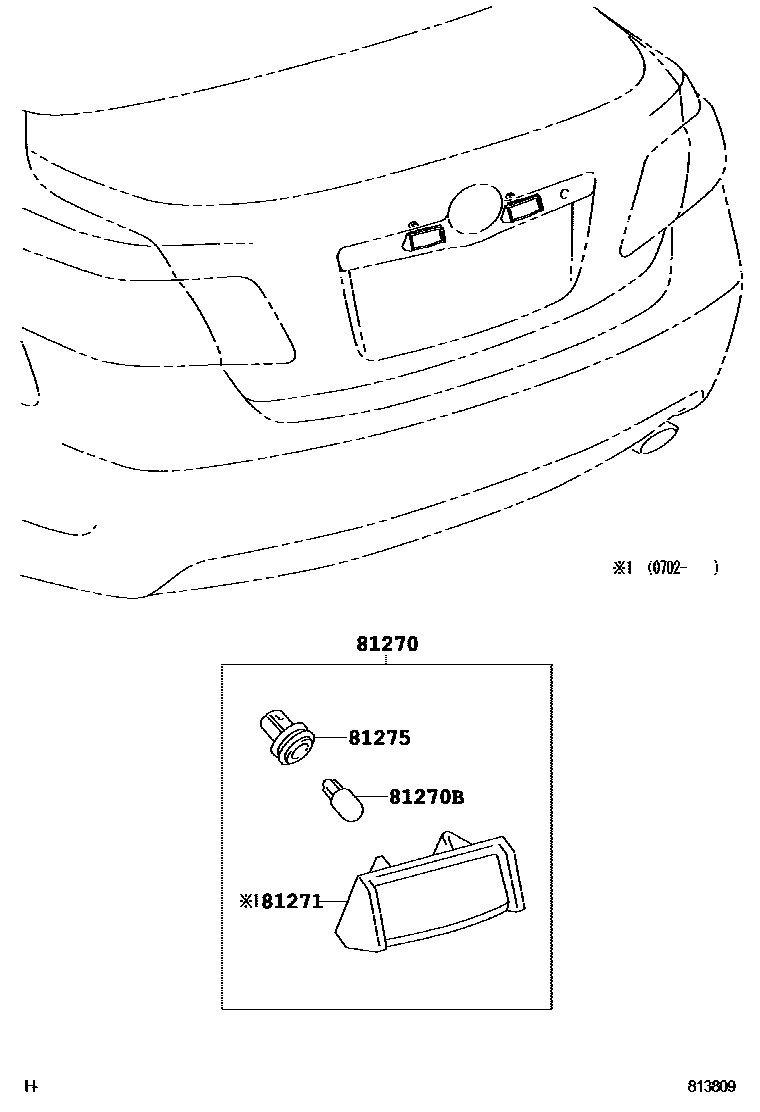

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-06052×2iACV40200702-200906

main81270-30290×2iGSV40200610-200611

main81270-30291×2iGSV40200611-200702

main81270-YC060×2iACV40200606-200701

81270BBULB (FOR LICENSE PLATE LAMP)

main84999-YC010×2iACV40200606-200702

12V 5W

main99132-12050×2iACV40,AHV40,GSV40200906

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-06050×2iGSV40200702-200908

main81271-30290×2iGSV40200610-200611

main81271-30291×2iGSV40200611-200702

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81515-8Y001×2iACV40200606-200702

main90075-99005×2iACV40200702-200906

4 parts on this diagram · 2 diagrams in section
