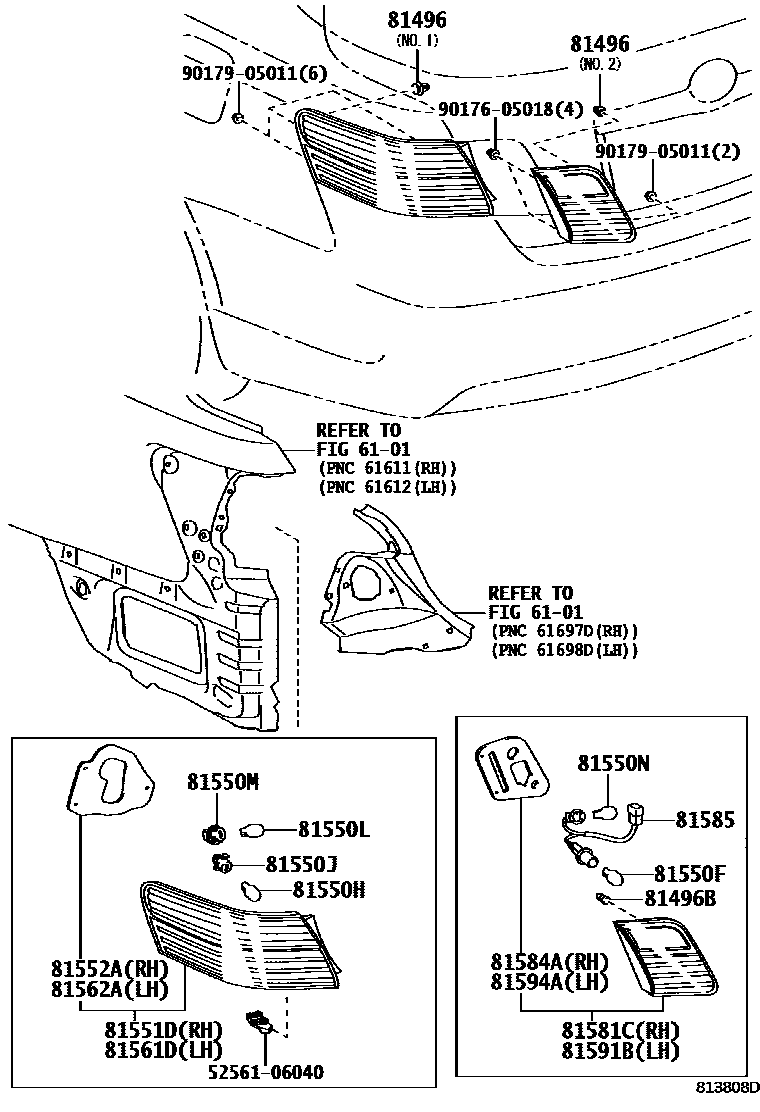

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-33010iACV40200606-200906

NO.2

main81496-60010iACV40,AHV40200606-200906

NO.1

main81496-60010iGSV40200610-200908

81496BGUIDE, REAR LAMP

main81496-33020iACV40200606-200906

81550FBULB, TAILLAMP

main99132-12050iACV40200606-200906

81550HBULB, TAIL & STOP LAMP

main99132-8Y002iACV40200606-200906

81550JSOCKET, TAIL & STOP LAMP

main90075-8Y003iACV40200606-200906

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iACV40,GSV40200606-200908

main90981-8Y021iGSV40200908

main90981-8Y440iACV40,AHV40200906

81550MSOCKET, REAR TURN SIGNAL LAMP

main90069-81071iGSV40200610-200908

main90069-8Y440iACV40,AHV40200906

main90075-8Y004iACV40200606-200906

81550NBULB, BACK UP LAMP

main90981-11059iGSV40200606-200908

main90981-8Y059iACV40,AHV40,GSV40200906

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-06271iGSV40..ATX,GD,PRD,PRE,TOU200610-200908

main81551-06301iGSV40..SPVS,SPVZ200610-200908

main81551-06410iGSV40..ATX,GD,PRD,PRE,TOU200908

main81551-06420iGSV40..SPVS,SPVZ200908

main81551-06440iACV40200906

main81551-06460iAHV40201001

main81551-8Y005iACV40200606-200906

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-06271iGSV40200610-200908

main81552-06410iGSV40200908-200912

main81552-06411iGSV40200912-201107

main81552-06412iGSV40201107-201110

main81552-06440iACV40200906-200912

main81552-06441iACV40,AHV40200912-201106

main81552-06442iACV40,AHV40201106-201110

main81552-8Y004iACV40200606-200906

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-06271iGSV40..ATX,GD,PRD,PRE,TOU200610-200908

main81561-06301iGSV40..SPVS,SPVZ200610-200908

main81561-06410iGSV40..ATX,GD,PRD,PRE,TOU200908

main81561-06420iGSV40..SPVS,SPVZ200908

main81561-06440iACV40200906

main81561-06460iAHV40201001

main81561-8Y005iACV40200606-200906

81562AGASKET, REAR COMBINATION LAMP, LH

main81552-06271iGSV40200610-200908

main81552-06410iGSV40200908-200912

main81552-06411iGSV40200912-201107

main81552-06412iGSV40201107-201110

main81552-06440iACV40200906-200912

main81552-06441iACV40,AHV40200912-201106

main81552-06442iACV40,AHV40201106-201110

main81552-8Y004iACV40200606-200906

81581CLENS AND BODY, REAR LAMP, RH

main81581-06161iGSV40..ATX,GD,PRD,PRE,TOU200610-200908

main81581-06201iGSV40..SPVS,SPVZ200610-200908

main81581-06320iGSV40..ATX,GD,PRD,PRE,TOU200908

main81581-06330iGSV40..SPVS,SPVZ200908

main81581-06350iACV40200906

main81581-06370iAHV40201001

main81671-8Y003iACV40200606-200906

81584AGASKET, REAR LAMP RH

main81584-06161iGSV40200610-200908

main81584-06320iGSV40200908-200912

main81584-06321iGSV40200912

main81672-8Y001iACV40200606-200906

81585SOCKET & WIRE, REAR LAMP

main81585-06161iGSV40200610-200908

main81585-06320iGSV40200908

main81675-8Y003iACV40200606-200906

81591BLENS AND BODY, REAR LAMP, LH

main81591-06161iGSV40..ATX,GD,PRD,PRE,TOU200610-200908

main81591-06201iGSV40..SPVS,SPVZ200610-200908

main81591-06320iGSV40..ATX,GD,PRD,PRE,TOU200908

main81591-06330iGSV40..SPVS,SPVZ200908

main81591-06350iACV40200906

main81591-06370iAHV40201001

main81681-8Y003iACV40200606-200906

81594AGASKET, REAR LAMP LH

main81584-06161iGSV40200610-200908

main81584-06320iGSV40200908-200912

main81584-06321iGSV40200912

main81672-8Y001iACV40,AHV40200606-200906

5256106040RETAINER, REAR BUMPER, UPPER CENTER

main52561-06040

9017605018

main90176-05018

9017905011

main90179-05011

21 parts on this diagram · 4 diagrams in section
