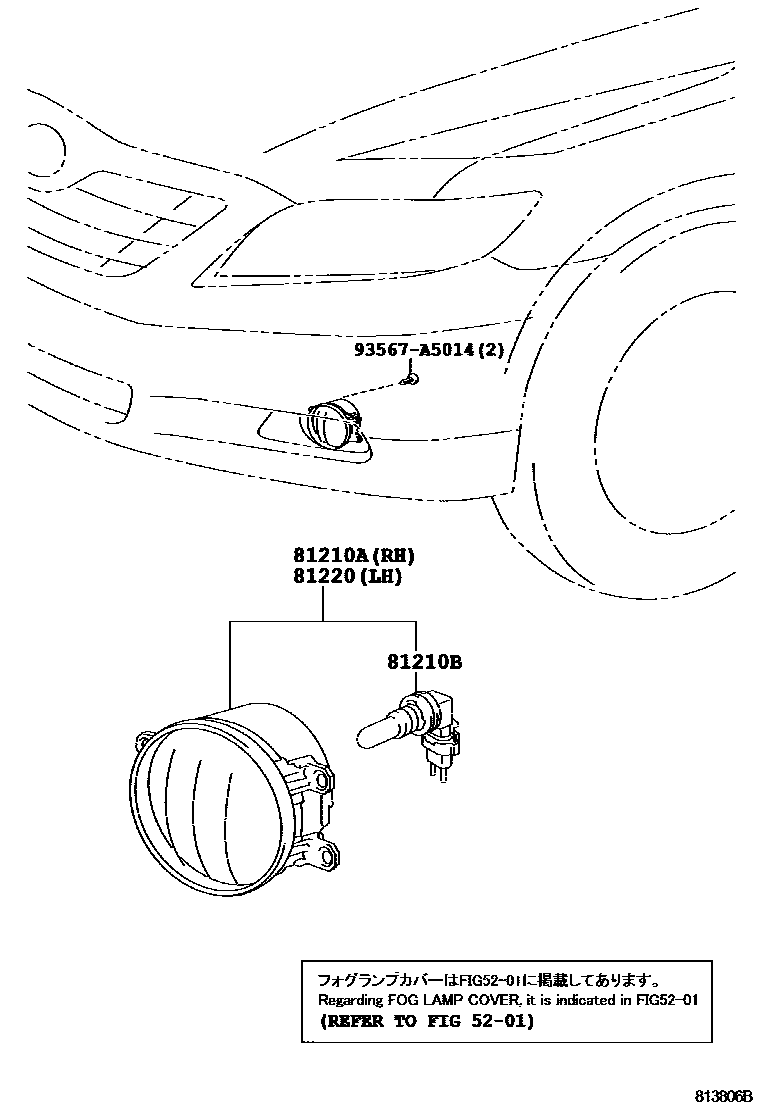

FOG LAMP

0001 1 0004 1

81210ALAMP ASSY, FOG, RH

main81210-06070iACV40,GSV40..ATEVA,GD,PRD,PRE,SE,SPV,SPVS,SPVZ200606-200908

main81210-06071iACV40,AHV40,GSV40..ATEVA,GD,HBD,PRD,PRE,SE,SPV,SPVS,SPVZ; ACV40,GSV40..ATM..(ALT,ATX); ACV40..GLX; GSV40..TOU201109-201110

AURION SPORTS PACKAGE; FRONT FOG LAMP-WITH; LIMITED

81210BBULB, FOG LAMP

main90981-AD006iACV40..ATEVA,GD,SE,SPV; ACV40..GLX200606-200906

12V 55W; 12V 55W,FRONT FOG LAMP-WITH

81220LAMP ASSY, FOG, LH

main81220-06070iACV40,GSV40..ATEVA,GD,PRD,PRE,SE,SPV,SPVS,SPVZ200606-200908

main81220-06071iACV40,AHV40,GSV40..ATEVA,GD,HBD,PRD,PRE,SE,SPV,SPVS,SPVZ; ACV40,GSV40..ATM..(ALT,ATX); ACV40..GLX; GSV40..TOU201109-201110

AURION SPORTS PACKAGE; FRONT FOG LAMP-WITH; LIMITED

93567A5014

main93567-A5014

4 parts on this diagram · 2 diagrams in section
