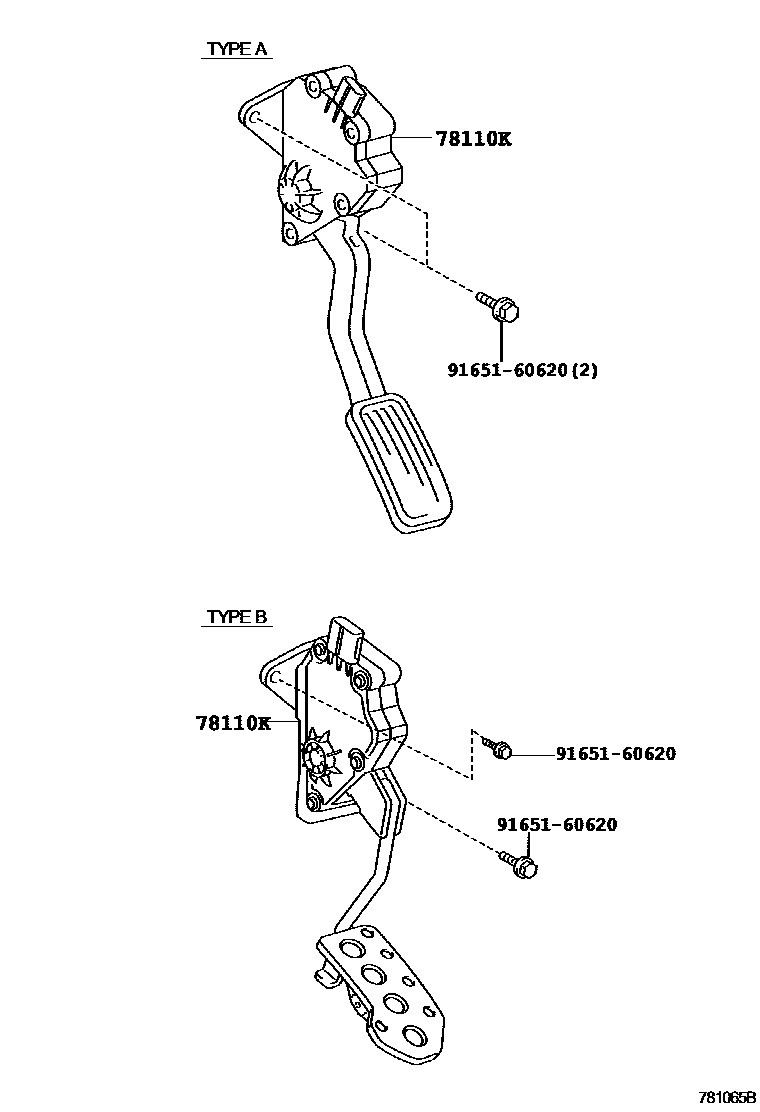

ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-33010iACV40,AHV40,GSV40..(ALT,ATEVA,ATX,GD,HBD,PRD,PRE)..ARL200906-201101

TYPE A:REFER ILLUST.

main78110-33011iACV40,AHV40,GSV40..(ALT,ATEVA,ATX,GD,HBD,PRD,PRE)..ARL201102

TYPE A:REFER ILLUST.

main78110-33020iACV40,GSV40..(GD,GL,GLX,TOU)..GCC200906-201008

TYPE A:REFER ILLUST.

main78110-33050iACV40,GSV40..SPV,SPVS,SPVZ200906-201101

TYPE B:REFER ILLUST.

main78110-33051iACV40,GSV40..SPV,SPVS,SPVZ; GSV40..ATX201102

LIMITED,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.

main78110-33060iACV40..SE200906-201008

TYPE B:REFER ILLUST.

main78110-33110iACV40,GSV40..(GD,GL,GLX,TOU)..GCC201009

TYPE A:REFER ILLUST.

main78110-33120iACV40..SE201009

TYPE B:REFER ILLUST.

9165160620

main91651-60620

2 parts on this diagram · 2 diagrams in section
