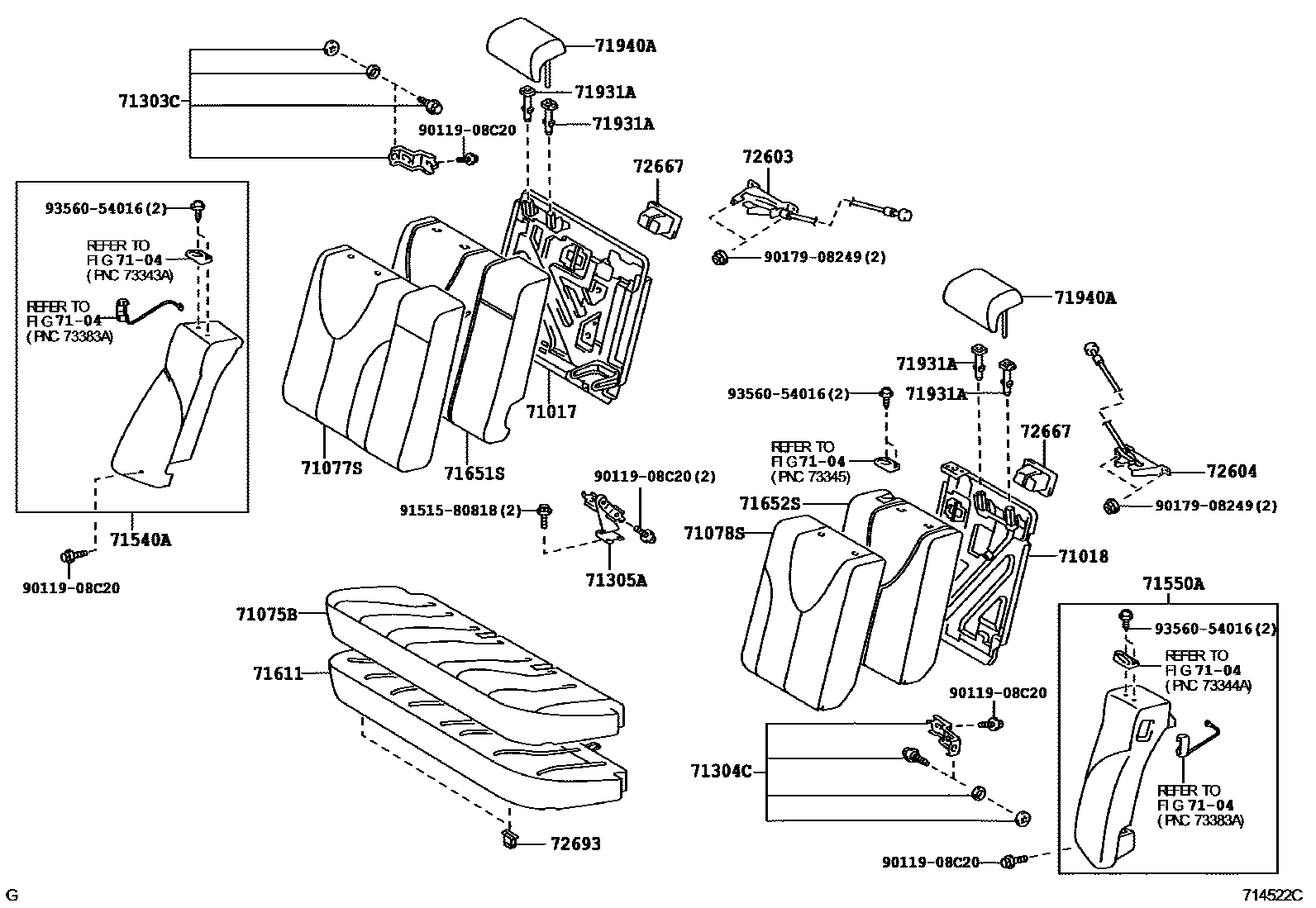

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-06120i200606-200906

main71017-06130i200606-200908

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-06080i200606-200906

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-06470-B0i200606-200906

GRAY,TRIM13

main71075-06470-B1i200606-200906

DK. GRAY,TRIM15

main71075-06480-B0i200606-200906

DK. GRAY,TRIM1#

main71075-06490-B0i200610-200908

GRAY,TRIM13

main71075-06490-B1i200610-200908

DK. GRAY,TRIM15

main71075-06500-B0i200606-200908

GRAY,TRIM1#

main71075-06500-E0i200606-200908

GREGE,TRIM4#

main71075-06510-B1i200906-201110

DK. GRAY,TRIM1#

main71075-06510-E0i200906-201110

GREGE,TRIM4#

main71075-06530-B1supersedes 71075-06510-B1i200906-201110

DK. GRAY,TRIM1#; SEAT COVER MATERIAL-LEATHER,DK. GRAY,TRIM1#

main71075-06530-E0supersedes 71075-06510-E0i200606-200906

GREGE,TRIM4#

main71075-06540-B0i200908-201110

DK. GRAY,TRIM1#

main71075-06540-E0i200610-200908

GREGE,TRIM4#

main71075-06590-B0i200606-200906

GRAY,TRIM1#

main71075-06590-E0i200606-200906

GREGE,TRIM4#

main71075-06720-B0i200906-201110

DK GRAY,TRIM15

main71075-06720-B1i200906-201110

GRAY,TRIM13,14

main71075-06730-E0i200906-201110

GREGE,TRIM4#

main71075-06740-B0i200906-201110

GRAY,TRIM1#

main71075-06740-E0i200906-201110

GREGE,TRIM4#

main71075-06770-B0i201012-201110

GRAY,TRIM13

main71075-06770-B1i201012-201110

DARK GRAY,TRIM12

main71075-06770-E0i200906-201110

GREGE,TRIM4#

main71075-06790-B0i200908-201110

DK GRAY,TRIM15

main71075-06790-B1i200908-201110

GRAY,TRIM14

main71075-06520-B0i200610-200908

AURION TRD PACKAGE,DK. GRAY,TRIM1#; DK. GRAY,TRIM1#

main71075-06530-B0supersedes 71075-06510-B0i200610-200908

SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM1#

main71075-06550-B0supersedes 71075-06730-B0i200606-200906

SEAT COVER MATERIAL-LEATHER,DK. GRAY,TRIM1#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-06530-B2i200606-200906

GRAY,TRIM13

main71077-06530-B3i200606-200906

DK. GRAY,TRIM15

main71077-06540-B1i200606-200906

GRAY,TRIM1#

main71077-06540-E1i200606-200906

GREGE,TRIM4#

main71077-06570-B1i200606-200908

GRAY,TRIM1#

main71077-06570-E1i200606-200908

GREGE,TRIM4#

main71077-06600-B1supersedes 71077-06B80-B1i200606-200906

DK. GRAY,TRIM1#

main71077-06600-E0i200606-200906

GREGE,TRIM4#

main71077-06830-B0i200906-201110

DK GRAY,TRIM15

main71077-06830-B1i200906-201110

GRAY,TRIM13,14

main71077-06850-B0i200906-201110

GRAY,TRIM1#

main71077-06850-E0i200906-201110

GREGE,TRIM4#

main71077-06870-B0i200906-201012

GRAY,TRIM1#

main71077-06870-B1i201012-201110

DARK GRAY,TRIM12

main71077-06870-E0i200906-201110

GREGE,TRIM4#

main71077-06B70-B1i200906-201110

DK. GRAY,TRIM1#; SEAT COVER MATERIAL-LEATHER,DK. GRAY,TRIM1#

main71077-06B70-E0supersedes 71077-06B80-E0i200906-201110

GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

main71077-06600-B0supersedes 71077-06B80-B0i200610-200908

SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM1#

main71077-06A70-B0supersedes 71077-06A80-B0i201001-201110

2.4HV HI,DK. GRAY,TRIM1#

main71077-06A70-E0supersedes 71077-06A80-E0i201001-201110

2.4HV HI,GREGE,TRIM4#

main71077-06B70-B0supersedes 71077-06B80-B0i200908-201110

SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-06280-B3i200606-200906

GRAY,TRIM13

main71078-06280-B4i200606-200906

DK. GRAY,TRIM15

main71078-06300-B1i200606-200908

GRAY,TRIM1#

main71078-06300-E1i200606-200908

GREGE,TRIM4#

main71078-06320-B1supersedes 71078-06570-B1i200606-200906

DK. GRAY,TRIM1#

main71078-06320-E0i200606-200906

GREGE,TRIM4#

main71078-06340-B1i200606-200906

GRAY,TRIM1#

main71078-06340-E1i200606-200906

GREGE,TRIM4#

main71078-06450-B0i200906-201110

DK GRAY,TRIM15

main71078-06450-B1i200906-201110

GRAY,TRIM13,14

main71078-06460-B0i200906-201012

GRAY,TRIM1#

main71078-06460-B1i201012-201110

DARK GRAY,TRIM12

main71078-06460-E0i200906-201110

GREGE,TRIM4#

main71078-06470-B0i200906-201110

GRAY,TRIM1#

main71078-06470-E0i200906-201110

GREGE,TRIM4#

main71078-06560-B1i200906-201110

DK. GRAY,TRIM1#; SEAT COVER MATERIAL-LEATHER,DK. GRAY,TRIM1#

main71078-06560-E0supersedes 71078-06570-E0i200906-201110

GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

main71078-06320-B0supersedes 71078-06570-B0i200610-200908

SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM1#

main71078-06520-B0supersedes 71078-06530-B0i201001-201110

2.4HV HI,DK. GRAY,TRIM1#

main71078-06520-E0supersedes 71078-06530-E0i201001-201110

2.4HV HI,GREGE,TRIM4#

main71078-06560-B0supersedes 71078-06570-B0i200908-201110

SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-06040i200606-200612

main71303-06041i200701-200908

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71303-06040i200606-200612

main71303-06041i200701-200906

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-06050i200606-200906

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-06100-B3i200606-200906

GRAY,TRIM13

main71540-06100-B4i200606-200906

DK.GRAY,TRIM15

main71540-06160-B1i200606-200908

GRAY,TRIM1#

main71540-06160-E1i200606-200908

GREGE,TRIM4#

main71540-06170-B0i200906-201009

DK.GRAY,TRIM13,14

main71540-06170-B1i200906-201110

GRAY,TRIM15

main71540-06190-B2supersedes 71540-06180-B2i200606-200906

DK.GRAY,TRIM1#

main71540-06190-E1i200606-200906

GREGE,TRIM4#

main71540-06220-B0i200606-200906

GRAY,TRIM1#

main71540-06220-E0i200606-200906

GREGE,TRIM4#

main71540-06280-B0i200906-201101

GRAY,TRIM1#

main71540-06280-E0i200906-201110

GREGE,TRIM4#

main71540-06300-B0i200906-201012

GRAY,TRIM1#

main71540-06300-B1i201012-201110

GRAY GCC FLEET,TRIM12

main71540-06300-E0i200906-201110

GREGE,TRIM4#

main71540-06330-B0i200906-201110

DK.GRAY,TRIM1#

main71540-06330-E0i200906-201110

GREGE,TRIM4#

main71540-06340-B0i200906-201110

DK.GRAY,TRIM1#; SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#

main71540-06340-E0supersedes 71540-06180-E1i200906-201110

GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

main71540-06190-B3supersedes 71540-06330-B1i200610-200908

SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM1#

main71540-06340-B1supersedes 71540-06330-B1i200908-201110

SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-06170-B3i200606-200906

GRAY,TRIM13

main71550-06170-B4i200606-200906

DK.GRAY,TRIM15

main71550-06180-B1i200606-200908

GRAY,TRIM1#

main71550-06180-E1i200606-200908

GREGE,TRIM4#

main71550-06200-B2supersedes 71550-06190-B2i200606-200906

DK.GRAY,TRIM1#

main71550-06200-E1i200606-200906

GREGE,TRIM4#

main71550-06210-B0i200606-200906

GRAY,TRIM1#

main71550-06210-E0i200606-200906

GREGE,TRIM4#

main71550-06270-B0i201009-201110

DK.GRAY,TRIM14

main71550-06270-B1i200906-201110

GRAY,TRIM15

main71550-06280-B0i200906-201101

GRAY,TRIM1#

main71550-06280-E0i200906-201110

GREGE,TRIM4#

main71550-06290-B0i200906-201012

GRAY,TRIM1#

main71550-06290-B1i201012-201110

GRAY GCC FLEET,TRIM12

main71550-06290-E0i200906-201110

GREGE,TRIM4#

main71550-06320-B0i200906-201110

DK.GRAY,TRIM1#

main71550-06320-E0i200906-201110

GREGE,TRIM4#

main71550-06330-B0i200906-201110

DK.GRAY,TRIM1#; SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#

main71550-06330-E0supersedes 71550-06190-E1i200906-201110

GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

main71550-06200-B3supersedes 71550-06320-B1i200610-200908

SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM1#

main71550-06330-B1supersedes 71550-06320-B1i200908-201110

SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#

71611PAD, REAR SEAT CUSHION

main71503-06130i200606-200906

main71503-06140i200906

main71503-06150i200610-200908

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-06140i200606-200906

main71651-06150i200606-200906

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-06090i200606-200908

71931ASUPPORT, REAR SEAT HEADREST

main71930-02050-B1×2i200906-201110

W(LOCK),DK.GRAY,TRIM1#; W(LOCK),DK.GRAY,TRIM15

main71930-02050-B4×3i200906-201101

W(LOCK),GRAY,TRIM1#

main71930-02050-E1×3i200906-201110

W(LOCK),GREGE,TRIM4#

main71930-42020-B4×4i200705-200908

W(LOCK)&W(BUTTON),AURION TRD PACKAGE&SEAT COVER MATERIAL-LETHER 3(TRD),DK.GRAY,TRIM1#; W(LOCK)&W(BUTTON),AURION TRD PACKAGE&SEAT COVER MATERIAL-LETHER 5(TRD),DK.GRAY,TRIM1#; W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

main71930-42020-B7×3i200610-200908

W(LOCK)&W(BUTTON),GRAY,TRIM13

main71930-42020-E1×3i200606-200908

W(LOCK)&W(BUTTON),GREGE,TRIM4#

main71931-02030-B1×3i200906-201110

W/O(LOCK),DK.GRAY,TRIM1#; W/O(LOCK),DK.GRAY,TRIM15

main71931-02030-B4×3i201012-201110

W/O(LOCK),GRAY,TRIM13

main71931-02030-E1×3i200906-201110

W/O(LOCK),GREGE,TRIM4#

main71931-42020-B4×2i200606-200906

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM15

main71931-42020-B7×2i200606-200906

W(LOCK)&W/O(BUTTON),GRAY,TRIM13

main71931-42020-E1×3i200606-200705

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

71940AHEADREST ASSY, REAR SEAT

main71940-06420-B0×2i200606-200702

GRAY,TRIM13

main71940-06420-B1×2i200606-200702

DK. GRAY,TRIM15

main71940-06420-B2×2i200606-200702

GRAY,TRIM1#

main71940-06420-B3×2i200702-200906

GRAY,TRIM1#; GRAY,TRIM13

main71940-06420-B4×2i200702-200906

DK. GRAY,TRIM15

main71940-06420-B5×2i201012-201110

DK GRAY,TRIM12

main71940-06420-B6×2i200906-201012

GRAY,TRIM1#

main71940-06420-E0×2i200606-200702

GREGE,TRIM4#

main71940-06420-E1×2i200702-200906

GREGE,TRIM4#

main71940-06420-E2×2i200906-201110

GREGE,TRIM4#

main71940-06430-B0×2i200606-200702

DK. GRAY,TRIM1#

main71940-06430-B1×2i200610-200702

GRAY,TRIM13

main71940-06430-B2×2i200610-200702

DK. GRAY,TRIM15

main71940-06430-B3×2i200702-200908

GRAY,TRIM13

main71940-06430-B4×2i200702-200908

DK. GRAY,TRIM15

main71940-06430-B5×2i200908-201110

DK GRAY,TRIM15

main71940-06430-B6×2i200908-201110

GRAY,TRIM14

main71940-06430-E0×2i200906-201110

GREGE,TRIM4#

main71940-06440-B0×2i200606-200702

GRAY,TRIM1#

main71940-06440-B3×2i200906-201101

MD. GRAY,TRIM1#

main71940-06440-B4×2i200906-201110

DK.GRAY,TRIM1#

main71940-06440-E0×2i200606-200702

GREGE,TRIM4#

main71940-06440-E2×2i200906-201110

GREGE,TRIM4#

main71940-06470-B1×2supersedes 71940-06440-B4i200606-200906

DK. GRAY,TRIM1#

main71940-06470-B2×2i200906-201110

DK.GRAY,TRIM1#; SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#

main71940-06470-E0×2i200606-200906

GREGE,TRIM4#

main71940-06470-E1×2supersedes 71940-06440-E1i200906-201110

GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

main71940-06490-B1×2i200610-200908

DK. GRAY,TRIM1#

main71940-06490-B2×2i200908-201110

DK.GRAY,TRIM1#

main71940-06490-E0×2i200610-200908

GREGE,TRIM4#

main71940-06490-E1×2i200908-201110

GREGE,TRIM4#

main71940-06690-B0×2i200906-201110

DK GRAY,TRIM15

main71940-06690-B1×2i200906-201110

GRAY,TRIM13,14

main71940-06460-B0×2supersedes 71940-06460-B2i200610-200702

AURION TRD PACKAGE,DK. GRAY,TRIM1#; DK. GRAY,TRIM1#

main71940-06460-B2×2i200702-200908

AURION TRD PACKAGE,DK. GRAY,TRIM1#; DK. GRAY,TRIM1#

main71940-06470-B0×2supersedes 71940-06440-B1i200610-200908

SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM1#

main71940-06470-B3×2supersedes 71940-06440-B1i200908-201110

SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#

main71940-06610-B0×2i200610-200908

AURION TRD PACKAGE,DK. GRAY,TRIM1#; DK. GRAY,TRIM1#

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72630-33060i200606-200906

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72640-33060i200906

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-06020×2i200606-200906

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2i200606-200908

9011908C20

main90119-08C20

9017908249

main90179-08249

9151580818

main91515-80818

9356054016

main93560-54016

REAR SEAT & SEAT TRACK
