FRONT SEAT & SEAT TRACK

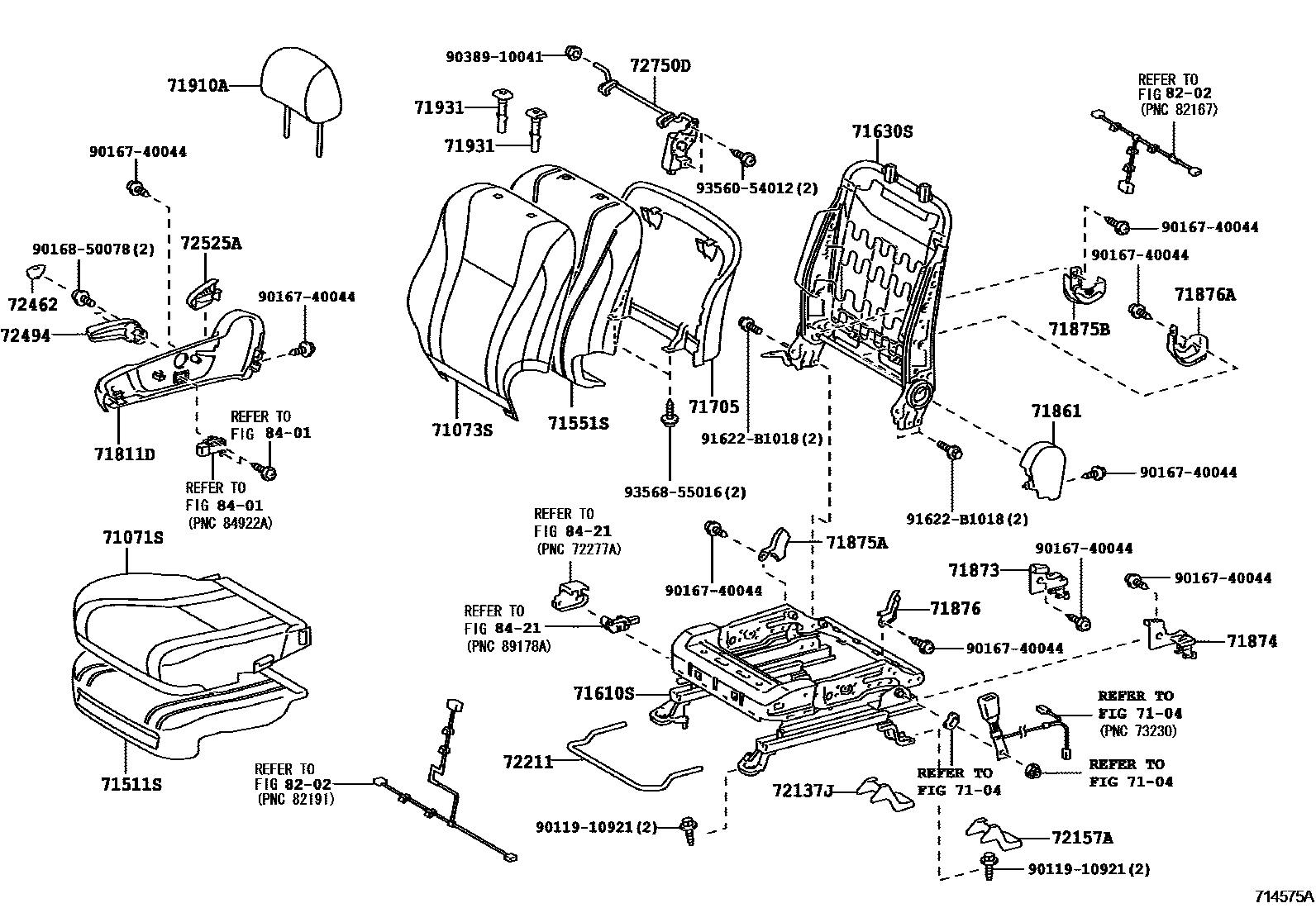

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-06640-B0i200606-200906
GRAY,TRIM1#
main71071-06640-E0i200606-200906
GREGE,TRIM4#
main71071-06650-B0i200606-200906
GRAY,TRIM13
main71071-06650-B1i200606-200906
DK. GRAY,TRIM15
main71071-06670-B0i200610-200908
GRAY,TRIM13
main71071-06670-B1i200610-200908
DK. GRAY,TRIM15
main71071-06680-B0i200606-200908
GRAY,TRIM1#
main71071-06680-E0i200606-200908
GREGE,TRIM4#
main71071-06700-B1i200606-200906
DK. GRAY,TRIM1#
main71071-06720-B1supersedes 71071-06690-B1i200606-200906
DK. GRAY,TRIM1#
main71071-06720-E0supersedes 71071-06690-E0i200906-201110
GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71071-06730-B0i200610-200908
DK. GRAY,TRIM1#
main71071-06730-E0i200908-201110
GREGE,TRIM4#
main71071-06A10-B0i200906-201110
DK GRAY,TRIM15
main71071-06A10-B1i200906-201110
GRAY,TRIM13,14
main71071-06A40-B0i200906-201012
GRAY,TRIM1#
main71071-06A40-B1i201012-201110
DARK GRAY,TRIM12
main71071-06A40-E0i200906-201110
GREGE,TRIM4#
main71071-06A50-B0i200906-201101
GRAY,TRIM1#
main71071-06A50-E0i200906-201110
GREGE,TRIM4#
main71071-06A70-E0i200906-201110
GREGE,TRIM4#
main71071-06B30-B0i200908-201110
DK GRAY,TRIM15
main71071-06B30-B1i200908-201110
GRAY,TRIM14
main71071-06710-B0i200610-200908
AURION TRD PACKAGE,DK. GRAY,TRIM1#; DK. GRAY,TRIM1#
main71071-06720-B0supersedes 71071-06690-B0i200908-201110
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
main71071-06740-B0i200610-200908
AURION TRD PACKAGE,DK. GRAY,TRIM1#; DK. GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-06820-B0i200610-200908
GRAY,TRIM13
main71073-06820-B1i200610-200908
DK. GRAY,TRIM15
main71073-06830-B1i200606-200908
GRAY,TRIM1#
main71073-06830-E1i200606-200908
GREGE,TRIM4#
main71073-06850-B1i200906-201008
DK. GRAY,TRIM1#
main71073-06850-E0supersedes 71073-06840-E1i200906-201008
GREGE,TRIM4#
main71073-06851-B1i201009-201110
DK. GRAY,TRIM1#
main71073-06851-E0i201009-201110
GREGE,TRIM4#
main71073-06870-B1supersedes 71073-06850-B1i200606-200906
DK. GRAY,TRIM1#
main71073-06870-E0supersedes 71073-06850-E0i200906-201008
GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71073-06871-B1i201009-201110
2.4HV HI,DK. GRAY,TRIM1#; DK. GRAY,TRIM1#; SEAT COVER MATERIAL-LEATHER,DK. GRAY,TRIM1#
main71073-06871-E0i201009-201110
2.4HV HI,GREGE,TRIM4#; GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71073-06880-B0i200610-200908
DK. GRAY,TRIM1#
main71073-06880-E0i200610-200908
GREGE,TRIM4#
main71073-06881-B0i201011-201110
DK. GRAY,TRIM1#
main71073-06881-E0i201011-201110
GREGE,TRIM4#
main71073-06A00-B2i200606-200906
DK.GRAY,TRIM1#
main71073-06A90-B0i200606-200906
GRAY,TRIM1#
main71073-06A90-E0i200606-200906
GREGE,TRIM4#
main71073-06C40-E0i200906-201110
GREGE,TRIM4#
main71073-06C70-B1i200906-201008
GRAY,TRIM13,14
main71073-06C71-B1i201009-201110
GRAY,TRIM14
main71073-06C90-B0i200906-201110
GRAY,TRIM1#
main71073-06C90-E0i200906-201110
GREGE,TRIM4#
main71073-06D00-B0i201012-201110
GRAY,TRIM13
main71073-06D00-B1i201012-201110
DARK GRAY,TRIM12
main71073-06D00-E0i200906-201110
GREGE,TRIM4#
main71073-06D50-B0i200908-201010
DK GRAY,TRIM15
main71073-06D50-B1i200908-201010
GRAY,TRIM14
main71073-06D51-B0i201011-201110
DARK GRAY,TRIM15
main71073-06D51-B1i201011-201110
GRAY,TRIM14
main71073-06800-B0supersedes 71073-06780-B3i200606-200906
SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM13
main71073-06800-B1supersedes 71073-06C71-B0i200606-200906
SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),DK.GRAY,TRIM15
main71073-06850-B0supersedes 71073-06851-B0i200610-200908
SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM1#
main71073-06860-B0supersedes 71073-06861-B0i200610-200908
AURION TRD PACKAGE,DK. GRAY,TRIM1#; DK. GRAY,TRIM1#
main71073-06870-B0supersedes 71073-06851-B0i200610-200908
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM1#
main71073-06871-B0supersedes 71073-06851-B0i201009-201110
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
main71073-06890-B0supersedes 71073-06891-B0i200610-200908
AURION TRD PACKAGE,DK. GRAY,TRIM1#; DK. GRAY,TRIM1#
main71073-06891-B0supersedes 71073-06C81-B0i201009-201110
DK. GRAY,TRIM1#; SEAT COVER MATERIAL-LEATHER,DK. GRAY,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-06010i200606-200906
main71501-06020supersedes 71501-06010i200606-200906
main71501-06030i200908
main71511-06360i200906
main71511-06370i200606-200906
main71511-06380i200906
main71511-06390i200908
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-06230i200606-200906
main71551-06260i200606-200906
main71551-06240i200705-200908
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN); SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN)
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-06090i200606-200906
main71610-06100i200606-200906
main71610-06110i200908
main71610-06120i200610-200908
AURION TRD PACKAGE
main71610-06150i200606-200906
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-06270i200606-200906
main71630-06280i200606-200906
main71630-06300supersedes 71630-06270i200606-200906
main71630-06320i200610-200908
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-06070-B0i200606-200906
DK.GRAY,TRIM15
main71705-06070-B1i200606-200908
GRAY,TRIM1#
main71705-06070-E0i200606-200908
GREGE,TRIM4#
main71705-06090-B0i200908-201110
DK.GRAY,TRIM1#; DK.GRAY,TRIM15
main71705-06090-B1i200908-201110
GRAY,TRIM14
main71705-06090-E0i200908-201110
GREGE,TRIM4#
main71705-06120-B0i200906-201110
DK.GRAY,TRIM1#; DK.GRAY,TRIM15
main71705-06120-B1i200906-201110
GRAY,TRIM1#; GRAY,TRIM13,14
main71705-06120-E0i200906-201110
GREGE,TRIM4#
main71705-06070i200610-200705
AURION TRD PACKAGE; SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN); SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN)
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-06130-B0i200606-200906
DK.GRAY,TRIM1#
main71811-06130-B1i200606-200908
GRAY,TRIM1#
main71811-06130-E0i200906-201110
GREGE,TRIM4#
main71811-06140-B0i200906-201110
DK.GRAY,TRIM15
main71811-06140-B1i200906-201110
GRAY,TRIM13,14
main71811-06150-B0supersedes 71811-06140-B0i200606-200908
DK.GRAY,TRIM1#
main71811-06150-B1i200610-200908
GRAY,TRIM1#; GRAY,TRIM13
main71811-06150-E0supersedes 71811-06140-E0i200906-201110
GREGE,TRIM4#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-06080-B0i200606-200906
DK.GRAY,TRIM1#; DK.GRAY,TRIM15
main71861-06080-B1i200906-201110
GRAY,TRIM1#; GRAY,TRIM13,14
main71861-06080-E0i200606-200908
GREGE,TRIM4#
main71861-06090-B0supersedes 71861-06080-B0i200606-200908
DK.GRAY,TRIM1#
main71861-06090-B1i200610-200908
GRAY,TRIM1#; GRAY,TRIM13
main71861-06090-E0i200906-201110
GREGE,TRIM4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-06330i200906
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-06310i200906
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-06140-B0i200606-200906
DK.GRAY,TRIM1#; DK.GRAY,TRIM15
main71875-06140-B1i200906-201110
GRAY,TRIM1#; GRAY,TRIM13,14
main71875-06140-E0i200606-200908
GREGE,TRIM4#
main71875-06160-B0supersedes 71875-06140-B0i200906-201110
DK.GRAY,TRIM1#
main71875-06160-B1i200908-201110
GRAY,TRIM1#; GRAY,TRIM14
main71875-06160-E0supersedes 71875-06140-E0i200906-201110
GREGE,TRIM4#
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-06320i200906
main71875-06380i200606-200906
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-06350-B0i200606-200906
DK.GRAY,TRIM1#; DK.GRAY,TRIM15
main71876-06350-B1i200606-200906
GRAY,TRIM13
main71876-06350-E0i200906-201110
GREGE,TRIM4#
main71876-06360-B0supersedes 71876-06350-B0i200606-200908
DK.GRAY,TRIM1#
main71876-06360-B1i200908-201110
GRAY,TRIM1#; GRAY,TRIM14
main71876-06360-E0supersedes 71876-06350-E0i200906-201110
GREGE,TRIM4#
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-06410i200606-200705
71910AHEADREST ASSY, FRONT SEAT
main71910-06340-B0×2i200606-200702
GRAY,TRIM13
main71910-06340-B1×2i200606-200702
DK. GRAY,TRIM15
main71910-06340-B2×2i200610-200702
GRAY,TRIM13
main71910-06340-B3×2i200606-200702
DK. GRAY,TRIM1#
main71910-06340-B4×2i200610-200702
DK. GRAY,TRIM15
main71910-06340-B5×2i200702-200906
GRAY,TRIM1#
main71910-06340-B6×2i200702-200906
DK. GRAY,TRIM1#
main71910-06340-B7×2i200908-201110
DK GRAY,TRIM15
main71910-06340-B8×2i200908-201110
GRAY,TRIM14
main71910-06340-E0×2i200606-200702
GREGE,TRIM4#
main71910-06340-E1×2i200702-200906
GREGE,TRIM4#
main71910-06340-E2×2i200906-201110
GREGE,TRIM4#
main71910-06370-B0×2i200606-200702
GRAY,TRIM1#
main71910-06370-B3×2i200906-201101
MD. GRAY,TRIM1#
main71910-06370-B4×2i200906-201110
DK.GRAY,TRIM1#
main71910-06370-E0×2i200606-200702
GREGE,TRIM4#
main71910-06370-E2×2i200702-200908
GREGE,TRIM4#
main71910-06400-B1×2supersedes 71910-06370-B4i200606-200906
DK. GRAY,TRIM1#
main71910-06400-B3×2i200906-201110
DK.GRAY,TRIM1#; SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#
main71910-06400-E0×2i200606-200906
GREGE,TRIM4#
main71910-06400-E1×2supersedes 71910-06370-E1i200906-201110
GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71910-06410-B0×2i200908-201110
DK. GRAY,TRIM1#
main71910-06410-E0×2i200610-200908
GREGE,TRIM4#
main71910-06530-B0×2i200906-201110
DK GRAY,TRIM15
main71910-06530-B1×2i200906-201110
GRAY,TRIM13,14
main71910-06390-B0×2supersedes 71910-06390-B2i200610-200702
AURION TRD PACKAGE,DK. GRAY,TRIM1#; DK. GRAY,TRIM1#
main71910-06390-B2×2i200702-200908
AURION TRD PACKAGE,DK. GRAY,TRIM1#; DK. GRAY,TRIM1#
main71910-06400-B0×2supersedes 71910-06370-B1i200610-200908
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM1#
main71910-06400-B4×2supersedes 71910-06370-B1i200908-201110
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
main71910-06420-B0×2supersedes 71910-06420-B1i200610-200908
AURION TRD PACKAGE,DK. GRAY,TRIM1#; DK. GRAY,TRIM1#
main71910-06420-B1×2supersedes 71910-06340-B7i200906-201110
SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71930-02050-B1×2i200906-201110
W(LOCK),DK.GRAY,TRIM1#; W(LOCK),DK.GRAY,TRIM15
main71930-02050-B4×2i200906-201110
W(LOCK),GRAY,TRIM1#; W(LOCK),GRAY,TRIM14
main71930-02050-E1×2i200906-201110
W(LOCK),GREGE,TRIM4#
main71930-42020-B4i200705-200908
W(LOCK)&W(BUTTON),AURION TRD PACKAGE&SEAT COVER MATERIAL-LETHER 3(TRD),DK.GRAY,TRIM1#; W(LOCK)&W(BUTTON),AURION TRD PACKAGE&SEAT COVER MATERIAL-LETHER 5(TRD),DK.GRAY,TRIM1#; W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#
main71930-42020-B7×2i200606-200908
W(LOCK)&W(BUTTON),GRAY,TRIM1#; W(LOCK)&W(BUTTON),GRAY,TRIM13
main71930-42020-E1×2i200606-200705
W(LOCK)&W(BUTTON),GREGE,TRIM4#
main71931-02030-B1×2i201012-201110
W/O(LOCK),DK.GRAY,TRIM12
main71931-02030-B4×2i201012-201110
W/O(LOCK),GRAY,TRIM13
main71931-02030-E1×2i200906-201110
W/O(LOCK),GREGE,TRIM4#
main71931-42020-B4×2i200606-200908
W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#; W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM15
main71931-42020-B7×2i200606-200908
W(LOCK)&W/O(BUTTON),GRAY,TRIM1#; W(LOCK)&W/O(BUTTON),GRAY,TRIM13
main71931-42020-E1i200705-200908
W(LOCK)&W/O(BUTTON),GREGE,TRIM4#
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
main72137-06070-B0i200906-201110
DK.GRAY,TRIM1#; DK.GRAY,TRIM12; DK.GRAY,TRIM15
main72137-06070-B1i200908-201110
GRAY,TRIM14
main72137-06070-E0i200906-201110
GREGE,TRIM4#
72157ACOVER, SEAT TRACK BRACKET, INNER RH
main72157-06070-B0i200606-200908
DK.GRAY,TRIM1#; DK.GRAY,TRIM15
main72157-06070-B1i200906-201110
GRAY,TRIM1#; GRAY,TRIM13; GRAY,TRIM13,14
main72157-06070-E0i200606-200908
GREGE,TRIM4#
72211HANDLE, SEAT TRACK ADJUSTING
main72211-06030×2i200906
72462COVER, VERTICAL ADJUSTER RH
main72462-06030-B0i200906-201110
DK.GRAY,TRIM15
main72462-06030-B1i200906-201110
GRAY,TRIM13,14
main72462-06030-E0i201001-201110
GREGE,TRIM4#
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-06040-B0i200906-201110
DK.GRAY,TRIM15
main72494-06040-B1i200606-200906
GRAY,TRIM13
main72494-06040-E0i201001-201110
GREGE,TRIM4#
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-06040-B0i200606-200906
DK.GRAY,TRIM1#
main72525-06040-B1i201012-201110
GRAY,TRIM13
main72525-06040-E0i200606-200908
GREGE,TRIM4#
main72525-06070-B0i201001-201110
DK.GRAY,TRIM1#
main72525-06070-B1i200906-201110
GRAY,TRIM13,14
main72525-06070-E0i201001-201110
GREGE,TRIM4#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-06030i200606-200906
8202WIRING & CLAMP
→ Go to FIG 82-02
8421AIR BAG
→ Go to FIG 84-21
9011910921
main90119-10921
9016740044
main90167-40044
9016850078
main90168-50078
9038910041
main90389-10041
91622B1018
main91622-B1018
9356054012
main93560-54012
9356855016
main93568-55016

34 parts on this diagram · 13 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
