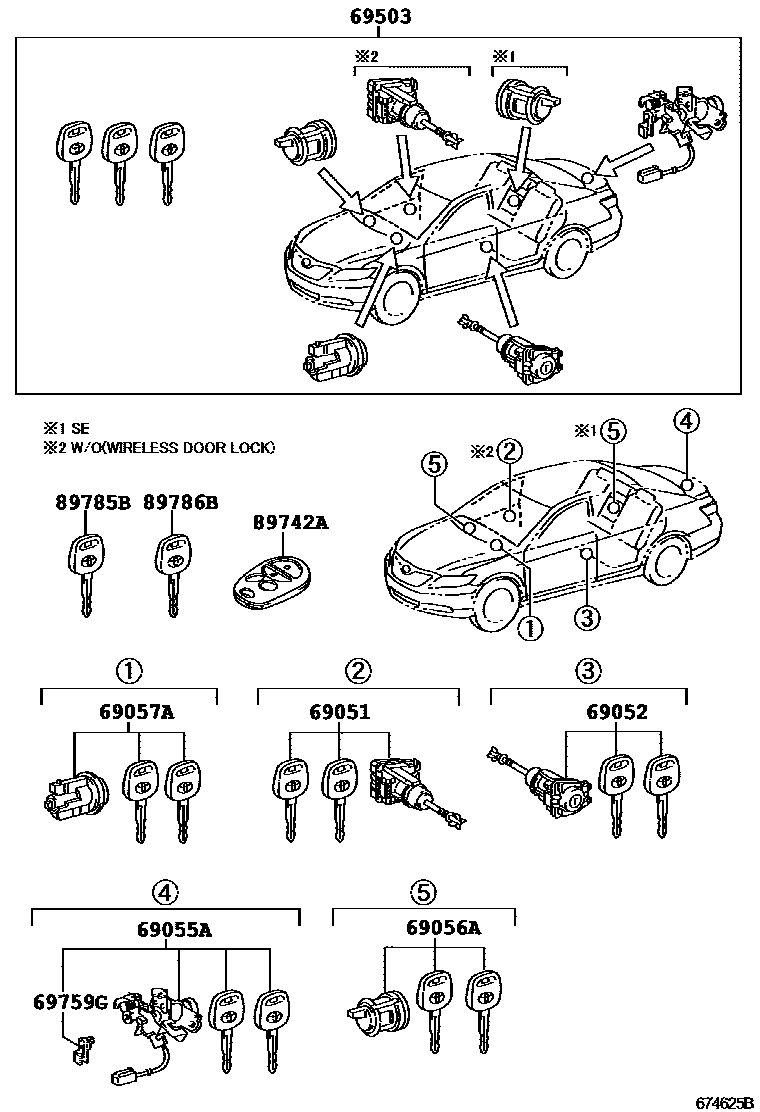

LOCK CYLINDER SET

0001 1W/O(SMART ENTRY) 0002 1W/O(SMART ENTRY) 0004 1W/O(SMART ENTRY) 0005 1W/O(SMART ENTRY) 0006 1W(SMART ENTRY) 0007 1W(SMART ENTRY)

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-06040iGSV40..ATX,PRD,SPVS200606-200908

main69051-33300iGSV40..PRE,SPVZ200610-200908

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-04020iACV40,GSV40..GL,GLX,SE,TOU200906

main69052-33330iGSV40..GD200908

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-06070iACV40..GCC200906

main69055-06090iGSV40..ATX,PRD,SPVS200610-200908

main69055-06130iACV40..ALT,ATEVA,SPV200906

main69055-06140iGSV40..TOU200908

main69055-33450iACV40,AHV40..GD,HBD200906

main69055-33470iGSV40..PRE,SPVZ200610-200908

main69055-33480iGSV40..GD200610-200908

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-06040iACV40,GSV40..ALT,ATEVA,ATX,GL,GLX,PRD,SE,SPV,SPVS,TOU200906

main69056-33200iACV40,AHV40,GSV40..GD,HBD,PRE,SPVZ200906

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-04030iACV40200606-200906

69503CYLINDER SET, LOCK

main69005-06350iACV40..SPV200906

main69005-06360iACV40..ALT,ATEVA,GD200606-200906

main69005-06370iACV40..SE200606-200906

main69005-06390supersedes 69005-06380iACV40..GL; ACV40..GLX200906

WIRELESS DOOR LOCK-WITH

main69005-06420iGSV40..ATX,PRD,SPVS200908

main69005-33B30iGSV40..PRE,SPVZ200908

main69005-33B50iGSV40..GD200610-200908

main69005-33C30iACV40,AHV40..GD,HBD200906

main69005-06460supersedes 69005-06430iGSV40..TOU200908

AURION SPORTS PACKAGE

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-06020iACV40200606-200906

main69759-24080iACV40,AHV40..GD,HBD200906

89742ATRANSMITTER, DOOR CONTROL

main89742-06030×2iACV40,GSV40..ALT,ATEVA,GLX,SE,SPV,TOU; ACV40..GL200906

WIRELESS DOOR LOCK-WITH

main89742-AC080×2iGSV40..ATX,PRD,SPVS200908

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-08020iGSV40..ATX,PRD,SPVS,TOU200606-200908

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-08020iACV40200606-200906

BLANK KEY

10 parts on this diagram · 6 diagrams in section
