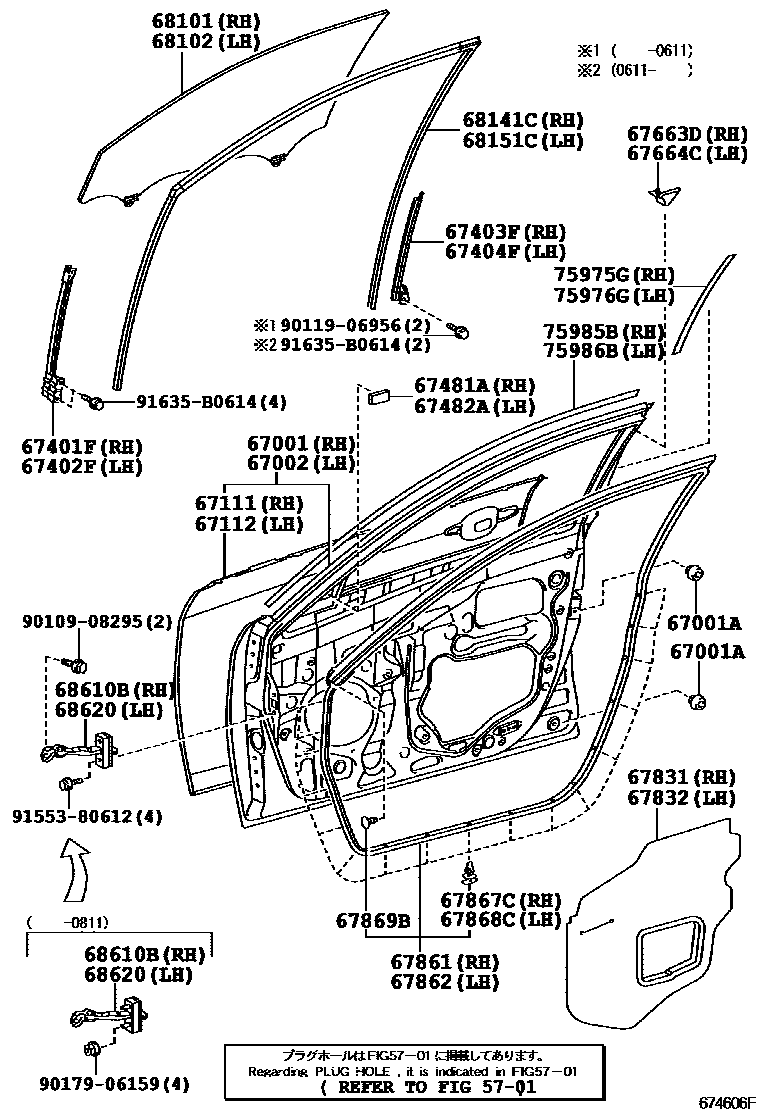

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701HOLE PLUG

→ Go to FIG 57-01

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-06130iACV40200606-200906

main67001-06160iACV40,AHV40,GSV40..ATX,HBD,PRD,PRE,SPV,SPVS,SPVZ200906

67001ACUSHION, FRONT DOOR PANEL

main90541-09117×4iACV40200606-200906

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-06130iACV40200606-200906

main67002-06160iACV40,AHV40,GSV40..ATX,HBD,PRD,PRE,SPV,SPVS,SPVZ200906

67111PANEL, FRONT DOOR, OUTER RH

main67111-06080iACV40200606-200906

main67111-06090iACV40,AHV40,GSV40..ATX,HBD,PRD,PRE,SPV,SPVS,SPVZ200906

67112PANEL, FRONT DOOR, OUTER LH

main67112-06080iACV40200606-200906

main67112-06090iACV40,AHV40,GSV40..ATX,HBD,PRD,PRE,SPV,SPVS,SPVZ200906

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-06080iACV40200606-200906

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-06080iACV40200606-200906

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-06060iACV40200606-200607

main67403-06061iACV40200607-200906

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-06060iACV40200606-200607

main67404-06061iACV40200607-200906

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-06020iACV40200606-200906

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67481-06020iGSV40200606-200908

67663DGARNISH, DOOR FRAME, RH

main67663-06040iACV40200606-200906

67664CGARNISH, DOOR FRAME, LH

main67664-06040iACV40200606-200906

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-06090iACV40,AHV40,GSV40200906

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-06090iGSV40200606-200908

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-06070iACV40200606-200906

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-06070iACV40200606-200906

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×17iACV40200606-200906

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×17iACV40200606-200906

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67868-30030×2iACV40200606-200906

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-06130iACV40200606-200906

*TEM,T=5.0,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-06130iACV40200606-200906

*TEM,T=5.0,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-06070iACV40200606-200906

68151CRUN, FRONT DOOR GLASS, LH

main68151-06060iGSV40200606-200908

68610BCHECK ASSY, FRONT DOOR, RH

main68610-06070iACV40,GSV40200606-200811

main68610-06071iACV40200811-200906

68620CHECK ASSY, FRONT DOOR, LH

main68620-06070iACV40,GSV40200606-200811

main68620-06071iACV40,AHV40,GSV40200906

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-06020iGSV40200606-200908

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-06020iACV40,AHV40,GSV40200906

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-06020iACV40,AHV40,GSV40200906

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-06020iGSV40200606-200908

9010908295

main90109-08295

9011906956

main90119-06956

9017906159

main90179-06159

9155380612

main91553-80612

91635B0614

main91635-B0614

36 parts on this diagram · 2 diagrams in section
