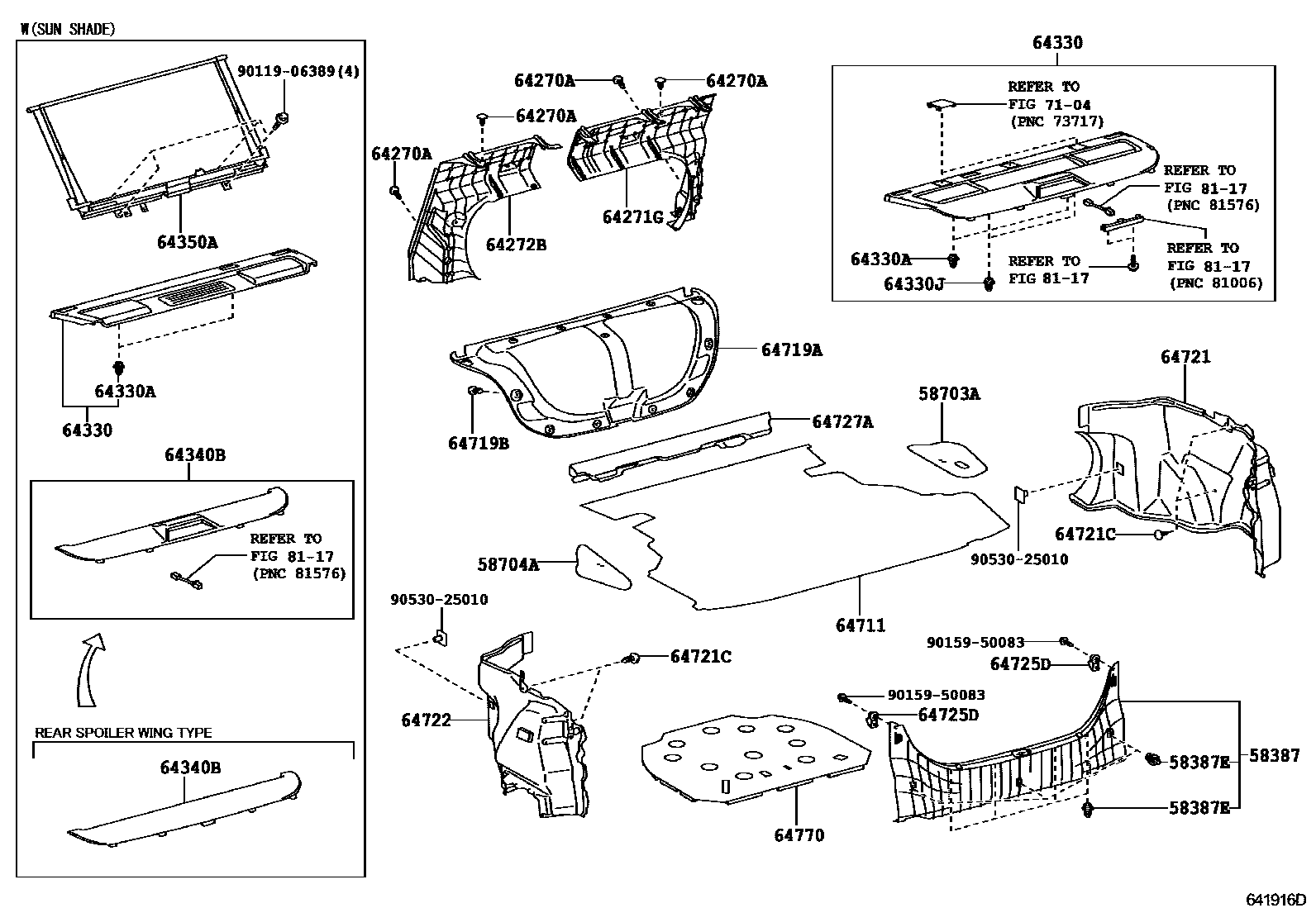

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1FOLDING TYPE REAR SEAT 0002 1FIXED TYPE REAR SEAT 0004 1

58387PLATE, REAR FLOOR FINISH

main58387-06100iGSV40200606-200908

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-10161iACV40,AHV40,GSV40200606-200908

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-06100iGSV40200606-200908

sub58703-33050

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-06040iACV40,GSV40200606-200908

64270ACLIP(FOR ROOM PARTITION BOARD SETTING)

main90467-08186-C0iACV40,GSV40..ALT,ATEVA,GD,GL,GLX,TOU200606-201110

BLACK

sub90467-08186

64271GBOARD, ROOM PARTITION, RH

main64271-06030iACV40..ALT,ATEVA,GD,GL,GLX200606-200908

64272BBOARD, ROOM PARTITION, LH

main64272-06020iACV40..ALT,ATEVA,GD,GL,GLX200606-200908

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-06360-B2iGSV40..TOU200908-200909

REAR SPOILER-WITH(WING TYPE)&SUN SHADE-WITH(POWER),GRAY,TRIM1#

main64330-06360-B2iGSV40..TOU200610-201110

GRAY,TRIM1#

main64330-06360-B2iGSV40..GD200610-200908

REAR SPOILER-WITH(WING TYPE)&SUN SHADE-WITH POWER,GRAY,TRIM1#

main64330-06360-B2iACV40,GSV40..GLX,TOU201010-201110

SUN SHADE-WITH(POWER),GRAY,TRIM1#

main64330-06360-B3iACV40..GD200606-201110

DK. GRAY PACKAGE TRAY,TRIM1#

main64330-06360-E3iACV40,GSV40..GLX,TOU200906-201110

SUN SHADE-WITH(POWER),GREGE,TRIM4#

main64330-06360-E3iACV40,GSV40..GD200606-201110

GREGE,TRIM4#

main64330-06360-E3iACV40,GSV40..GD200606-200908

SUN SHADE-WITH POWER,GREGE,TRIM4#

main64330-06370-B2iACV40..ALT200606-200612

DK.GRAY,TRIM15

sub64330-06371

main64330-06370-B2iACV40..ATEVA200606-200612

DK.GRAY,TRIM1#

sub64330-06371

main64330-06370-B3iACV40,GSV40..GL,GLX,TOU200606-200612

GRAY,TRIM1#

sub64330-06371

main64330-06370-B3iACV40,GSV40..GL,GLX,TOU200606-200612

GRAY,TRIM13

sub64330-06371

main64330-06370-E1iACV40,GSV40..ATEVA,GL,GLX,TOU200606-200612

GREGE,TRIM4#

sub64330-06371

main64330-06371-B2iACV40..GL200701-201110

DK.GRAY,TRIM1#

main64330-06371-B2iACV40..ATEVA200701-201110

DK.GRAY,TRIM15

main64330-06371-B2iACV40..GL200906-201110

DK.GRAY,TRIM12

main64330-06371-B3iACV40,GSV40..GLX,TOU200701-201110

GRAY,TRIM13

main64330-06371-B3iACV40,GSV40..GL,GLX,TOU200701-201110

GRAY,TRIM1#

main64330-06371-B3iACV40..GL200906-201110

GRAY,TRIM13,14

main64330-06371-B4iACV40..GL201012-201108

GRAY GCC FLEET,TRIM12

main64330-06371-E1iACV40,GSV40..ATEVA,GL,GLX,TOU200701-201110

GREGE,TRIM4#

main64330-06380-B2iGSV40..ATX200610-200612

DK.GRAY,TRIM15

sub64330-06381

main64330-06380-B2iACV40,GSV40..PRD,SE,SPV200606-200612

DK.GRAY,TRIM1#

sub64330-06381

main64330-06380-B3iGSV40..ATX200610-200612

GRAY,TRIM13

sub64330-06381

main64330-06380-E1iGSV40..PRD200610-200612

GREGE,TRIM4#

sub64330-06381

main64330-06381-B2iACV40,GSV40..PRD,SE,SPV200701-201110

DK.GRAY,TRIM15

main64330-06381-B2iACV40..SPV200701-201110

DK.GRAY,TRIM1#

main64330-06381-B3iGSV40..ATX200908-201110

GRAY,TRIM14

main64330-06381-B3iGSV40..ATX200701-200908

GRAY,TRIM13

main64330-06381-E1iGSV40..PRD200701-201110

GREGE,TRIM4#

main64330-06390-B2iGSV40..ATX200610-201110

REAR SPOILER-WITH(WING TYPE),DK.GRAY,TRIM15

main64330-06390-B2iGSV40..SPVS200610-201110

DK.GRAY,TRIM1#

main64330-06450-B1iGSV40..PRD,PRE,SPVZ200610-201110

DK. GRAY PACKAGE TRAY,TRIM1#

main64330-06450-E2iGSV40..PRD,PRE200610-201110

GREGE,TRIM4#

main64330-06450-E2iGSV40..TOU200908-200909

AURION SPORTS PACKAGE&REAR SPOILER-WITH(WING TYPE)&SUN SHADE-WITH(POWER),GREGE,TRIM4#

main64330-06530-B0iAHV40201001-201110

DK.GRAY,TRIM1#

main64330-06530-E0iAHV40201001-201110

GREGE,TRIM4#

main64330-06610-B0iGSV40..GD200910-201010

GRAY,TRIM1#

sub64330-06360

main64330-06610-B0iGSV40..GD200910-201010

SUN SHADE-WITH(POWER),GRAY,TRIM1#

sub64330-06360

main64330-06610-B1iACV40..GD200910-201010

DK. GRAY PACKAGE TRAY,TRIM1#

sub64330-06360

main64330-06610-E0iACV40,GSV40..GLX,TOU200910-201010

GREGE,TRIM4#

sub64330-06360

main64330-06610-E0iACV40,GSV40..GD200910-201010

SUN SHADE-WITH(POWER),GREGE,TRIM4#

sub64330-06360

main64330-06620-B0iGSV40..PRD,PRE200910-201010

DK. GRAY PACKAGE TRAY,TRIM1#

sub64330-06450

main64330-06620-E0iGSV40..PRD,PRE200910-201010

GREGE,TRIM4#

sub64330-06450

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161iACV40..GD200606-200908

SUN SHADE-WITH POWER,(J)

main90467-10161iACV40..ALT,ATEVA,GL,GLX,SE,SPV200606-201110

(J)

main90467-10161iACV40,GSV40..GLX,TOU200906-201110

SUN SHADE-WITH(POWER),(J)

main90467-T0021iACV40,GSV40..GLX,TOU200606-201110

(L)

main90467-T0021iACV40..GLX200606-200908

SUN SHADE-WITH POWER,(L)

main90467-T0021iACV40,GSV40..GLX,TOU200906-201110

SUN SHADE-WITH(POWER),(L)

64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10167iACV40,AHV40,GSV40..ALT,ATEVA,ATX,GL,GLX,HBD,SE,SPV,SPVS,TOU200606-201110

64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2

main64340-06090-B2iGSV40..GD200610-201110

GRAY,TRIM1#

main64340-06090-B2iGSV40..GD201010-201110

SUN SHADE-WITH(POWER),GRAY,TRIM1#

main64340-06090-B3iGSV40..PRD,PRE200606-201110

DK. GRAY PACKAGE TRAY,TRIM1#

main64340-06090-E2iACV40,GSV40..GD,PRD,PRE200906-201110

SUN SHADE-WITH(POWER),GREGE,TRIM4#

main64340-06090-E2iACV40,GSV40..GLX,TOU200606-201110

GREGE,TRIM4#

main64340-06090-E2iACV40,GSV40..GLX,TOU200606-200908

SUN SHADE-WITH POWER,GREGE,TRIM4#

main64340-06120-B1iGSV40..SPVZ200908-201110

DK. GRAY PACKAGE TRAY,TRIM1#

sub64340-06170

main64340-06160-B0iGSV40..GD200910-201010

GRAY,TRIM1#

sub64340-06090

main64340-06160-B0iACV40,GSV40..GLX,TOU200910-201010

SUN SHADE-WITH(POWER),GRAY,TRIM1#

sub64340-06090

main64340-06160-B1iGSV40..PRD,PRE200910-201105

DK. GRAY PACKAGE TRAY,TRIM1#

sub64340-06090

main64340-06160-E0iACV40,GSV40..GD200910-201010

SUN SHADE-WITH(POWER),GREGE,TRIM4#

sub64340-06090

main64340-06160-E0iGSV40..PRD,PRE200910-201105

GREGE,TRIM4#

sub64340-06090

main64340-06170-B1iGSV40..SPVZ200910-201010

DK. GRAY PACKAGE TRAY,TRIM1#

sub64340-06120

64350ASHADE ASSY, REAR WINDOW

main64350-06060iACV40..GD200906

SUN SHADE-WITH(POWER)

main64350-06060iACV40..GLX200606-200906

SUN SHADE-WITH POWER

main64350-06090iGSV40..TOU200908

SUN SHADE-WITH(POWER)

main64350-06090iGSV40..GD,PRE200610-200908

SUN SHADE-WITH POWER

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-06130-C0iACV40..ALT200606-201110

BLACK,TRIM1#

main64711-06130-C0iACV40..ALT200606-201110

BLACK,TRIM1#,4#

main64711-06140-C0iACV40,GSV40..ATX,SPV,SPVS,SPVZ200906-201110

BLACK,TRIM4#

main64711-06140-C0iACV40..SE200606-201110

BLACK,TRIM1#

main64711-06140-C0iGSV40..PRD,PRE200908-201110

BLACK,TRIM1#,4#

main64711-06160-C0iAHV40201001-201110

BLACK,TRIM1#,4#

main64711-06180-C0iGSV40..GCC200610-201110

BLACK,TRIM1#,4#

main64711-06190-C0iGSV40..ATX,SPVS,SPVZ200610-200908

BLACK,TRIM1#,4#

main64711-06190-C0iGSV40..ATX,SPVS,SPVZ200610-200908

BLACK,TRIM1#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-06120-C0iACV40..ALT,SPV200606-201110

BLACK,TRIM1#

main64719-06120-C0iACV40..ATEVA,GD,GL,GLX200606-201110

BLACK,TRIM1#,4#

main64719-06120-C0iACV40..SE200906-201110

BLACK,TRIM4#

main64719-06130-C0iGSV40..ATX,SPVS,SPVZ200610-201110

BLACK,TRIM1#

main64719-06130-C0iGSV40..GD,PRD,PRE,TOU200610-201110

BLACK,TRIM1#,4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0iACV40,GSV40200606-201110

BLACK

sub90467-08186

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-06120-C0iACV40..SE200606-201110

BLACK,TRIM1#,4#

main64721-06120-C0iACV40..SE200606-201110

BLACK,TRIM1#

main64721-06120-C0iACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU200906-201110

BLACK,TRIM4#

main64721-06140-C0iAHV40201001-201110

BLACK,TRIM1#,4#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0iACV40,AHV40,GSV40200606-201110

BLACK

sub90467-08186

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-06130-C0iACV40,GSV40..ALT,ATX,SE,SPV,SPVS,SPVZ200606-201110

BLACK,TRIM1#,4#

main64722-06130-C0iACV40,GSV40..ALT,ATX,SE,SPV,SPVS,SPVZ200606-201110

BLACK,TRIM1#

main64722-06130-C0iACV40..SE200906-201110

BLACK,TRIM4#

main64722-06150-C0iAHV40201001-201110

BLACK,TRIM1#,4#

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-YC030iGSV40200606-200908

sub64725-06020

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-06040iGSV40..GCC200606-200908

64770COVER ASSY, SPARE WHEEL

main64770-06200iACV40,GSV40200606-200908

main64770-06250iAHV40201001

7104

8117

9011906389

main90119-06389

9015950083

main90159-50083

9053025010

main90530-25010
