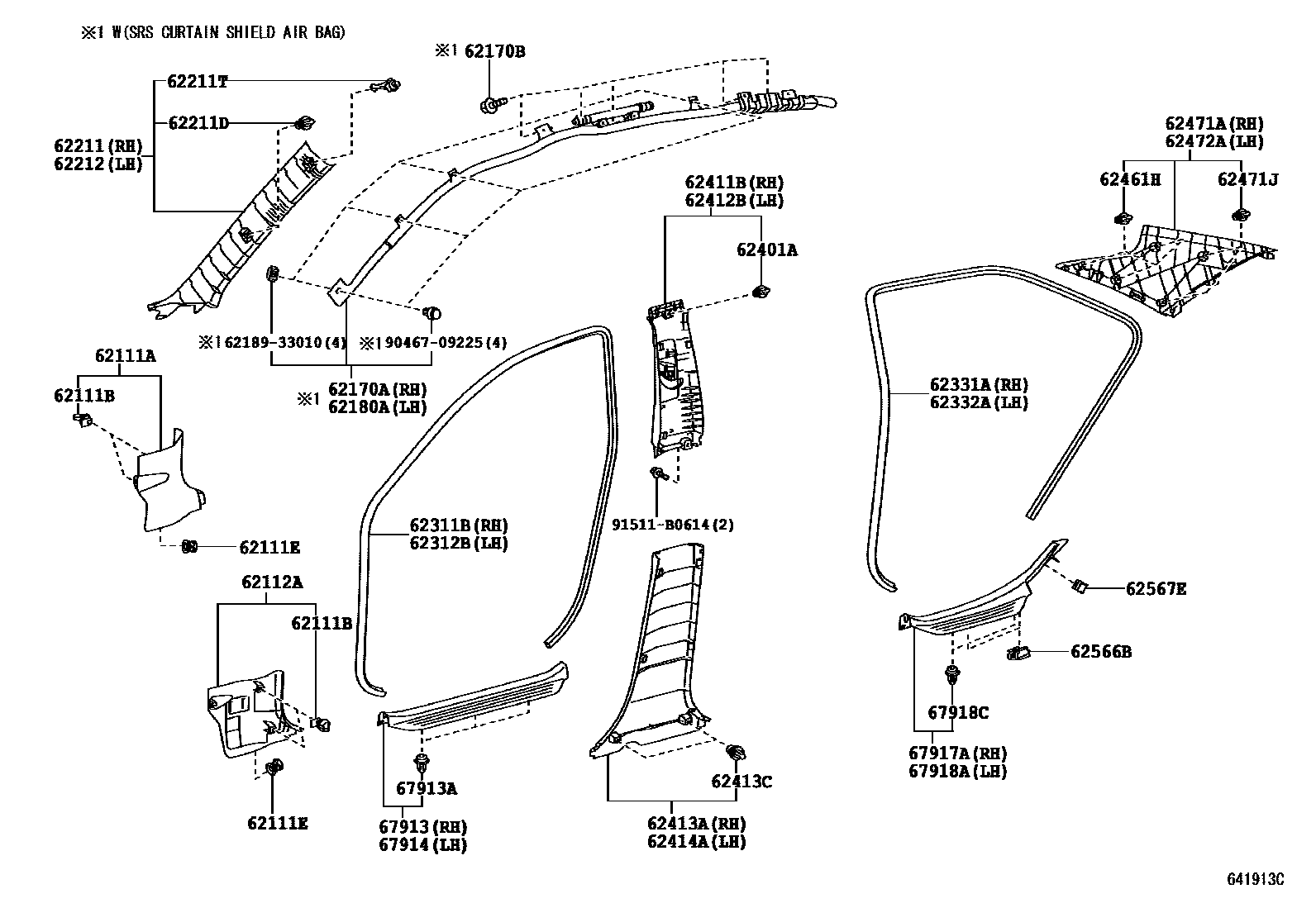

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-06080-B0iACV40..SE200606-200906

DK.GRAY,TRIM1#

main62101-06080-B1iACV40,GSV40..(GD,GL,GLX,TOU)..GCC200906-201110

GRAY,TRIM1#

main62101-06080-E0iACV40,GSV40..(GD,GL,GLX,TOU)..GCC200606-200908

GREGE,TRIM4#

main62101-06090-B0iACV40,GSV40..(ATEVA,GD,PRD,PRE,SPV,SPVS,SPVZ)..ARL; ACV40,GSV40..ALT,ATX200606-200908

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main62101-06090-B1iACV40,GSV40..ALT,ATX200606-200908

GRAY,TRIM13

main62101-06090-E0iACV40,GSV40..(ATEVA,GD,PRD,PRE)..ARL200606-200908

GREGE,TRIM4#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-09212×4iACV40200606-200906

62111ERETAINER, COWL SIDE TRIM

main90467-06147×2iGSV40200606-200908

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-06080-B0iACV40..SE200606-200906

DK.GRAY,TRIM1#

main62102-06080-B1iACV40,GSV40..(GD,GL,GLX,TOU)..GCC200606-200908

GRAY,TRIM1#

main62102-06080-E0iACV40,GSV40..(GD,GL,GLX,TOU)..GCC200606-200908

GREGE,TRIM4#

main62102-06090-B0iACV40,GSV40..(ATEVA,GD,PRD,PRE,SPV,SPVS,SPVZ)..ARL; ACV40,GSV40..ALT,ATX200606-200908

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main62102-06090-B1iGSV40..ATX200908-201110

GRAY,TRIM14

main62102-06090-E0iACV40,GSV40..(ATEVA,GD,PRD,PRE)..ARL200606-200908

GREGE,TRIM4#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-06032iGSV40..ARL; GSV40..GD200606-200908

SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN)

62170BBOLT, W/WASHER

main90119-06869×10iACV40..ALT; ACV40..ATEVA,GD,SPV200606-200906

SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN)

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-06032iACV40..ALT; ACV40..ATEVA,GD,SPV200606-200906

SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN)

62211GARNISH, FRONT PILLAR, RH

main62210-06110-B0iGSV40..GCC;ACV40..ALT,GL,GLX,SE200606-200706

GRAY,TRIM1#

main62210-06110-E0iACV40,GSV40..(GD,GL,GLX,TOU)..GCC200606-200706

GREGE,TRIM4#

main62210-06111-B0iACV40,GSV40..GL,GLX,TOU200906-201110

GRAY,TRIM1#

main62210-06111-E0iACV40,GSV40..GL,GLX,SE,TOU200906-201110

GREGE,TRIM4#

main62210-06120-B0iACV40..ALT; ACV40..ATEVA,GD,SPV200606-200611

GRAY,TRIM1#; SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM1#

main62210-06120-E0iACV40..ATEVA,GD200606-200611

GREGE,TRIM4#

main62210-06121-B0iGSV40..ATX,SPVS,SPVZ; GSV40..GD200701-200706

GRAY,TRIM1#; SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM1#

main62210-06121-E0iACV40..ATEVA,GD200612-200706

GREGE,TRIM4#

main62210-06122-B0iACV40..ALT; ACV40..ATEVA,GD,SPV200706-200908

GRAY,TRIM1#; SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM1#

main62210-06122-E0iACV40,AHV40,GSV40..ATEVA,GD,HBD200906-201110

GREGE,TRIM4#

main62210-06140-B0iGSV40..PRD,PRE200610-200612

GRAY,TRIM1#

main62210-06140-E0iGSV40..PRD,PRE200610-200612

GREGE,TRIM4#

main62210-06141-B0iGSV40..PRD,PRE200701-200706

GRAY,TRIM1#

main62210-06141-E0iGSV40..PRD,PRE200701-200706

GREGE,TRIM4#

main62210-06142-B0iGSV40..PRD,PRE200707-200908

GRAY,TRIM1#

main62210-06142-E0iGSV40..PRD,PRE200707-200908

GREGE,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161×2iACV40200606-200906

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-06010×2iGSV40..ATX,SPVS,SPVZ; GSV40..GD200707-200802

SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN)

main62217-33030×2iGSV40..ARL; GSV40..GD200701-200707

SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN)

main62217-33031×2iGSV40..ATX,SPVS,SPVZ200803-200908

main90950-08004×2iGSV40..PRD,PRE200606-200612

62212GARNISH, FRONT PILLAR, LH

main62220-06110-B0iGSV40..GCC;ACV40..ALT,GL,GLX,SE200606-200706

GRAY,TRIM1#

main62220-06110-E0iACV40,GSV40..(GD,GL,GLX,TOU)..GCC200606-200706

GREGE,TRIM4#

main62220-06111-B0iACV40,GSV40..GL,GLX,TOU200906-201110

GRAY,TRIM1#

main62220-06111-E0iACV40,GSV40..GL,GLX,SE,TOU200906-201110

GREGE,TRIM4#

main62220-06120-B0iACV40..ALT; ACV40..ATEVA,GD,SPV200606-200611

GRAY,TRIM1#; SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM1#

main62220-06120-E0iACV40..ATEVA,GD200606-200611

GREGE,TRIM4#

main62220-06121-B0iGSV40..ATX,SPVS,SPVZ; GSV40..GD200701-200706

GRAY,TRIM1#; SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM1#

main62220-06121-E0iACV40..ATEVA,GD200612-200706

GREGE,TRIM4#

main62220-06122-B0iACV40..ALT; ACV40..ATEVA,GD,SPV200706-200908

GRAY,TRIM1#; SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM1#

main62220-06122-E0iACV40,AHV40,GSV40..ATEVA,GD,HBD200906-201110

GREGE,TRIM4#

main62220-06140-B0iGSV40..PRD,PRE200610-200612

GRAY,TRIM1#

main62220-06140-E0iGSV40..PRD,PRE200610-200612

GREGE,TRIM4#

main62220-06141-B0iGSV40..PRD,PRE200701-200706

GRAY,TRIM1#

main62220-06141-E0iGSV40..PRD,PRE200701-200706

GREGE,TRIM4#

main62220-06142-B0iGSV40..PRD,PRE200908-201110

GRAY,TRIM1#

main62220-06142-E0iGSV40..PRD,PRE200908-201110

GREGE,TRIM4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-06110-B0iACV40,GSV40..ALT,ATX; ACV40..ATEVA,GD,SE,SPV;GSV40..PRD,PRE,SPVS,SPVZ200606-200908

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main62311-06110-B1iACV40,GSV40..(GD,GL,GLX,TOU)..GCC; ACV40,GSV40..ALT,ATX200606-200908

GRAY,TRIM1#; GRAY,TRIM13

main62311-06110-E0iACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU200606-200908

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-06110-B0iACV40,AHV40,GSV40..(ATEVA,GD,HBD,PRD,PRE,SPV,SPVS,SPVZ)..ARL; ACV40,GSV40..ALT,ATX200906-201110

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main62312-06110-B1iACV40,GSV40..(GD,GL,GLX,TOU)..GCC; ACV40..ALT200906-201110

GRAY,TRIM1#; GRAY,TRIM13,14

main62312-06110-E0iACV40,AHV40,GSV40..ATEVA,GD,GL,GLX,HBD,PRD,PRE,SE,TOU200906-201110

GREGE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-06100-B0iACV40,AHV40,GSV40..(ATEVA,GD,HBD,PRD,PRE,SPV,SPVS,SPVZ)..ARL; ACV40,GSV40..ALT,ATX200906-201110

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main62331-06100-B1iGSV40..ATX200908-201110

GRAY,TRIM14

main62331-06100-E0iACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU200606-200908

GREGE,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-06100-B0iACV40,GSV40..ALT,ATX; ACV40..ATEVA,GD,SE,SPV;GSV40..PRD,PRE,SPVS,SPVZ200606-200908

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main62332-06100-B1iGSV40..ATX200908-201110

GRAY,TRIM14

main62332-06100-E0iACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU200606-200908

GREGE,TRIM4#

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167×2iACV40200606-200906

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-06100-B1iACV40,GSV40..ALT,ATEVA,ATX,GD,GL,GLX,SE,SPV,SPVS,SPVZ,TOU200606-200908

GRAY,TRIM1#

main62410-06100-E1iACV40,AHV40,GSV40..ATEVA,GD,GL,GLX,HBD,SE,TOU200906-201110

GREGE,TRIM4#

main62410-06120-B2iGSV40..PRD,PRE200610-200908

GRAY,TRIM1#

main62410-06120-E1iGSV40..PRD,PRE200610-200908

GREGE,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-06100-B1iACV40,GSV40..ALT,ATEVA,ATX,GD,GL,GLX,SE,SPV,SPVS,SPVZ,TOU200606-200908

GRAY,TRIM1#

main62420-06100-E1iACV40,AHV40,GSV40..ATEVA,GD,GL,GLX,HBD,SE,TOU200906-201110

GREGE,TRIM4#

main62420-06120-B2iGSV40..PRD,PRE200610-200908

GRAY,TRIM1#

main62420-06120-E1iGSV40..PRD,PRE200610-200908

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-06090-B0iACV40,GSV40..ALT,ATX; ACV40..ATEVA,GD,SE,SPV;GSV40..PRD,PRE,SPVS,SPVZ200606-200908

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main62413-06090-B1iACV40,GSV40..(GD,GL,GLX,TOU)..GCC; ACV40,GSV40..ALT,ATX200606-200908

GRAY,TRIM1#; GRAY,TRIM13

main62413-06090-E0iACV40,AHV40,GSV40..ATEVA,GD,GL,GLX,HBD,PRD,PRE,SE,TOU200906-201110

GREGE,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×4iACV40200606-200906

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-06090-B0iACV40,GSV40..ALT,ATX; ACV40..ATEVA,GD,SE,SPV;GSV40..PRD,PRE,SPVS,SPVZ200606-200908

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main62414-06090-B1iACV40,GSV40..(GD,GL,GLX,TOU)..GCC; ACV40,GSV40..ALT,ATX200606-200908

GRAY,TRIM1#; GRAY,TRIM13

main62414-06090-E0iACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU200606-200908

GREGE,TRIM4#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-10188×6iACV40,AHV40,GSV40200906

62471AGARNISH, ROOF SIDE, INNER RH

main62470-06140-B0iGSV40..GCC;ACV40..ALT,GL,GLX,SE200606-200908

GRAY,TRIM1#

main62470-06140-E0iACV40,GSV40..GL,GLX,SE,TOU200906-201110

GREGE,TRIM4#

main62470-06150-B0iACV40,AHV40,GSV40..ALT,ATEVA,ATX,GD,HBD,SPV,SPVS,SPVZ200906-201110

GRAY,TRIM1#

main62470-06150-E0iACV40,AHV40,GSV40..ATEVA,GD,HBD200906-201110

GREGE,TRIM4#

main62470-06170-B0iGSV40..PRD,PRE200610-200908

GRAY,TRIM1#

main62470-06170-E0iGSV40..PRD,PRE200610-200908

GREGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161×4iACV40,AHV40,GSV40200906

62472AGARNISH, ROOF SIDE, INNER LH

main62480-06140-B0iGSV40..GCC;ACV40..ALT,GL,GLX,SE200606-200908

GRAY,TRIM1#

main62480-06140-E0iACV40,GSV40..GL,GLX,SE,TOU200906-201110

GREGE,TRIM4#

main62480-06150-B0iACV40,AHV40,GSV40..ALT,ATEVA,ATX,GD,HBD,SPV,SPVS,SPVZ200906-201110

GRAY,TRIM1#

main62480-06150-E0iACV40..ATEVA,GD200606-200906

GREGE,TRIM4#

main62480-06170-B0iGSV40..PRD,PRE200610-200908

GRAY,TRIM1#

main62480-06170-E0iGSV40..PRD,PRE200610-200908

GREGE,TRIM4#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-YC010×4iACV40,AHV40,GSV40200906

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-33040×2iACV40200606-200906

67913PLATE, FRONT DOOR SCUFF, RH

main67913-06090-B0iACV40,GSV40..ALT,ATX; GSV40..PRD;ACV40..ATEVA,GD,SE200606-200908

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main67913-06090-B1iACV40,GSV40..GL,GLX,TOU; ACV40..ALT200906-201110

GRAY,TRIM1#; GRAY,TRIM13,14

main67913-06090-E0iGSV40..PRD,TOU;ACV40..ATEVA,GD,GL,GLX200606-200908

GREGE,TRIM4#

main67913-06100-B0iACV40,GSV40..SPV,SPVS,SPVZ200906-201110

DK.GRAY,TRIM1#

main67913-06110-B0iGSV40..PRE200610-200908

DK.GRAY,TRIM1#

main67913-06110-B1iGSV40..GD200610-200908

GRAY,TRIM1#

main67913-06110-E0iGSV40..GD,PRE200908-201110

GREGE,TRIM4#

67913ACLIP(FOR SCUFF PLATE)

main90467-10161×6iACV40,AHV40,GSV40200906

67914PLATE, FRONT DOOR SCUFF, LH

main67914-06090-B0iACV40,GSV40..ALT,ATX; GSV40..PRD;ACV40..ATEVA,GD,SE200606-200908

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main67914-06090-B1iACV40,GSV40..ALT,ATX; ACV40,GSV40..GL,GLX,TOU200606-200908

GRAY,TRIM1#; GRAY,TRIM13

main67914-06090-E0iGSV40..PRD,TOU;ACV40,AHV40..ATEVA,GD,GL,GLX,HBD,SE200906-201110

GREGE,TRIM4#

main67914-06100-B0iACV40,GSV40..SPV,SPVS,SPVZ200606-200908

DK.GRAY,TRIM1#

main67914-06110-B0iGSV40..PRE200610-200908

DK.GRAY,TRIM1#

main67914-06110-B1iGSV40..GD200908-201110

GRAY,TRIM1#

main67914-06110-E0iGSV40..GD,PRE200610-200908

GREGE,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-06060-B0supersedes 67917-06070-B0iACV40,AHV40,GSV40..(ATEVA,GD,HBD,PRD,PRE,SPV,SPVS,SPVZ)..ARL; ACV40,GSV40..ALT,ATX200906-201110

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main67917-06060-B1iACV40,GSV40..GL,GLX,TOU; ACV40..ALT200906-201110

GRAY,TRIM1#; GRAY,TRIM13,14

main67917-06060-E0iGSV40..PRD,PRE,TOU;ACV40,AHV40..ATEVA,GD,GL,GLX,HBD,SE200906-201110

GREGE,TRIM4#

main67917-06080-B0iGSV40..PRE200610-200908

DK.GRAY,TRIM1#

main67917-06080-B1iGSV40..GD200610-200908

GRAY,TRIM1#

main67917-06080-E0iGSV40..GD,PRE200610-200908

GREGE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-06060-B0supersedes 67918-06070-B0iACV40,AHV40,GSV40..(ATEVA,GD,HBD,PRD,PRE,SPV,SPVS,SPVZ)..ARL; ACV40,GSV40..ALT,ATX200906-201110

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main67918-06060-B1iACV40,GSV40..ALT,ATX; ACV40,GSV40..GL,GLX,TOU200606-200908

GRAY,TRIM1#; GRAY,TRIM13

main67918-06060-E0iGSV40..PRD,PRE,TOU;ACV40,AHV40..ATEVA,GD,GL,GLX,HBD,SE200906-201110

GREGE,TRIM4#

main67918-06080-B0iGSV40..PRE200610-200908

DK.GRAY,TRIM1#

main67918-06080-B1iGSV40..GD200908-201110

GRAY,TRIM1#

main67918-06080-E0iGSV40..GD200908-201110

GREGE,TRIM4#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-10161×4iACV40200606-200906

6218933010PLATE, REAR FLOOR SIDE BOARD SET, REAR LH

main62189-33010

9046709225

main90467-09225

91511B0614

main91511-B0614

36 parts on this diagram · 1 diagram in section
