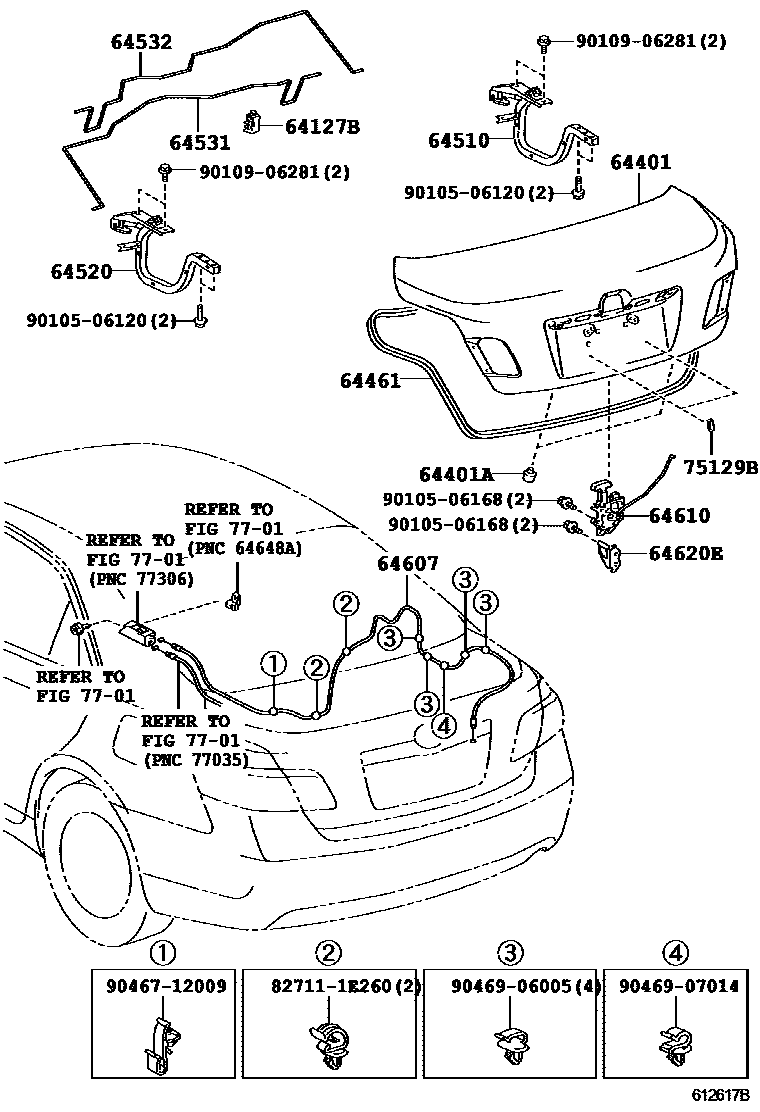

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1 0003 1 0004 1

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33060iGSV40200606-200908

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-06370iACV40..ALT,ATEVA,GL,GLX200606-200906

main64401-06380iACV40..ALT200606-200906

REAR SPOILER-WITH(LIP TYPE)

main64401-06390iGSV40..ATX,PRD,TOU200610-200908

main64401-06400iGSV40..GD,PRE200610-200908

main64401-06420iGSV40..ATX,TOU200610-200908

REAR SPOILER-WITH(WING TYPE)

main64401-06430iGSV40..GD200908

AURION TRD PACKAGE

main64401-06430iGSV40..SPVZ200610-200908

REAR SPOILER-WITH(WING TYPE)

main64401-06500iACV40,AHV40..GD,HBD200906

BACK MONITOR-WITH

main64401-06540iGSV40..ATX,PRD,TOU200908

main64401-06550iGSV40..SPVS200908

AURION TRD PACKAGE

main64401-06550iGSV40..SPVS200908

AURION TRD PACKAGE&BACK MONITOR-WITH

main64401-06550iGSV40..SPVS200908

REAR SPOILER-WITH(WING TYPE)

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09116iACV40200606-200908

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-06080iGSV40200606-200908

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-06060iACV40200606-200706

main64510-06061iACV40,AHV40200707-200906

main64510-06080iGSV40200610-200706

main64510-06081iGSV40200707-200908

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64510-06060iACV40200606-200706

main64510-06061iACV40,AHV40200707-200906

main64510-06080iGSV40200610-200706

main64510-06081iGSV40200707-200908

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-06120iACV40,AHV40200606-200906

main64531-06140iGSV40..SPVS,SPVZ200610-200908

REAR SPOILER-WITH(WING TYPE)

main64531-06150iGSV40..ATX,GD,PRD,PRE,TOU200610-201001

main64531-06200iGSV40..ATX,GD,PRD,PRE,TOU201001

2.4HV HI

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-06140iACV40200606-200906

main64532-06160iGSV40..ATX,GD,TOU200610-200908

REAR SPOILER-WITH(WING TYPE)

main64532-06170iGSV40..ATX,GD,PRD,PRE,TOU200610-201001

main64532-06220iAHV40201001

2.4HV HI

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-06080iGSV40..ARL200610-200908

main64607-06110iGSV40..GCC200610-200908

main64607-06120iACV40..ARL200606-200906

main64607-06130iACV40..GCC200606-200906

main64607-06180iAHV40201001

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-06020iGSV40200610-200908

main64600-33130iACV40..ALT,ATEVA,GD,GLX,SE,SPV200606-200906

WIRELESS DOOR LOCK-WITH

main64610-33090iACV40..GL200606-200906

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64621-33010iACV40200606-200908

75129BCUSHION, REAR LICENCE PLATE

main75129-YC010iACV40200606-200908

7701FUEL TANK & TUBE

→ Go to FIG 77-01

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9046712009

main90467-12009

9046906005

main90469-06005

9046907014

main90469-07014

20 parts on this diagram · 4 diagrams in section
