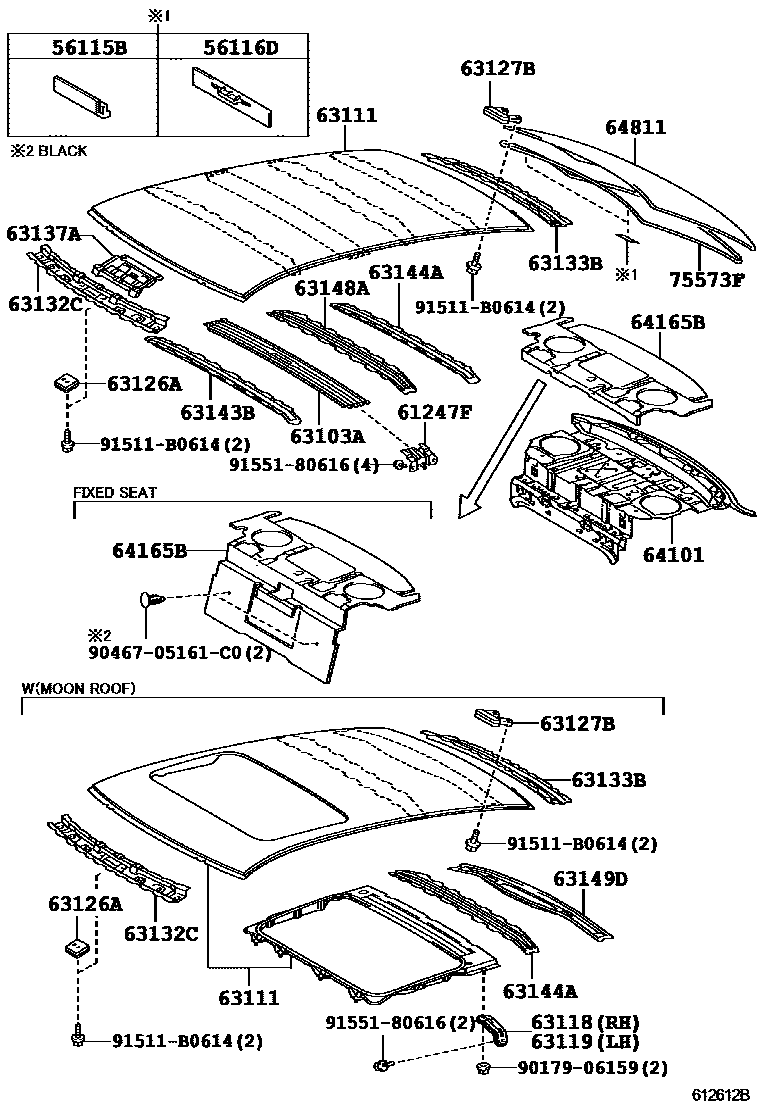

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1W(MOON ROOF)

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iGSV40200606-200908

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iACV40,AHV40,GSV40200906

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-33010×2iACV40,AHV40,GSV40..ALT,ATEVA,ATX,GD,GL,GLX,HBD,PRD,SE,SPV,SPVS,SPVZ,TOU200906

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-06060iACV40,AHV40,GSV40..ALT,ATEVA,ATX,GD,GL,GLX,HBD,PRD,SE,SPV,SPVS,SPVZ,TOU200906

63111PANEL, ROOF

main63101-06901iGSV40..PRE200908

main63111-06360iACV40..ALT,ATEVA,GL,GLX,SE,SPV200606-200906

63118SUPPORT, ROOF PANEL, RH

main63118-33030iACV40..ATEVA,GLX,SE,SPV; ACV40..GD200606-200906

SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)

63119SUPPORT, ROOF PANEL, LH

main63118-33030iACV40..ATEVA,GLX,SE,SPV; ACV40..GD200606-200906

SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-33020iACV40200606-200906

63127BDAMPER, BACK WINDOW UPPER FREME

main63127-33020iACV40200606-200906

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-33070iACV40,AHV40,GSV40200906

63133BFRAME, BACK WINDOW

main63133-06070iGSV40200606-200908

63137ABRACKET, DOME LAMP, NO.1

main63137-33090iGSV40..ATX,GD,PRD,SPVS,SPVZ,TOU200606-200908

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-33080iGSV40..ATX,GD,PRD,SPVS,SPVZ,TOU200606-200908

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-33110iGSV40..ATX,GD,PRD,SPVS,SPVZ,TOU200606-200908

main63144-33120iACV40..ATEVA,GLX,SE,SPV; ACV40..GD200606-200906

SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-33030iACV40..ALT,ATEVA,GL,GLX,SE,SPV200606-200906

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-33020iACV40..ATEVA,GLX,SE,SPV; ACV40..GD200606-200906

SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)

64101PANEL SUB-ASSY, UPPER BACK

main64101-06190iACV40200606-200906

main64101-06210iAHV40201001

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-06100iACV40,GSV40200906

main64165-06120iGSV40..ARL200610-200908

main64165-06180iAHV40201001

64811GLASS, BACK WINDOW

main64811-06220iACV40200606-200906

*EHT,T=3.5,GREEN

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-33020iACV40200606-200906

9017906159

main90179-06159

9046705161C0

main90467-05161C0

91511B0614

main91511-B0614

9155180616

main91551-80616

24 parts on this diagram · 2 diagrams in section
