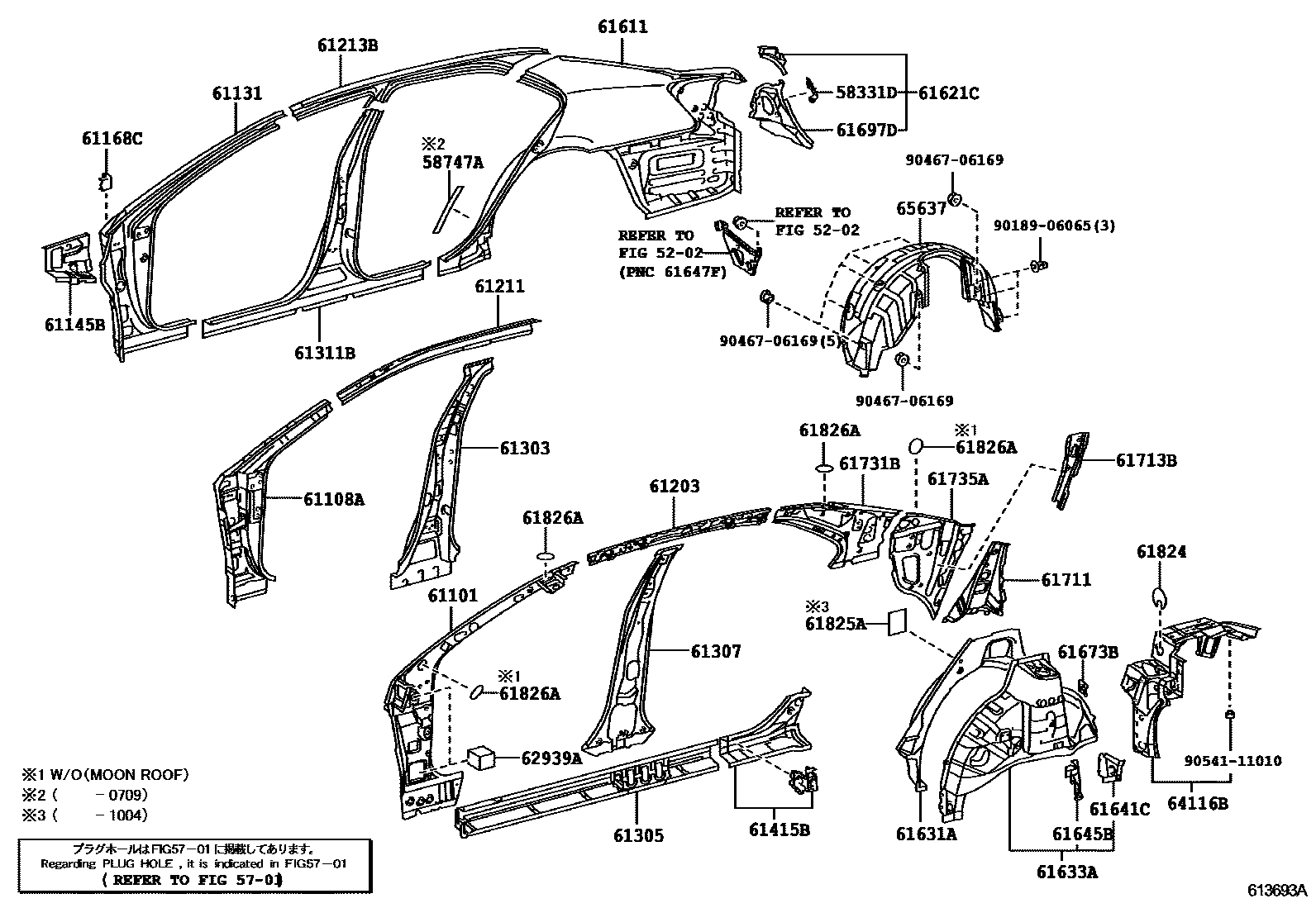

SIDE MEMBER

0001 1RH 0002 1LH

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

5701HOLE PLUG

→ Go to FIG 57-01

58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1

main58331-33030iACV40200606-200906

58747APROTECTOR, QUARTER PANEL, REAR RH

main58747-06060iACV40,GSV40200606-200709

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-06120iACV40,GSV40200606-200908

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-06080iACV40200606-200906

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-06090iACV40200606-200906

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-33050iACV40200606-200906

61168CBRACKET, NO.6 PILLAR OUTER

main61168-44010iACV40200606-200906

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-06110iACV40,GSV40200606-200908

61211RAIL, ROOF SIDE, OUTER RH

main61201-06050iACV40200606-200906

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-06070iACV40200606-200906

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-06901iACV40200606-200906

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-06060iACV40200606-200906

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-06070iACV40,GSV40200606-200908

61311BPILLAR, CENTER BODY, OUTER RH

main61311-06060iACV40200606-200906

61415BEXTENSION, ROCKER, OUTER RH

main61415-06902iACV40200606-200906

61611PANEL, QUARTER, RH

main61601-06160iACV40200606-200906

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-06907iACV40200606-200906

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-06090iACV40200606-200906

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-06904iACV40200606-200906

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-06060iACV40200606-200906

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-06070iACV40200606-200906

61673BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH

main61673-06030iACV40200606-200906

61697DHOUSING, QUARTER PANEL END, RH

main61697-06090iACV40200606-200906

61711PANEL, ROOF SIDE, OUTER RH

main61711-06080iACV40200606-200906

61713BREINFORCE, ROOF SIDE, OUTER RH

main61713-33020iACV40200606-200906

61731BPANEL, ROOF SIDE, INNER RH

main61731-06110iACV40200606-200906

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-06080iACV40200606-200906

61824PLATE, NOISE CONTROL, NO.1

main61824-33020×2iACV40200606-200906

61825APLATE, NOISE CONTROL, NO.2

main61826-YC010×2iACV40200606-200906

61826APLATE, NOISE CONTROL, NO.3

main61824-12040×4iACV40..ALT,ATEVA,GL,GLX,SE,SPV; ACV40..ATEVA,GLX,SE,SPV; ACV40..GD200606-200906

SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)

main61824-12050×4iACV40,AHV40,GSV40..ALT,ATEVA,ATX,GD,GL,GLX,HBD,PRD,SE,SPV,SPVS,SPVZ,TOU; ACV40,AHV40,GSV40..ATEVA,GD,GLX,HBD,PRD,SE,SPV,SPVS,SPVZ,TOU; GSV40..PRE201005

MOON ROOF-WITH

62939ASILENCER, QUARTER VENT

main62939-32030×4iACV40200606-200906

64116BREINFORCEMENT, UPPER BACK, RH

main64201-06100iACV40200606-200906

65637LINER, REAR WHEEL HOUSE, RH

main65637-06040iACV40200606-200906

9018906065

main90189-06065

9046706169

main90467-06169

9054111010

main90541-11010

38 parts on this diagram · 2 diagrams in section
