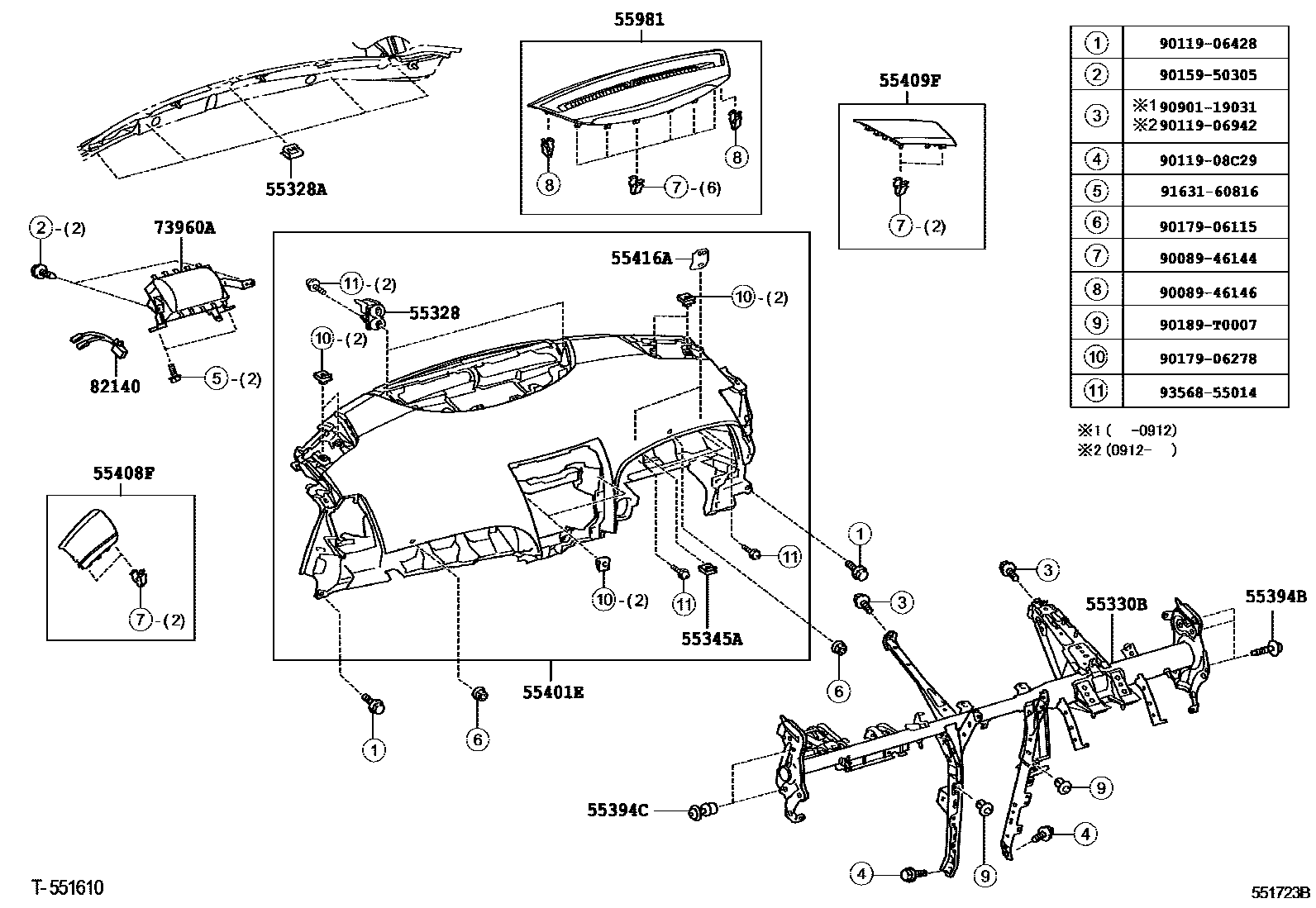

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1 0007 1DRIVER SIDE 0008 1CENTER 0009 1PASSENGER SIDE 0010 1 0011 1DRIVER SIDE 0012 1CENTER 0013 1PASSENGER SIDE

55328PIN, INSTRUMENT PANEL, NO.1

main55328-30140×2iACV40200606-200906

main55328-50160×2iACV40,AHV40,GSV40201011

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-30160×5iACV40,GSV40200606-200704

main55328-33120×5iACV40,GSV40200705-200710

main55328-48110×5iACV40,AHV40,GSV40201011

main55328-50170×5iACV40200711-200906

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-06150iACV40,GSV40..ARL200606-200803

main55330-06151iGSV40..ARL200804-200908

main55330-06160iACV40,GSV40..GCC200606-200803

main55330-06161iGSV40..GCC200804-200908

main55330-06280iAHV40201001

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060×2iACV40200606-200906

55394BBOLT, INSTRUMENT PANEL

main55394-30021×3iACV40200606-200906

55394CBOLT, INSTRUMENT PANEL

main55394-33041×2iACV40200606-200906

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-06100-B0iACV40..ALT; ACV40..ATEVA,GD,SPV200606-200807

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main55401-06100-B1iACV40..ALT200606-200807

MD.GRAY,TRIM13

main55401-06100-E0iACV40..ATEVA,GD200606-200807

ASH BROWN,TRIM4#

main55401-06101-B0iACV40..ALT,SPV; ACV40..ATEVA,GD200906-201011

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main55401-06101-B1iACV40..ALT200808-200906

MD.GRAY,TRIM13

main55401-06101-E0iACV40..ATEVA,GD200808-200906

ASH BROWN,TRIM4#

main55401-06102-B0iACV40..ALT,SPV; ACV40..ATEVA,GD201011-201110

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main55401-06110-B0iACV40..SE200606-200807

DK.GRAY,TRIM1#

main55401-06110-B1iACV40,GSV40..(GD,GL,GLX,TOU)..GCC200606-200807

MD.GRAY,TRIM1#

main55401-06110-E0iACV40,GSV40..(GD,GL,GLX,TOU)..GCC200606-200807

ASH BROWN,TRIM4#

main55401-06111-B0iACV40..SE200808-200906

DK.GRAY,TRIM1#

main55401-06111-B1iGSV40..GCC200808-200908

MD.GRAY,TRIM1#

main55401-06111-E0iACV40..GL,GLX200808-200906

ASH BROWN,TRIM4#

main55401-06112-B0iACV40..SE; GSV40..TOU201011-201110

DK.GRAY,TRIM4#; DK.GRAY,TRIM41

main55401-06112-B1iACV40,GSV40..(GD,GL,GLX)..GCC201011-201110

MD.GRAY,TRIM1#

main55401-06112-E0iACV40,GSV40..(GD,GL,GLX)..GCC; GSV40..TOU201011-201110

ASH BROWN,TRIM4#; ASH BROWN,TRIM40

main55401-06150-B0iGSV40..ATX; GSV40..PRD,PRE,SPVS,SPVZ200610-200808

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main55401-06150-B1iGSV40..ATX200610-200808

MD.GRAY,TRIM13

main55401-06150-E0iGSV40..PRD,PRE200610-200808

ASH BROWN,TRIM4#

main55401-06151-B0iGSV40..ATX,SPVS,SPVZ; GSV40..PRD,PRE200908-201011

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main55401-06151-B1iGSV40..ATX200809-200908

MD.GRAY,TRIM13

main55401-06151-E0iGSV40..PRD,PRE200809-200908

ASH BROWN,TRIM4#

main55401-06152-B0iGSV40..ATX,SPVS,SPVZ; GSV40..PRD,PRE201011-201110

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main55401-06240-B0iAHV40201001-201011

DK.GRAY,TRIM1#,4#

main55401-06241-B0iAHV40201011-201110

DK.GRAY,TRIM1#,4#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-06030-B0iACV40,GSV40..ATX,SPV,SPVS,SPVZ; ACV40..ALT; ACV40..ATEVA,GD; ACV40..SE200906-201110

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,41; DK.GRAY,TRIM14,15; DK.GRAY,TRIM4#

main55472-06030-B1iACV40,GSV40..(GD,GL,GLX,TOU)..GCC; ACV40..ALT200906-201110

MD.GRAY,TRIM1#; MD.GRAY,TRIM13

main55472-06030-E0iGSV40..GD,PRD,PRE,TOU200606-200908

ASH BROWN,TRIM4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-06030-B0iAHV40,GSV40..HBD,PRD,PRE; GSV40..TOU200908-201110

DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM41

main55473-06030-B1iACV40..ALT; ACV40..GL,GLX200606-200906

MD.GRAY,TRIM1#; MD.GRAY,TRIM13

main55473-06030-E0iACV40,GSV40..(GD,GL,GLX)..GCC; GSV40..TOU;ACV40..ATEVA,GD200906-201110

ASH BROWN,TRIM4#; ASH BROWN,TRIM40

55416ARETAINER, METER HOOD, NO.1

main55416-30140×2iACV40,AHV40,GSV40200906

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-06050-B0iACV40..ALT; ACV40..ATEVA,GD,SE,SPV200606-200906

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main55981-06050-B1iACV40,GSV40..(GD,GL,GLX,TOU)..GCC; ACV40..ALT200906-201110

MD.GRAY,TRIM1#; MD.GRAY,TRIM13

main55981-06050-E0iACV40,GSV40..(GD,GL,GLX)..GCC; GSV40..TOU;ACV40..ATEVA,GD200906-201110

ASH BROWN,TRIM4#; ASH BROWN,TRIM40

main55981-06080-B0iGSV40..ATX; GSV40..PRD,PRE,SPVS,SPVZ200610-200908

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main55981-06080-B1iGSV40..ATX200610-200908

MD.GRAY,TRIM13

main55981-06080-E0iGSV40..PRD,PRE200610-200908

ASH BROWN,TRIM4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-06110iGSV40200606-200908

82140WIRE ASSY, INSTRUMENT PANEL

main82140-06020iGSV40200606-200908

9008946144

main90089-46144

9008946146

main90089-46146

9011906428

main90119-06428

9011906942

main90119-06942

9011908C29

main90119-08C29

9015950305

main90159-50305

9017906115

main90179-06115

9017906278

main90179-06278

90189T0007

main90189-T0007

9090119031

main90901-19031

9163160816

main91631-60816

9356855014

main93568-55014

25 parts on this diagram · 13 diagrams in section
