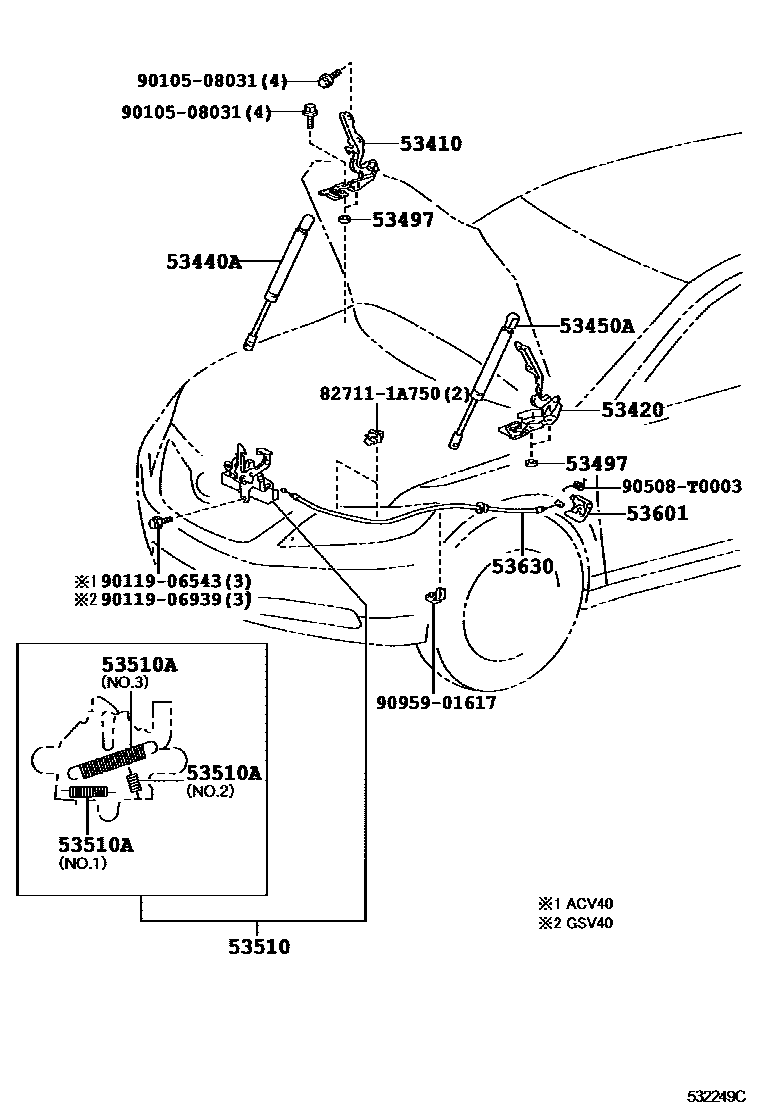

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-06160iACV40,AHV40,GSV40200906-201110

53420HINGE ASSY, HOOD, LH

main53420-06170iACV40,GSV40200606-200908

53440ASUPPORT ASSY, HOOD, RH

main53440-06060iACV40,AHV40200906

main53440-06080iGSV40200610-200908

53450ASUPPORT ASSY, HOOD, LH

main53450-06050iACV40200606-200906

main53450-06070iGSV40200610-200908

53497PAD, HOOD HINGE, NO.1

main53497-06040×4iACV40,AHV40,GSV40200906

53510LOCK ASSY, HOOD

main53510-06120iACV40..GCC200606-200906

main53510-06130iACV40,AHV40..ARL200906-201110

main53510-06140iGSV40..ARL200610-200908

main53510-06141iGSV40..ARL201012-201110

main53510-06150iGSV40..GCC200908-201110

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iACV40200606-200906

WD=0.9,CW=21,NO.1

main90506-12063iACV40,AHV40,GSV40200906-201110

WD=1.2,CW=8.5,NO.2

main90506-18067iGSV40200606-200908

WD=1.8,CW=13,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-YC020-B1iACV40,GSV40..(ATEVA,GD,PRD,PRE,SPV,SPVS,SPVZ)..ARL; ACV40,GSV40..ALT,ATX200606-200908

DK.GRAY,TRIM1#; DK.GRAY,TRIM15

main53611-YC020-B3iACV40,GSV40..ALT,ATX200606-200908

GRAY,TRIM13

main53611-YC020-E2iACV40,AHV40,GSV40..(ATEVA,GD,HBD,PRD,PRE)..ARL200906-201110

GREGE,TRIM4#

main53611-YC030-B1iACV40..SE200606-200906

DK.GRAY,TRIM1#

main53611-YC030-B3iACV40,GSV40..(GD,GL,GLX,TOU)..GCC200906-201110

GRAY,TRIM1#

main53611-YC030-E2iACV40,GSV40..GCC200906-201110

GREGE,TRIM4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-06110iGSV40200606-200908

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9010508031

main90105-08031

9011906543

main90119-06543

9011906939

main90119-06939

90508T0003

main90508-T0003

9095901617

main90959-01617

15 parts on this diagram · 2 diagrams in section
