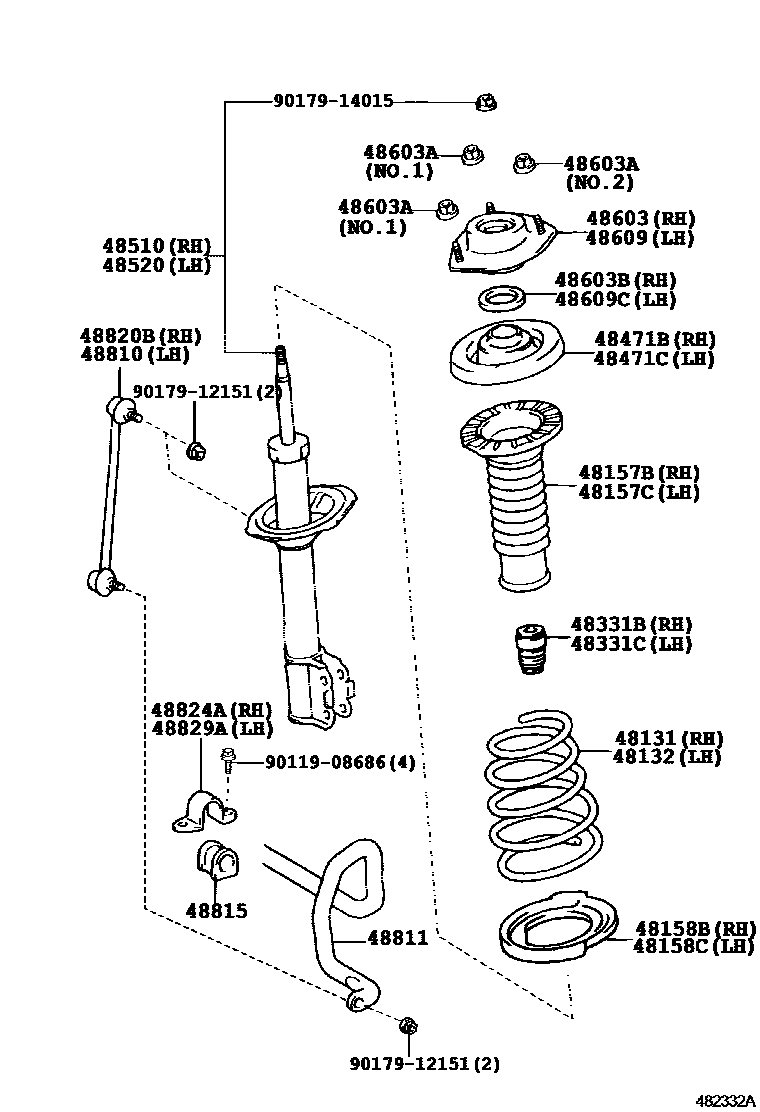

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-06B10iACV40..ALT,ATEVA,GD,GL,GLX200606-200906

sub48131-06A20

main48131-06B20iACV40..SE,SPV200906

main48131-06B30iGSV40..ATX,GD,PRD,PRE,TOU200610-200908

sub48131-06A30

main48131-06B40iGSV40..SPVS,SPVZ200610-200908

main48131-06C40iAHV40201001

sub48131-06C20

main48131-06B50iACV40..ATEVA200606-200906

IRAN SPEC

sub48131-06A41

main48131-06B60iGSV40..PRD200908

IRAN SPEC

sub48131-06A51

48132SPRING, FRONT COIL, LH

main48131-06B10iACV40..ALT,ATEVA,GD,GL,GLX200906

sub48131-06A20

main48131-06B20iACV40..SE,SPV200606-200906

main48131-06B30iGSV40..ATX,GD,PRD,PRE,TOU200610-200908

sub48131-06A30

main48131-06B40iGSV40..SPVS,SPVZ200610-200908

main48131-06C40iAHV40201001

sub48131-06C20

main48131-06B50iACV40..ATEVA200606-200906

IRAN SPEC

sub48131-06A41

main48131-06B60iGSV40..PRD200908

IRAN SPEC

sub48131-06A51

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-06090iGSV40200606-200908

sub48157-06050

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-06090iACV40,AHV40,GSV40200906

sub48157-06050

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-06060iGSV40200606-200908

sub48158-33030

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-06060iACV40200606-200906

sub48158-33030

48331BBUMPER, FRONT SPRING, RH

main48331-33032iACV40200606-200906

48331CBUMPER, FRONT SPRING, LH

main48331-33032iACV40200606-200906

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-06020iACV40200606-200906

sub48471-41010

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-06020iACV40200606-200906

sub48471-41010

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09N90iACV40..ALT,ATEVA,GD,GL,GLX200606-200703

MARK 48510-06450

main48510-09N91iACV40..ALT,ATEVA,GD,GL,GLX200906

MARK 48510-06451

main48510-09P30iGSV40..ATX,GD,PRD,PRE,TOU200908

MARK 48510-06460

main48510-09Q00iACV40..SE,SPV200606-200906

MARK 48510-06500

main48510-09Q10iGSV40..SPVS,SPVZ200610-200908

MARK 48510-06520

main48510-09X30iAHV40201001

MARK 48510-06580

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09G40iACV40..ALT,ATEVA,GD,GL,GLX200606-200703

MARK 48520-06450

main48520-09G41iACV40..ALT,ATEVA,GD,GL,GLX200906

MARK 48520-06451

main48520-09G80iGSV40..ATX,GD,PRD,PRE,TOU200908

MARK 48520-06460

main48520-09J50iACV40..SE,SPV200606-200906

MARK 48520-06500

main48520-09J60iGSV40..SPVS,SPVZ200908

MARK 48520-06520

main48520-09Q30iAHV40201001

MARK 48520-06580

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-06150iAHV40,GSV40..ATX,GD,HBD,PRD,PRE,TOU200908

sub48609-06140

main48609-06160iGSV40..SPVS,SPVZ200606-200908

main48609-06210iACV40..ALT,ATEVA,GD,GL,GLX200906

sub48609-06220

sub48609-33210

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10005×4iACV40200606-200906

NO.1

main90178-10017×2iACV40200606-200906

NO.2

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90369-T0006iACV40200606-200906

sub90903-63014

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06150iGSV40..ATX,GD,PRD,PRE,TOU200610-200908

sub48609-06140

main48609-06160iACV40..SE,SPV200606-200906

main48609-06210iACV40..ALT,ATEVA,GD,GL,GLX200606-200906

sub48609-06220

sub48609-33210

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90369-T0006iACV40200606-200906

sub90903-63014

48810LINK ASSY, FRONT STABILIZER, LH

main48820-33070iACV40200606-200906

48811BAR, STABILIZER, FRONT

main48811-06180iGSV40..ATX,GD,PRD,PRE,TOU200606-200908

main48811-06230iGSV40..SPVS,SPVZ200606-200908

main48811-33160iAHV40201001

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-06170×2iACV40..ALT,ATEVA,GD,GL,GLX200606-200906

sub48815-06111

main48815-06180×2iACV40..SE,SPV200606-200906

sub48815-06140

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-33070iACV40200606-200906

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-06030iACV40200606-200906

sub48824-26210

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-06030iGSV40200606-200908

sub48824-26210

9011908686

main90119-08686

9017912151

main90179-12151

9017914015

main90179-14015

26 parts on this diagram · 1 diagram in section
