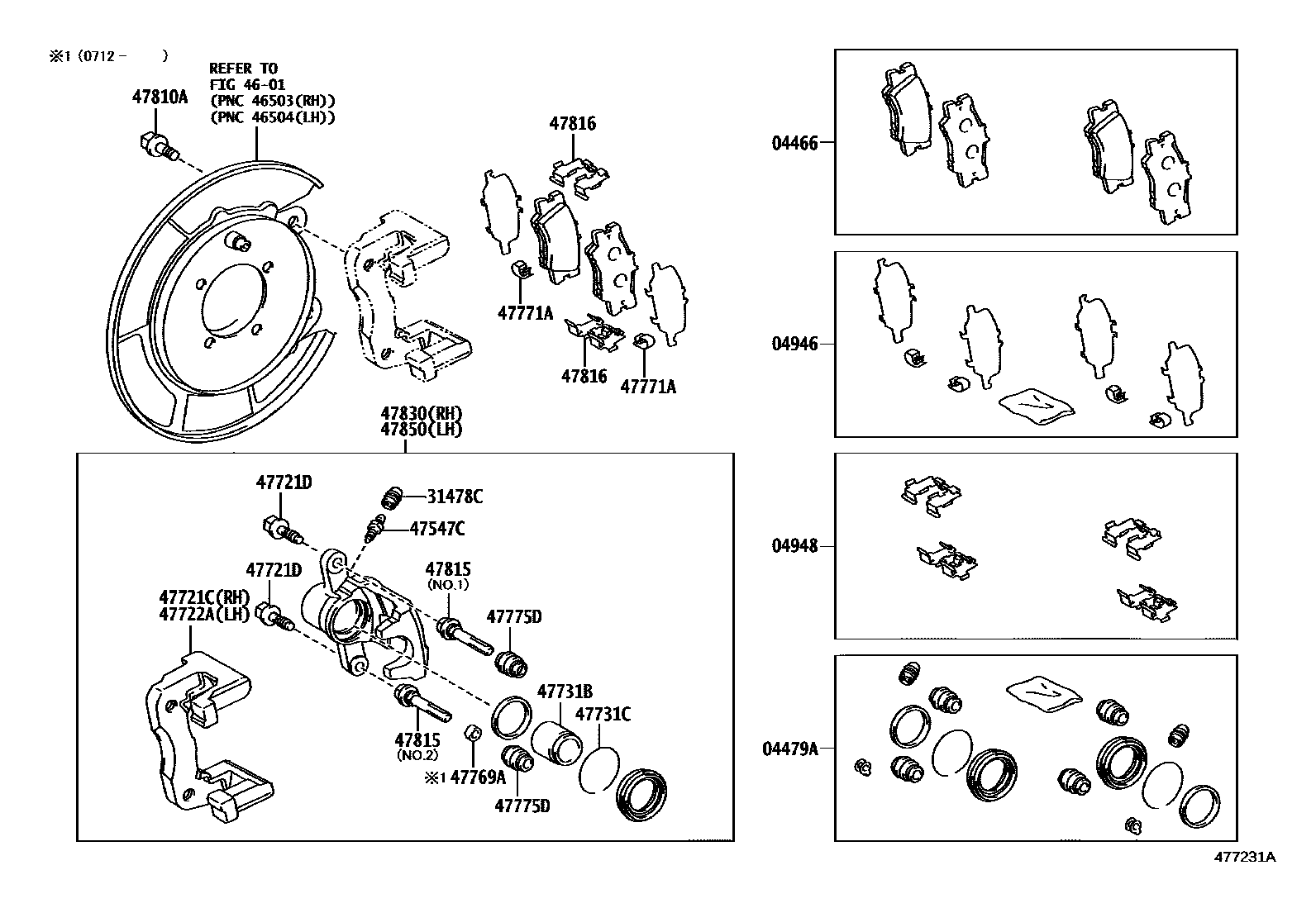

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
MARK NBK D6234
MARK B746-1160
MARK B746-1160,PBR
MARK NBK D6234
MARK NBK D6247
MARK NBK D6247,ADVICS
04479ACYLINDER KIT, DISC BRAKE, REAR
PBR
ADVICS
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04948FITTING KIT, DISC BRAKE, REAR
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
(L),ADVICS
(J),ADVICS
PBR
4601PARKING BRAKE & CABLE
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
PBR
ADVICS
47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH
PBR
(L),ADVICS
(J),ADVICS
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
*8-1.00PX23-15,(L)
*8-1.00PX23-15
*8-1.00PX23-15,(J)
47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH
PBR
(L),ADVICS
(J),ADVICS
47731BPISTON, REAR DISC BRAKE
PBR
(L),ADVICS
(J),ADVICS
47731CRING, SET(FOR REAR DISC BRAKE PISTON)
(L)
(J)
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
(L)
(J)
47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
47810ABOLT, HEXAGON(FOR REAR CALIPER)
ADVICS
PBR
47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
NO.1
NO.2
NO.1
NO.2
NO.1
NO.1 & NO.2
NO.2
47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47830CYLINDER ASSY, DISC BRAKE, REAR RH
PBR
(L),ADVICS
(J),ADVICS
47850CYLINDER ASSY, DISC BRAKE, REAR LH
PBR
(L),ADVICS
(J),ADVICS
20 parts on this diagram · 2 diagrams in section
