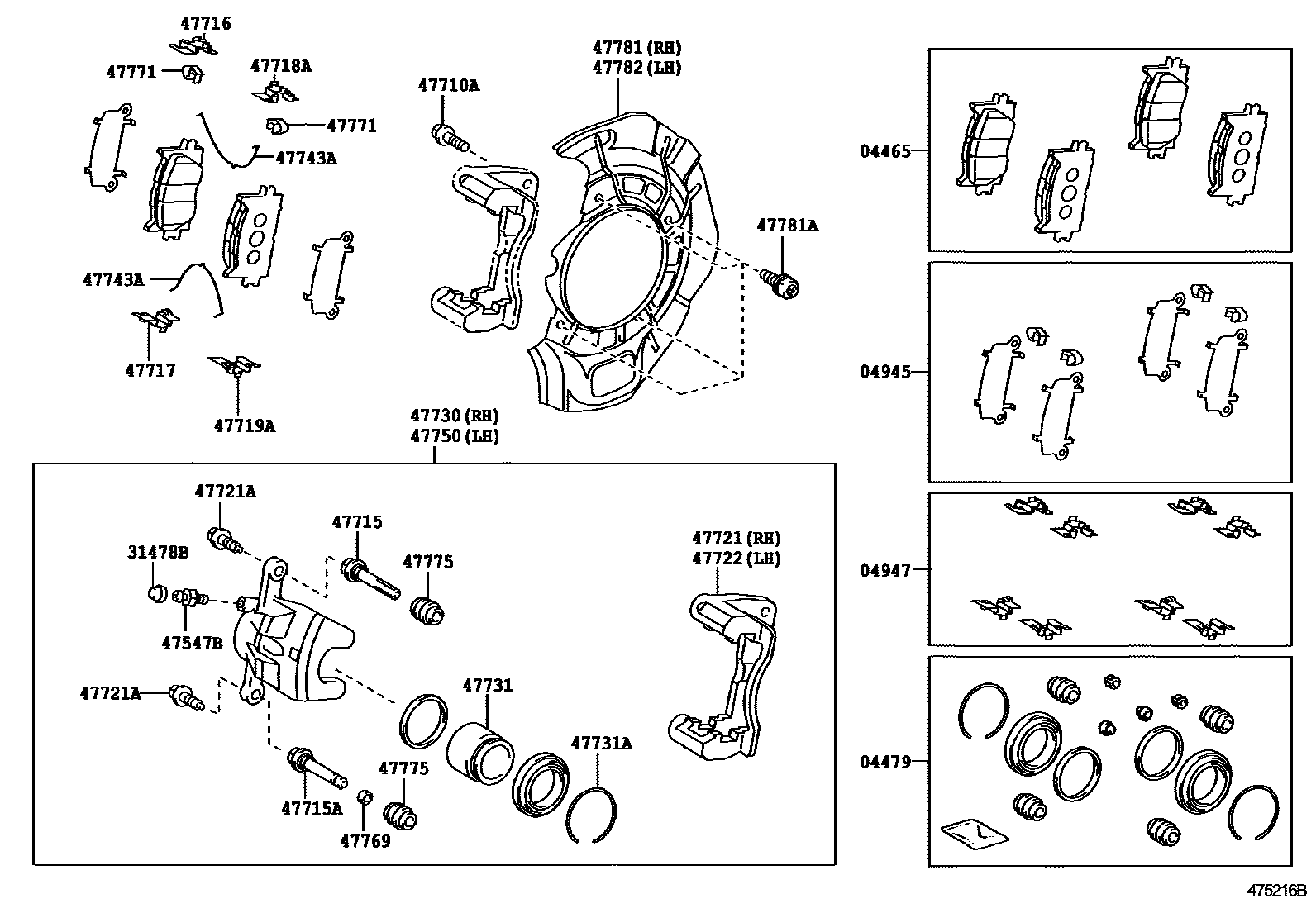

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0006 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-06080iACV40,GSV40..GCC200606-200904

MARK NBK PN562H

sub04465-06110

main04465-06090iACV40..ARL200606-201110

MARK B746-1191

main04465-06110iACV40,GSV40200904-201110

MARK NBK PN562H

main04465-06110iACV40,GSV40201107-201110

MARK NBK PN562H,(L)

main04465-33450iAHV40201001-201107

MARK NBK PN562H

main04465-33450iACV40,GSV40201107-201110

MARK NBK PN562H,(J)

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-06200iACV40,GSV40201107-201110

PBR

main04478-06200iACV40..ARL200606-201107

main04478-06210iACV40..GCC200606-200908

sub04478-33140

main04478-06251iACV40,GSV40201107-201109

(L),ADVICS

sub04478-06252

main04478-06252iACV40,GSV40201109-201110

(L),ADVICS

sub04478-06253

main04478-0D160iAHV40201107-201109

sub04478-0D161

main04478-0D161iAHV40201109-201110

sub04478-0D162

main04478-33130iACV40,GSV40201107-201110

(J),ADVICS

main04478-33140iAHV40201001-201107

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-06110iAHV40201107-201110

(L),ADVICS

main04945-06120iGSV40..GCC200606-200908

sub04945-33260

main04945-33260iACV40,GSV40201107-201110

(J),ADVICS

main04945-33260iAHV40201001-201107

04947FITTING KIT, DISC BRAKE, FRONT

main04947-06070iACV40,GSV40201107-201110

(L),ADVICS

main04947-06090iGSV40..GCC200606-200908

sub04947-33240

main04947-33240iAHV40201001-201107

main04947-33240iACV40,GSV40201107-201110

(J),ADVICS

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040iAHV40201107-201110

(L),ADVICS

main31478-30010iACV40..GCC200606-201107

main31478-30010iACV40,GSV40201107-201110

(J),ADVICS

main47548-06010iACV40,GSV40200906-201110

PBR

main47548-06010iACV40..ARL200606-200908

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-06020iACV40..ARL200606-200908

main47547-06020iACV40,GSV40200906-201110

PBR

main47547-0D030iACV40,GSV40201109-201110

(L),ADVICS

main47547-20010iACV40,GSV40201107-201110

(J),ADVICS

main47547-20010iACV40,GSV40201107-201109

ADVICS

main47547-20010iAHV40201001-201109

main47547-8Y001iACV40..GCC200606-200908

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iACV40,GSV40200606-201110

*12-1.25PX29.5-23

47715PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-8Y002iACV40..GCC200606-200908

sub47715-52190

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-06120iACV40,GSV40200906-201110

PBR

main47715-06120iACV40..ARL200606-200908

main47715-52190iAHV40201001-201110

main47715-52190iACV40,GSV40201107-201110

ADVICS

main47715-8Y003iACV40..GCC200606-200908

sub47715-33340

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-06100iACV40..ARL200606-200908

main47716-06100iACV40,GSV40200906-201110

PBR

main47717-8Y001iACV40..GCC200606-200908

main47718-33340iAHV40201001-201107

main47718-33340iACV40,GSV40201107-201110

ADVICS

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-8Y002iACV40..GCC200606-200908

main47719-33340iAHV40201001-201110

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-8Y002iACV40..GCC200606-200908

main47718-33340iAHV40201001-201110

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-8Y001iACV40..GCC200606-200908

main47719-33340iACV40,GSV40201001-201110

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-06260iACV40,GSV40201107-201110

(L),ADVICS

main47721-33340iACV40,GSV40201107-201110

(J),ADVICS

main47721-33340iAHV40201001-201107

main47721-8Y001iACV40..ARL200606-200908

main47721-8Y001iACV40,GSV40200906-201110

PBR

main47721-8Y003iACV40..GCC200606-200908

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main47715-8Y004iACV40,GSV40200906-201110

main90016-AA603iAHV40201109-201110

*8-1.00PX23-15

main90016-AA603iACV40,GSV40201109-201110

*8-1.00PX23-15,(L)

main90105-08164iACV40,GSV40201001-201109

*8-1.00PX23-15

main90105-08164iACV40,GSV40201107-201110

*8-1.00PX23-15,(J)

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-8Y001iGSV40..ARL200606-200908

main47721-8Y001iACV40,GSV40200906-201110

PBR

main47722-06260iAHV40201107-201110

(L),ADVICS

main47722-33340iACV40,GSV40201107-201110

(J),ADVICS

main47722-33340iAHV40201001-201107

main47722-8Y001iGSV40..GCC200606-200908

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-06230iACV40..ARL200606-200908

main47730-06230iACV40,GSV40200906-201110

PBR

main47730-06240iGSV40..GCC200606-200908

sub47730-33340

main47730-06260iACV40,GSV40201107-201110

(L),ADVICS

main47730-33340iAHV40201001-201107

main47730-33340iACV40,GSV40201107-201110

(J),ADVICS

47731PISTON, FRONT DISC BRAKE

main47731-06260iAHV40201107-201110

(L),ADVICS

main47731-33340iAHV40201001-201107

main47731-33340iACV40,GSV40201107-201110

(J),ADVICS

main47731-8Y001iACV40..ARL200606-200908

main47731-8Y001iACV40,GSV40200906-201110

PBR

main47731-8Y003iACV40..GCC200606-200908

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76002iAHV40201001-201110

main90522-8Y001iACV40..GCC200606-200908

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-8Y001iGSV40..GCC200606-200908

sub47743-33340

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-06230iGSV40..ARL200606-200908

main47750-06230iACV40,GSV40200906-201110

PBR

main47750-06240iACV40..GCC200606-200908

sub47750-33340

main47750-06260iAHV40201107-201110

(L),ADVICS

main47750-33340iACV40,GSV40201107-201110

(J),ADVICS

main47750-33340iAHV40201001-201107

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iAHV40201001-201110

main47769-8Y001iACV40..GCC200606-200908

sub47769-50010

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-53060iACV40,GSV40201001-201110

main47771-8Y001iACV40..GCC200606-200908

sub47771-53060

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-06050iGSV40..ARL200606-200908

main47775-8Y001iGSV40..GCC200606-200908

sub47775-52190

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06080iACV40,GSV40200606-201110

sub47781-33040

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iACV40,GSV40200606-201110

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06080iACV40,GSV40200606-201110

sub47782-33040

27 parts on this diagram · 3 diagrams in section
