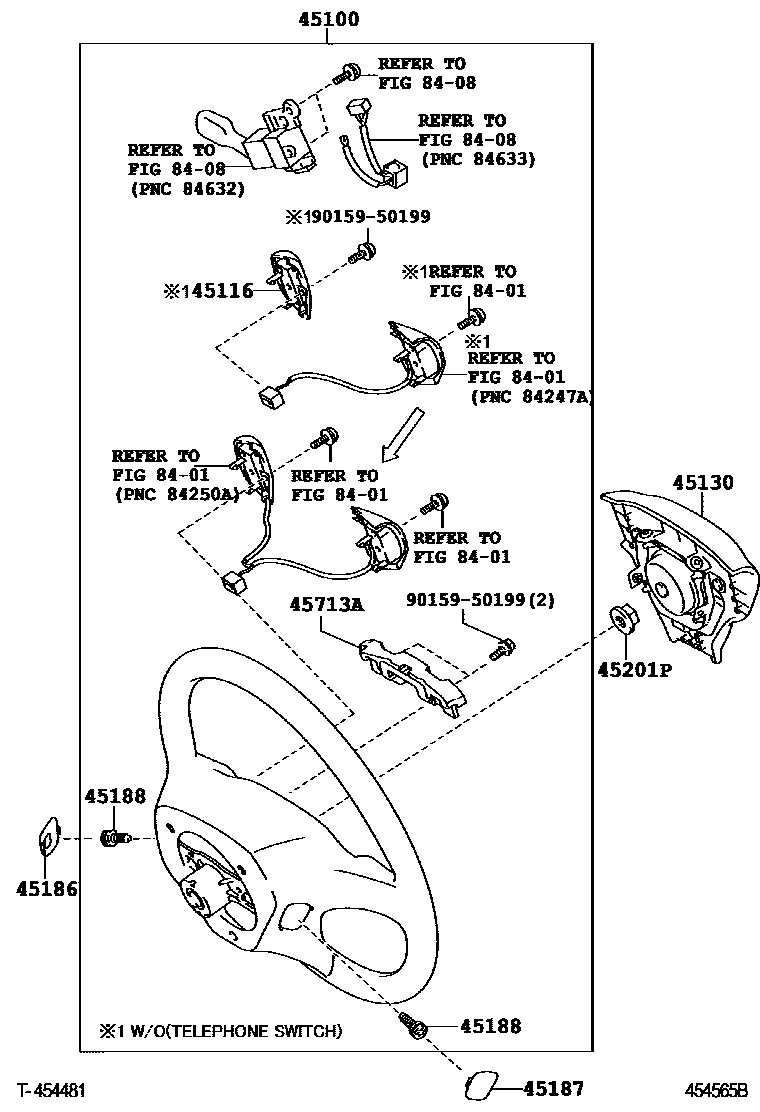

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,DK.GRAY,TRIM15
3-SPOKE,URETHANE,MD.GRAY,TRIM13
3-SPOKE,LEATHER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,NEW ZEALAND SPEC,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,NEW ZEALAND SPEC,ASH BROWN,TRIM4#
3-SPOKE,LEATHER,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#; 3-SPOKE,LEATHER,DK.GRAY,TRIM4#
4-SPOKE,LEATHER,ASH BROWN,TRIM4#
4-SPOKE,WOOD&LEATHER,DK.GRAY & BROWN,TRIM1#,4#
4-SPOKE,URETHANE,MD.GRAY,TRIM1#
3-SPOKE,LEATHER,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,AUDIO-6SPEAKER, DISPLAY AUDIO(WITH/CAMERA)&BACK MONITOR-WITH,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,AUDIO-C&A AVX PREPARATION 6SP,MD.GRAY,TRIM1#; 4-SPOKE,URETHANE,AUDIO-CD+6INDASH AM/FM UNI 6SPEAKER,MD.GRAY,TRIM1#; 4-SPOKE,URETHANE,MD.GRAY,TRIM13
4-SPOKE,URETHANE,AUDIO-C&A AVX PREPARATION 6SP,ASH BROWN,TRIM4#; 4-SPOKE,URETHANE,AUDIO-CD+6INDASH AM/FM UNI 6SPEAKER,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,LIMITED&AUDIO-6SPEAKER, DISPLAY AUDIO(WITH/CAMERA)&BACK MONITOR-WITH,DK.GRAY,TRIM1#
4-SPOKE,LEATHER,LIMITED,MD.GRAY,TRIM13
4-SPOKE,LEATHER,AUDIO-AVN,6SPEAKER,MD.GRAY,TRIM1#
4-SPOKE,LEATHER,AUDIO-AVN,6SPEAKER,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,LIMITED&AUDIO-CD,4SPEAKER,ASH BROWN,TRIM4#
4-SPOKE,URETHANE,AUDIO-6CD CHANGER, 6SPEAKER, BLUETOOTH,DK.GRAY,TRIM41; 4-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,AUDIO-6CD CHANGER, 6SPEAKER, BLUETOOTH,MD.GRAY,TRIM1#
4-SPOKE,URETHANE,AUDIO-6CD CHANGER, 6SPEAKER, BLUETOOTH,ASH BROWN,TRIM40
4-SPOKE,LEATHER,LIMITED&AUDIO-6CD CHANGER, 6SPEAKER, BLUETOOTH,DK.GRAY,TRIM1#
45116ORNAMENT, STEERING WHEEL, NO.1
AUDIO-6SPEAKER, DISPLAY AUDIO(WITH/CAMERA)&BACK MONITOR-WITH
45130BUTTON ASSY, HORN
main45130-06300-B0iACV40,AHV40..ATEVA,GD,HBD; ACV40,GSV40..ALT,SPV,SPVS,SPVZ; ACV40..SE200906-201110
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#
MD.GRAY,TRIM13
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#; DK.GRAY,TRIM15
MD.GRAY,TRIM13
ASH BROWN,TRIM4#
45186COVER, STEERING WHEEL, LOWER NO.2
main45186-28060-B0iACV40,AHV40..ATEVA,GD,HBD; ACV40,GSV40..ALT,SPV,SPVS,SPVZ; ACV40..SE200906-201110
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#
MD.GRAY,TRIM13
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM41
MD.GRAY,TRIM1#
ASH BROWN,TRIM4#
MD.GRAY,TRIM1#
ASH BROWN,TRIM4#
45187COVER, STEERING WHEEL, LOWER NO.3
DK.GRAY,TRIM1#; DK.GRAY,TRIM15
MD.GRAY,TRIM13
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM41
MD.GRAY,TRIM13
ASH BROWN,TRIM4#
45188SCREW, STEERING WHEEL PAD ATTACHING
L=18
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
8401SWITCH & RELAY & COMPUTER
8408CRUISE CONTROL (AUTO DRIVE)
9015950199
main90159-50199
11 parts on this diagram · 4 diagrams in section
