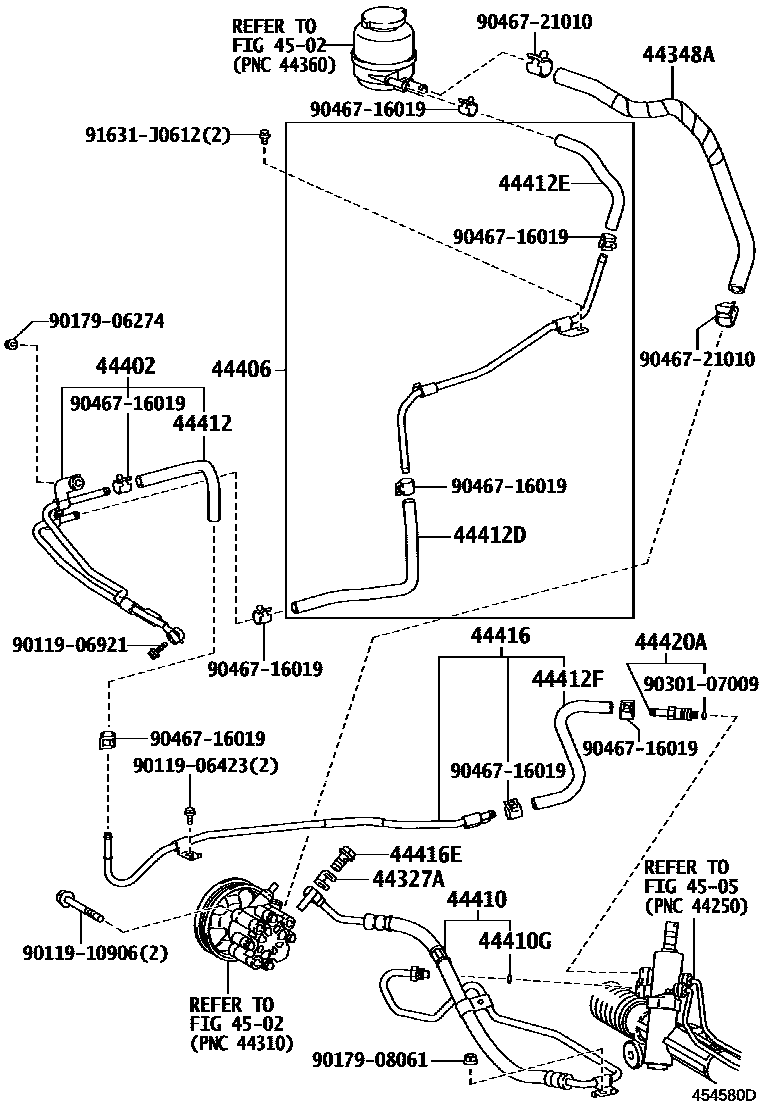

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iACV40,GSV40200906

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-33230iACV40..ARL200606-200908

main44348-33240iACV40..GCC200906

main44348-33250iGSV40200908

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-06090iACV40200606-200608

main44402-06091iACV40,GSV40200608-200903

main44402-06101iACV40,GSV40200904-200908

44406TUBE SUB-ASSY, RETURN

main44406-06180iACV40,GSV40200606-200903

main44406-06200iACV40,GSV40200906

44410TUBE ASSY, PRESSURE FEED

main44410-06250iACV40..GCC200606-200903

main44410-06260iACV40..ARL200606-200903

main44410-06270iGSV40..GCC200610-200903

main44410-06280iGSV40..ARL200610-200903

main44410-33182iACV40..GCC200905-200908

main44410-33201iACV40..ARL200904-200905

main44410-33202iACV40..ARL200906

main44410-33241iGSV40..GCC200904-200905

main44410-33242iGSV40..GCC200905-200908

main44410-33251iGSV40..ARL200904-200905

main44410-33252iGSV40..ARL200908

main44410-33270iACV40..GCC200904-200905

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009iACV40,GSV40..GCC; ACV40..ARL200606-200904

44412HOSE, RETURN

main44412-8Y006iACV40200606-200608

main44412-8Y013iACV40,GSV40200608-200904

44412DHOSE, RETURN, NO.1

main44412-8Y007iACV40,GSV40200606-200904

44412EHOSE, RETURN, NO.2

main44412-8Y008iACV40,GSV40200606-200904

44412FHOSE, RETURN, NO.3

main44412-8Y009iACV40..GCC200606-200904

main44412-8Y010iACV40..ARL200606-200904

main44412-8Y011iGSV40..GCC200610-200904

main44412-8Y012iGSV40..ARL200610-200904

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-06180iACV40..GCC200606-200608

main44416-06181iACV40..GCC200608-200903

main44416-06190iACV40..ARL200606-200608

main44416-06191iACV40..ARL200608-200903

main44416-06201iGSV40..GCC200610-200903

main44416-06211iGSV40..ARL200610-200903

main44416-33161iACV40..ARL200904-200908

main44416-33171iACV40..GCC200904-200908

main44416-33191iGSV40..GCC200908

main44416-33201iGSV40..ARL200904-200908

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iACV40,GSV40200606-200908

44420ATUBE ASSY, RETURN

main44420-06010iACV40..ARL200606-200903

main44420-06030iGSV40..ARL200610-200903

main44420-17010iACV40..ARL200904-200908

main44420-33020iGSV40..ARL200908

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011906423

main90119-06423

9011906921

main90119-06921

9011910906

main90119-10906

9017906274

main90179-06274

9017908061

main90179-08061

9030107009

main90301-07009

9046716019

main90467-16019

9046721010

main90467-21010

91631J0612

main91631-J0612

24 parts on this diagram · 8 diagrams in section
