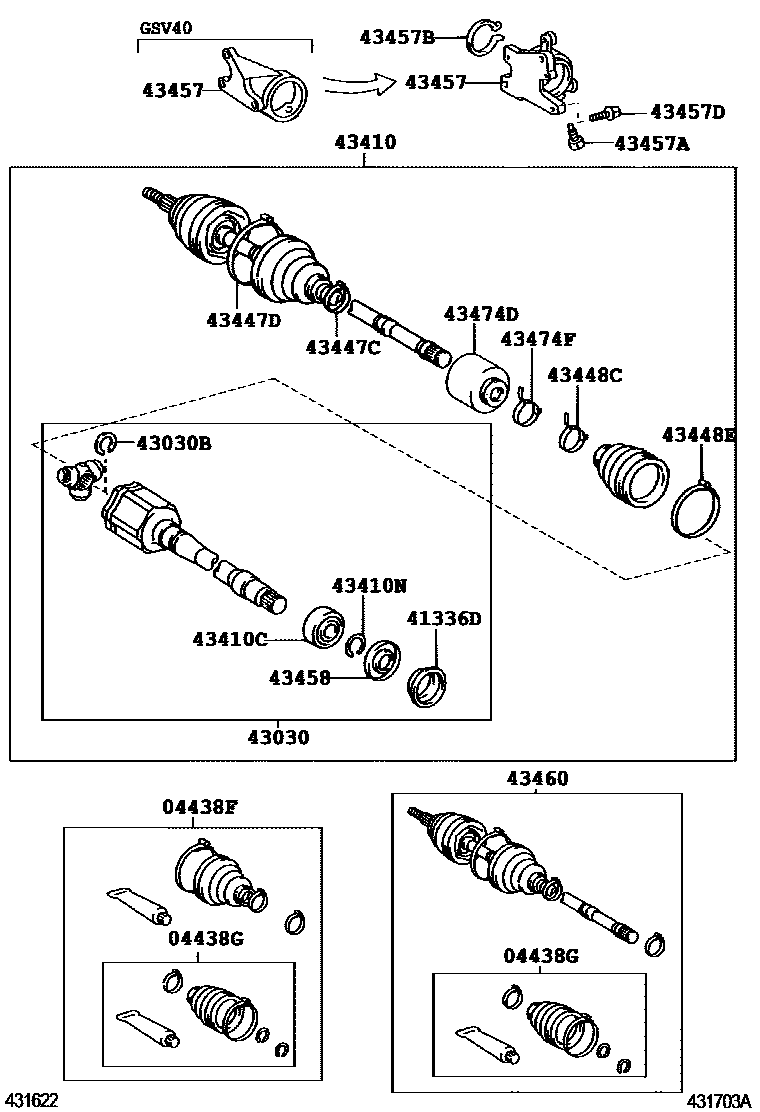

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-06360i200606-200906

main04427-06370i200908

main04427-06380i200606-200906

main04427-33030i201001

sub04427-33031

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-06170i200606-200906

main04437-06180i200908

main04437-33040i201001

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06070i200606-200906

main41336-12020i201001

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-09020i200606-200906

main43030-09030i200610-200908

main43030-33041i201001

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main43425-06020i200606-200906

main43425-06060i200610-200908

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06640i200908

sub43410-06A50

main43410-06650i200606-200906

sub43410-06590

main43410-06660i200906

sub43410-06680

main43410-33310i201001

sub43410-33311

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36200i200606-200906

sub90080-36133

main90363-41003i201001

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-06050i200606-200906

main90520-38015i201001

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06140i200906

main42345-06160i200606-200906

sub42345-04030

main42345-20040i201001

sub42345-42100

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06150i200606-200906

main42345-06170i200606-200906

sub42345-06080

main42345-06490i200610-200908

sub42345-06250

main42345-28020i201001

sub42345-42090

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06120i200606-200906

main42345-06190i200908

sub42345-06320

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06130i200606-200906

sub42345-07010

main42345-06460i200610-200908

main42345-12160i201001

43457BRACKET, DRIVE SHAFT BEARING

main43457-06010i200606-200906

main43457-06040i200908

sub43457-33030

main43457-33040i201001

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461i200606-200906

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002i200606-200906

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3i200606-200906

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06030i200906

main43458-12010i201001

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09R00i200610-200908

main43460-39285i201001

sub43460-39286

main43470-09S20i200906

main43470-09S30i200906

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-06160i200606-200906

main43474-48020i201001

sub43474-48080

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06110i200606-200906

main42345-42010i201001

TYPE A:REFER ILLUST.

main90949-01559i201001

TYPE B:REFER ILLUST.
