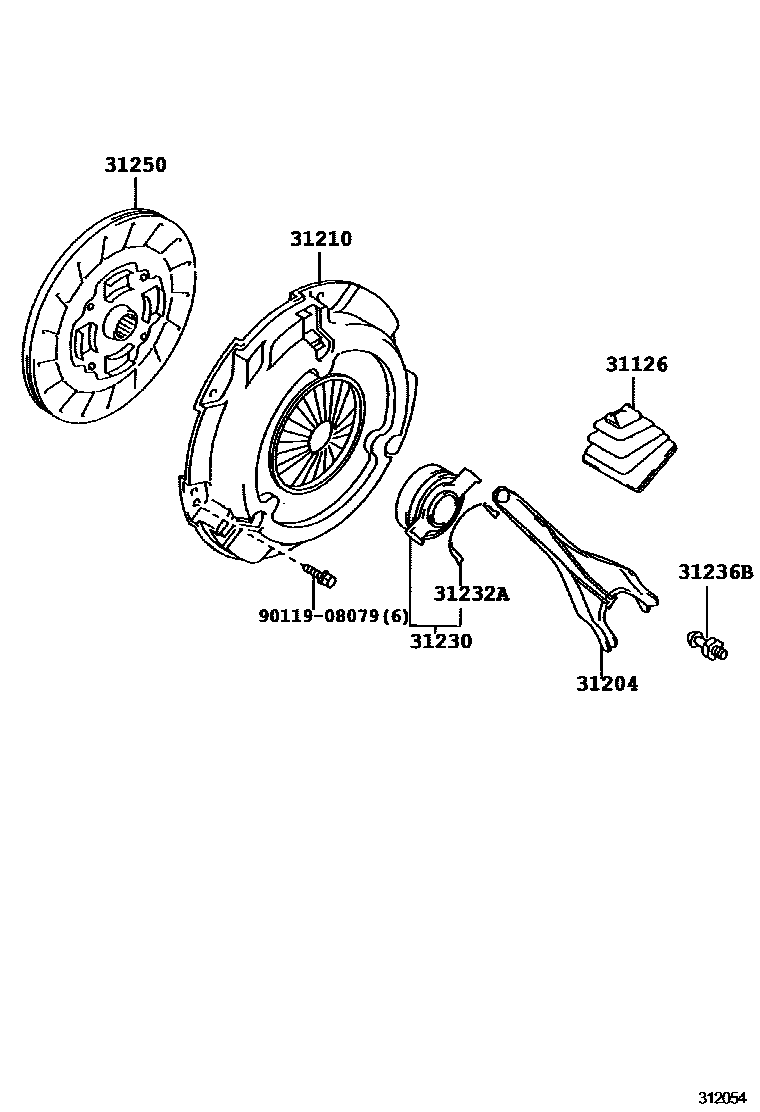

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20080iACV40..5F200803-200908

main31126-32010iACV40..5F200606-200803

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iACV40..5F200606-200803

main31204-20131iACV40..5F200906

31210COVER ASSY, CLUTCH

main31210-33040iACV40..5F200606-200702

main31210-33041iACV40..5F200703-200704

main31210-33042iACV40..5F200704-200908

31230BEARING ASSY, CLUTCH RELEASE

main31230-20170iACV40..5F200606-200607

main31230-20191iACV40..5F200803-200908

main31230-33020iACV40..5F200607-200803

31232ACLIP, RELEASE BEARING HUB

main31232-20020iACV40..5F200606-200803

main31232-20031iACV40..5F200803-200908

31236BSUPPORT, RELEASE FORK

main31236-20060iACV40..5F200606-200803

main31236-20080iACV40..5F200906

31250DISC ASSY, CLUTCH

main31250-33040iACV40..5F200606-200908

main31250-33041iACV40..5F201108-201110

9011908079

main90119-08079

8 parts on this diagram · 2 diagrams in section
