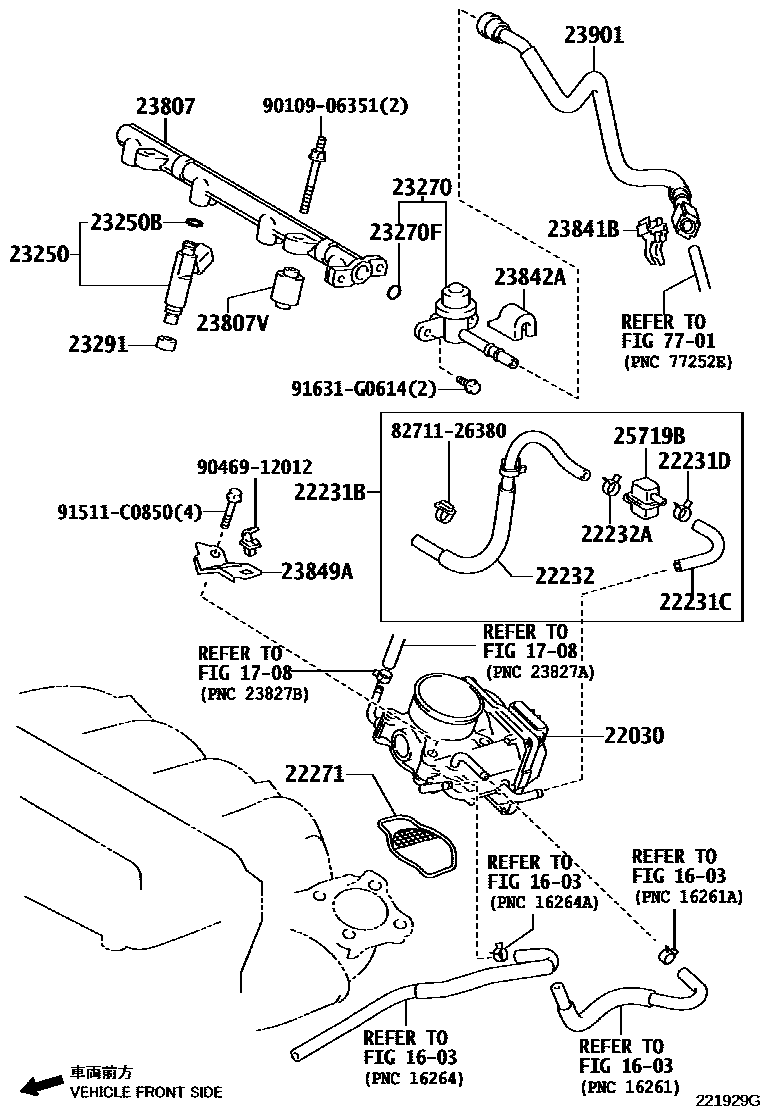

FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
1708VACUUM PIPING
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22231BHOSE, THROTTLE BODY
22231CHOSE, THROTTLE BODY, NO.1
22231DCLAMP OR CLIP(FOR THROTTLE BODY HOSE)
22232HOSE, THROTTLE BODY, NO.2
22232ACLAMP OR CLIP(FOR THROTTLE BODY HOSE)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
(L)
(J)
23250BRING, O(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270FRING, O(FOR PULSATION DAMPER)
23291INSULATOR, INJECTOR VIBRATION
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23849ASUPPORT, FUEL PIPE
23901TUBE SUB-ASSY, FUEL
25719BTANK, VACUUM SURGE
7701FUEL TANK & TUBE
8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-26380
9010906351
main90109-06351
9046912012
main90469-12012
91511C0850
main91511-C0850
91631G0614
main91631-G0614
27 parts on this diagram · 3 diagrams in section
