V-BELT

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

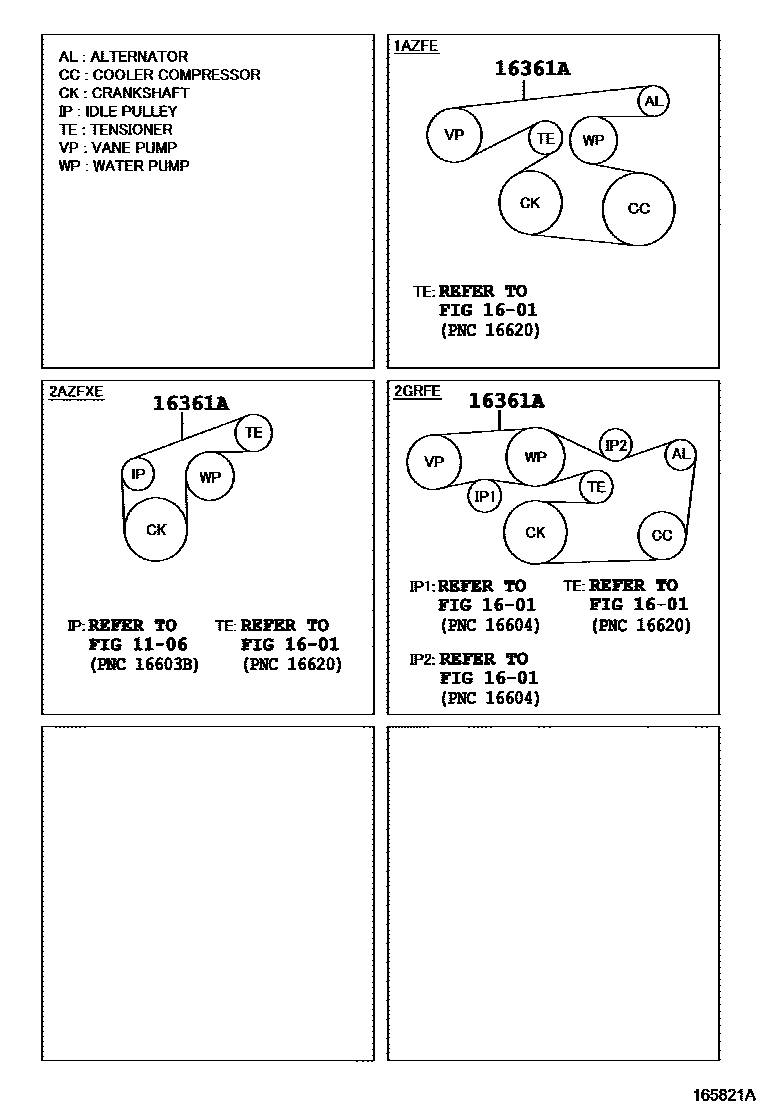

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02652i200606-200906

main99364-C1050i201001

main99367-C2090i200610-200908

3 parts on this diagram · 1 diagram in section
