WATER PUMP

0001 1 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-0H030i2AZFE..ACV40200606-200906

main16100-28041i2AZFXE..AHV40201001

main16100-39455i2GRFE..GSV40200610-200903

main16100-39456i2GRFE..GSV40200908

16173PULLEY, WATER PUMP

main16173-0H030i2AZFE..ACV40200606-200906

main16173-28020i2AZFXE..AHV40201001

main16173-31010i2GRFE..GSV40200908

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-28041i2AZFE..ACV40200707-200801

INA

main16601-28050i2AZFE..ACV40200801-200906

INA

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0H020i2AZFE..ACV40..ARL200906

(L)

main16620-0W110i2AZFE..ACV40200606-200608

main16620-28050i2AZFXE..AHV40201001

main16620-28070i2AZFE..ACV40200608-200703

main16620-28071i2AZFE..ACV40200707-200801

main16620-28090i2AZFE..ACV40..GCC200906

main16620-31040i2GRFE..GSV40200610-200908

9010510509

main90105-10509

9012606012

main90126-06012

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

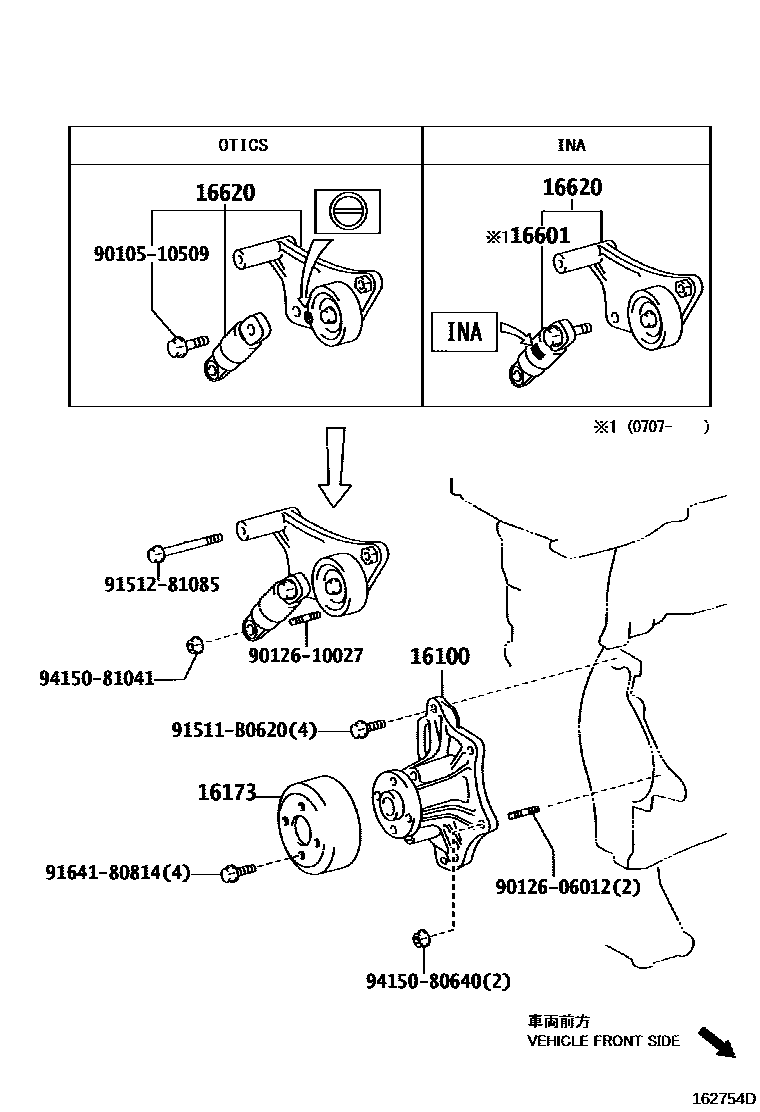

12 parts on this diagram · 4 diagrams in section
