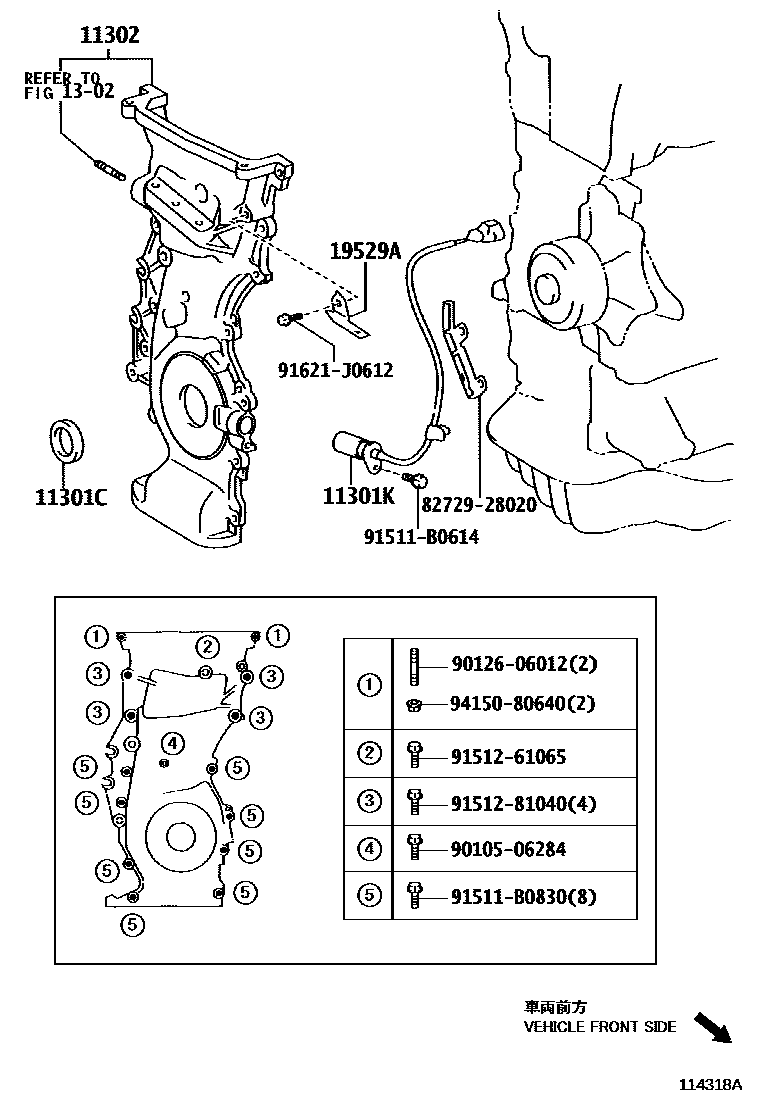

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-38089i2AZFXE..AHV40201001-201110

main90311-42037i2GRFE..GSV40200610-200904

main90311-42045i2GRFE..GSV40200904-200908

main90311-T0053i2AZFE..ACV40200606-200906

11301KSENSOR, CRANK POSITION

main90919-05047i2AZ#..ACV40,AHV40200906

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-28071i2AZFE..ACV40200606-200906

main11310-31020i2GRFE..GSV40200610-200908

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

19529ACLAMP

main19529-28010i2AZFE..ACV40200606-200906

8272928020

main82729-28020

9010506284

main90105-06284

9012606012

main90126-06012

91511B0614

main91511-B0614

91511B0830

main91511-B0830

9151261065

main91512-61065

9151281040

main91512-81040

91621J0612

main91621-J0612

9415080640

main94150-80640

14 parts on this diagram · 3 diagrams in section
