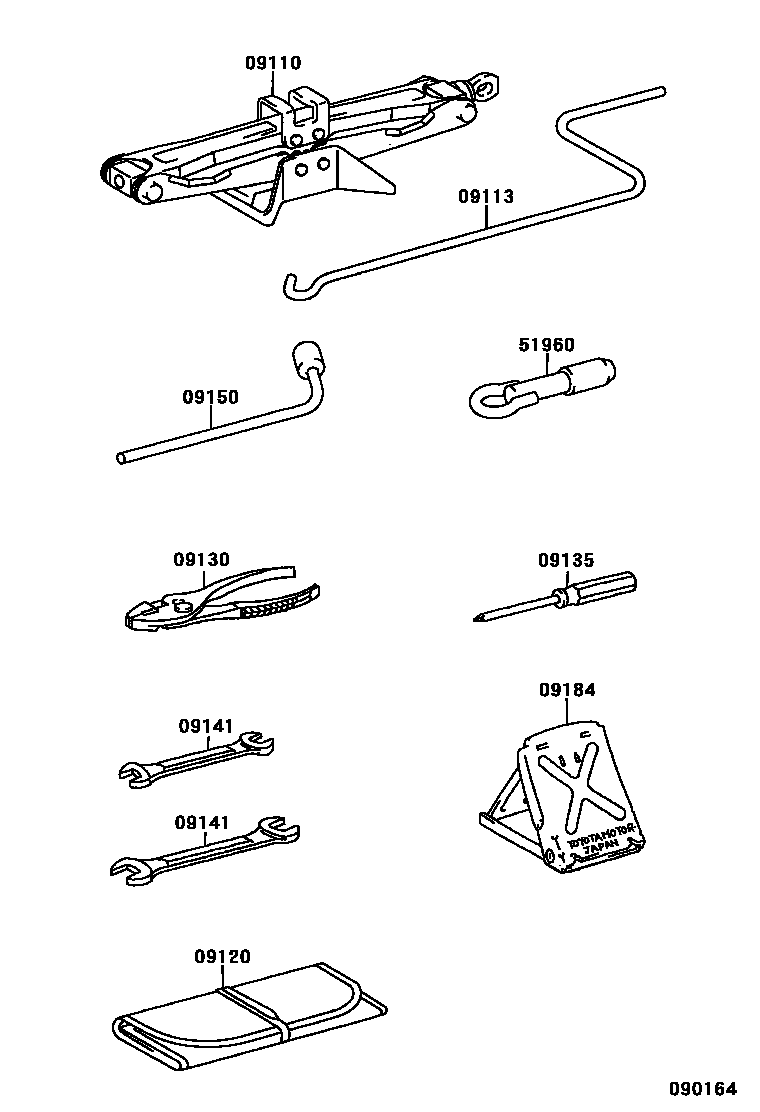

STANDARD TOOL

09110JACK ASSY

main09111-06030iACV40200606-200609

sub09111-06110

main09111-06110iACV40,GSV40200610-200908

09113HANDLE, JACK

main09113-06090iACV40200606-200908

09120BAG, TOOL

main09120-16030iACV40..GCC200606-200908

09130PLIERS

main99913-11500iACV40..GCC200606-200908

09135DRIVER, SCREW

main99915-10700iACV40,GSV40..GCC200606-200908

09141SPANNER

main99914-10810iACV40..GCC200606-200908

8 X 10

main99914-11214iACV40..GCC200606-200908

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010iGSV40200606-200908

09184STOPPER, WHEEL

main09184-00010iACV40,GSV40..GCC200606-201110

51960HOOK ASSY, FRONT

main51960-06040iACV40200606-200908

sub51960-52050

9 parts on this diagram · 1 diagram in section
