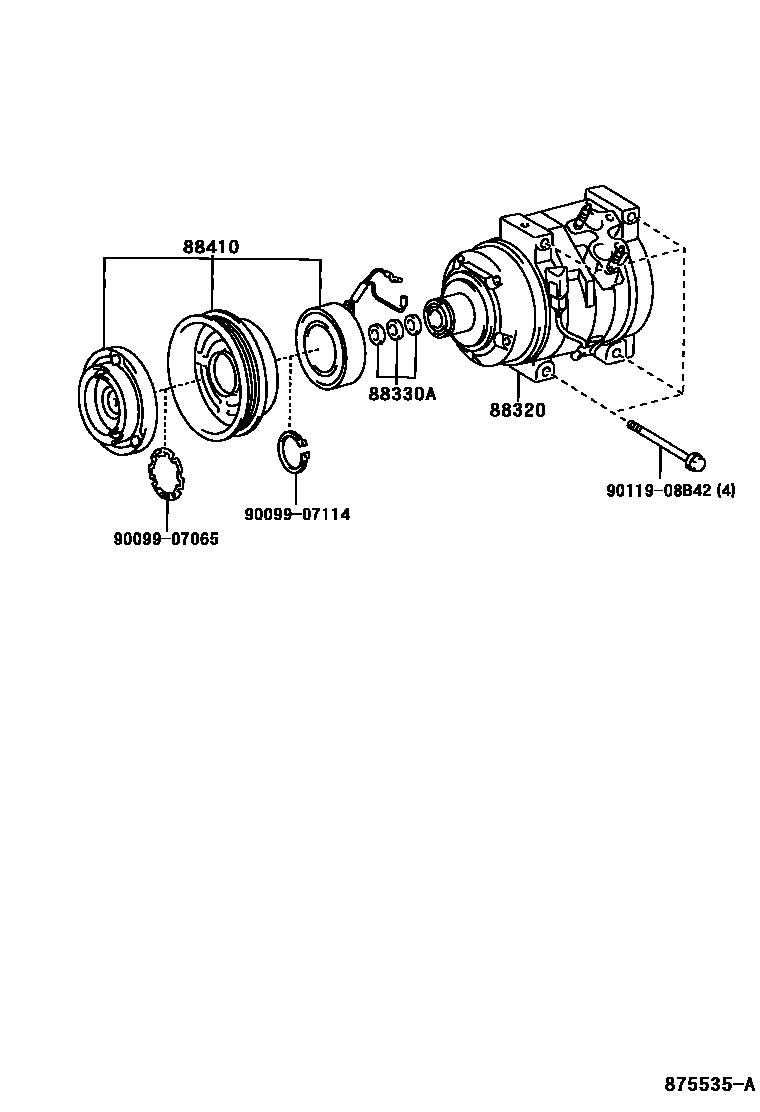

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88320COMPRESSOR ASSY, COOLER

main88320-YC010iACV36..GCC200208-200408

main88320-YC020iMCV36..ARL200408

main88320-YC030iMCV36..GCC200208-200408

main88320-YC040iACV36..ARL200408

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020×3iACV36,MCV36200208-200408

88410CLUTCH ASSY, MAGNET

main88410-YC020iACV36..GCC200208-200408

main88410-YC040iMCV36200408

main88410-YC050iACV36..ARL200408

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

6 parts on this diagram · 2 diagrams in section
