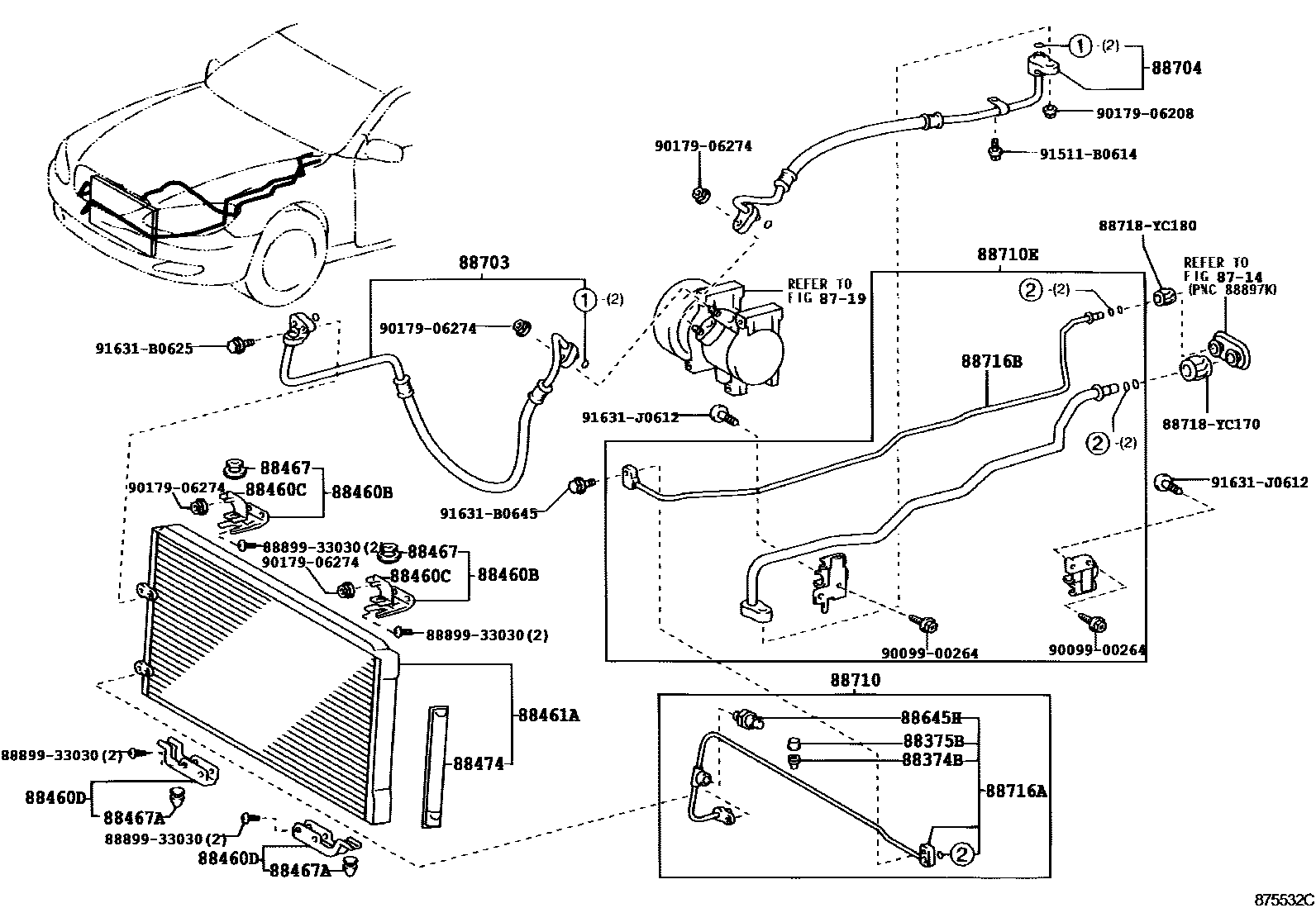

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iACV36..ARL200208-200408

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iACV36..ARL200208-200408

88460CONDENSER ASSY, COOLER

main88461-YC070iACV36,MCV36..GCC200408

main88461-YC080iACV36,MCV36..ARL200408

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-YC140×2iACV36,MCV36200208-200408

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-YC060iACV36,MCV36200408

LH

main88688-YC120iACV36;MCV36..GCC200208-200408

RH

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-YC170iACV36,MCV36..ARL200208-200408

RH

main88688-YC180iACV36,MCV36..ARL200208-200408

LH

88461ACORE, COOLER CONDENSER

main88461-YC080iACV36,MCV36..ARL200208-200408

88467CUSHION, COOLER CONDENSER, NO.1

main88467-33030×2iACV36,MCV36200208-200408

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-YC030×2iACV36;MCV36..GCC200208-200408

88474DRYER, COOLER

main88474-YC020iACV36,MCV36..ARL; ACV36,MCV36..GCC200208-200408

88645HSWITCH, PRESSURE NO.1

main88645-17020iACV36..ARL200208-200408

PART NUMBER LABEL=88645-17020

main88645-60030iACV36..ARL200208-200408

PART NUMBER LABEL=88645-60030

88703HOSE SUB-ASSY, DISCHARGE

main88703-YC060iMCV36..ARL200208-200408

main88703-YC070iACV36..ARL200408

main88703-YC080iMCV36..GCC200208-200408

main88703-YC090iACV36..GCC200408

main88703-YC100iACV36..ALT,ATEVA200301-200408

SOUTH AFRICA SPEC

88704HOSE SUB-ASSY, SUCTION

main88704-YC080iMCV36..ATM..ARL200408

main88704-YC090iACV36..ARL200208-200408

main88704-YC100iMCV36..GCC200408

main88704-YC110iACV36..GCC200208-200408

88710TUBE ASSY, AIR CONDITIONER

main88710-YC010iACV36..ARL200208-200408

main88710-YC020iACV36..ALT,ATEVA; MCV36..ARL200408-200606

SOUTH AFRICA SPEC

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-YC100iACV36,MCV36..ARL200208-200408

main88710-YC110iACV36,MCV36..GCC200208-200403

main88710-YC111iACV36,MCV36..GCC200408

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-YC030iACV36..ARL200208-200408

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-YC010iACV36,MCV36..ARL200208-200408

88718YC170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-YC170

88718YC180PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-YC180

8889933030COVER, EVAPORATOR

main88899-33030

9009900264

main90099-00264

9017906208

main90179-06208

9017906274

main90179-06274

91511B0614

main91511-B0614

91631B0625

main91631-B0625

91631B0645

main91631-B0645

91631J0612

main91631-J0612

29 parts on this diagram · 5 diagrams in section
