HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL(DIAL TYPE) 0002 1CONTROL PANEL(DIAL TYPE) 0003 1CONTROL PANEL(DIGITAL TYPE) 0004 1AIR DUCT 0005 1AIR DUCT 0006 1SENSOR

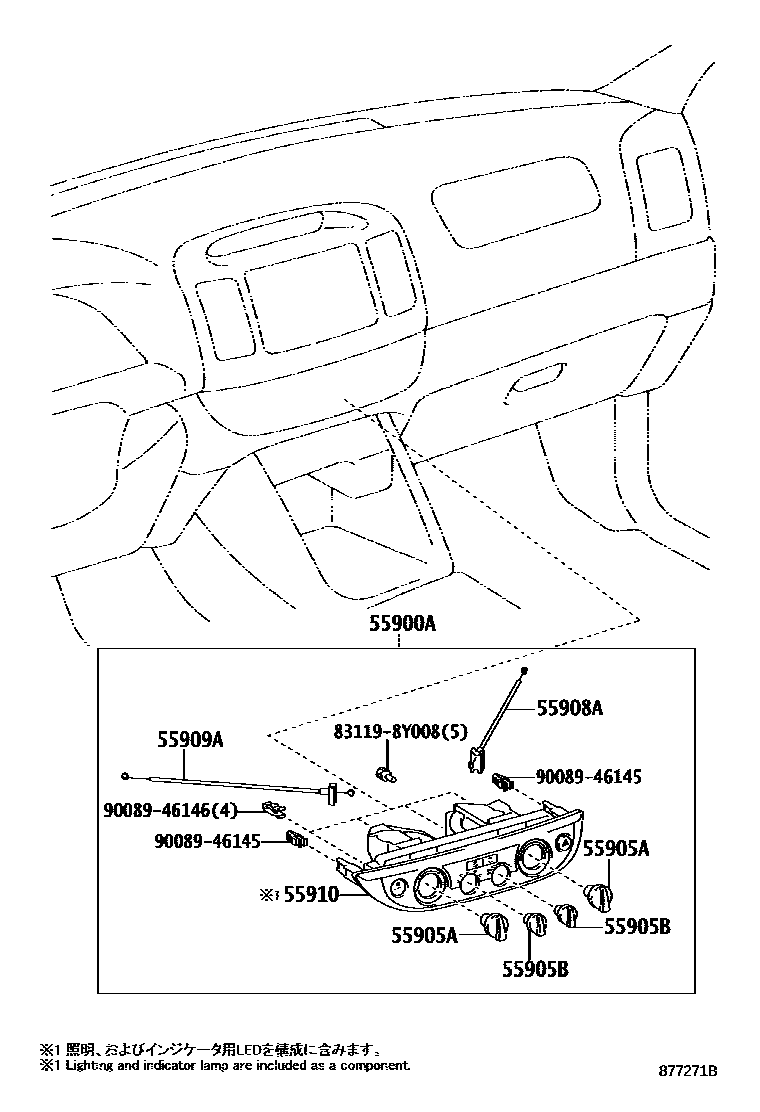

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-YC030-B1iACV36,MCV36..ALT,ALTS,ATEVA200208-200408

DK.CHARCOAL,TRIM1#

main55900-YC030-E1iACV36,MCV36..ALT,ATEVA200208-200408

SANDAL WOOD,TRIM4#

main55900-YC040-B1iACV36..ALT200208-200408

W/O(COOLER),DK.CHARCOAL,TRIM1#

main55900-YC040-E1iACV36..ALT200208-200408

W/O(COOLER),SANDAL WOOD,TRIM4#

main55900-YC050iACV36..SPV200208-200408

main55900-YC060-B1iACV36,MCV36..GLI,TOU,XLI200208-200408

DK.CHARCOAL,TRIM1#

main55900-YC060-E1iACV36,MCV36..GLI,TOU,XLI200208-200408

SANDAL WOOD,TRIM4#

55905AKNOB, HEATER CONTROL

main55905-8Y001×2iMCV36..ATM..SPV200507

55905BKNOB, HEATER CONTROL, NO.2

main55905-8Y002×2iMCV36..MTM..ALT200408-200601

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-YC040iMCV36..MTM..TOU;MCV36..ATM..(ALT,TOU);ACV36..ALT,GLI,SPV,XLI200408

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-YC040iMCV36..MTM..ALT200408-200601

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-8Y001iACV36..ALT;MCV36..ATM..ALT200408

main55910-8Y002iACV36..ALT200208-200408

main55910-8Y003iACV36..ALT;MCV36..ATM..(ALT,SPV)200507

GRAY METALLIC PAINT

main55910-8Y004iACV36..GLI200408

main55910-8Y005iACV36,MCV36..TOU,XLI200408

831198Y008BULB, COMBINATION METER, NO.3

main83119-8Y008

9008946145

main90089-46145

9008946146

main90089-46146

9 parts on this diagram · 6 diagrams in section
