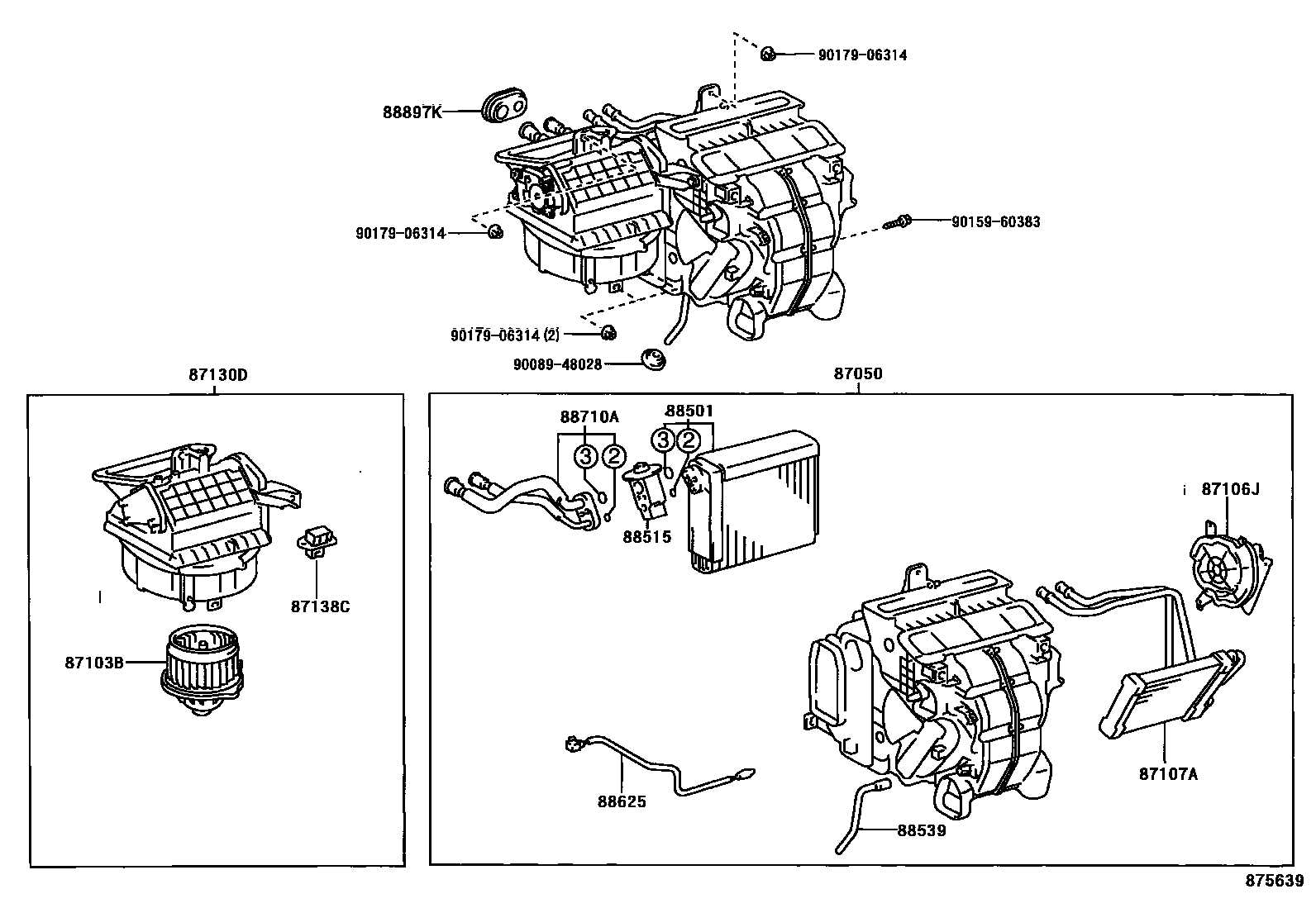

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER 0003 1W/O(AIR CONDITIONER) 0004 1MANUAL AIR CONDITIONER 0005 1AUTO AIR CONDITIONER 0006 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-YC110iACV36..ARL;MCV36..ALT,ALTS,ATEVA200208-200304

W(MANUAL AIR CONDITIONER)

main87050-YC111iMCV36..ATM..SPV200508

main87050-YC120iMCV36..SPV200208-200301

main87050-YC121iMCV36..SPV;ACV36..ALT,ATEVA200304-200408

W(AUTO AIR CONDITIONER)

main87050-YC130iACV36..ALT200208-200408

W/O(COOLER)

main87050-YC140iACV36,MCV36..GLI,TOU,XLI200208-200304

main87050-YC141iACV36,MCV36..GLI,TOU,XLI200408

W(MANUAL AIR CONDITIONER)

main87050-YC150iMCV36..GD..GCC200208-200304

main87050-YC151iMCV36..GD200304-200408

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-YC040iACV36..ARL;MCV36..ATM..ARL200408

main87103-YC050iACV36,MCV36..GCC200408

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-YC080iMCV36..MTM..ALT200408-200601

main87106-YC090iMCV36..MTM..GD;ACV36..ALT,ATEVA;MCV36..ATM..(ATEVA,GD,SPV)200408

W(AUTO AIR CONDITIONER)

main87106-YC120iACV36,MCV36..GLI,TOU,XLI200208-200408

main87106-YC130iMCV36..GD200208-200212

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-YC040iMCV36..MTM..ARL200408-200601

main87107-YC050iACV36,MCV36..GCC200208-200408

87130DBLOWER ASSY

main87130-YC090iACV36..ALT,SPV;MCV36..ATM..ALT200408

main87130-YC100iACV36..ALT,ATEVA;MCV36..ATM..(ATEVA,GD,SPV)..ARL200408

W(AUTO AIR CONDITIONER)

main87130-YC110iACV36,MCV36..GLI,TOU,XLI200408

main87130-YC120iMCV36..GD200208-200408

87138CRESISTOR, BLOWER

main87138-YC040iMCV36..MTM..ALT200408-200601

main87138-YC050iACV36,MCV36..GLI,TOU,XLI200408

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-YC030iACV36..ARL;MCV36..ALT,ALTS,ATEVA200208-200408

main88501-YC040iACV36,MCV36..GLI,TOU,XLI200208-200408

main88501-YC050iMCV36..SPV200208-200212

main88501-YC060iMCV36..GD200208-200212

88515VALVE, COOLER EXPANSION

main88515-28160iACV36;MCV36..ATM;MCV36..MTM..GCC200411

main88515-48040iACV36,MCV36200408-200410

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-YC040iACV36..ARL;MCV36..ATM..ARL200408

main88539-YC050iACV36,MCV36..GCC200208-200408

88625THERMISTOR, COOLER, NO.1

main88625-17130iMCV36..GD..GCC;ACV36,MCV36..ALT,ALTS,ATEVA,GLI,SPV,TOU,XLI200208-200304

main88625-33170iMCV36..GD..GCC;ACV36,MCV36..ALT,ALTS,ATEVA,GLI,SPV,TOU,XLI200304-200307

main88625-35060iACV36,MCV36200307-200408

88710ATUBE ASSY, AIR CONDITIONER

main88710-YC080iACV36,MCV36..ARL200208-200408

main88710-YC090iACV36,MCV36..GCC200208-200408

88897KGROMMET, (FOR COOLER PIPE)

main88897-YC010iMCV36..MTM..ARL200408-200601

main88897-YC020iACV36..ALT200208-200408

W/O(COOLER)

9008948028

main90089-48028

9015960383

main90159-60383

9017906314

main90179-06314

15 parts on this diagram · 6 diagrams in section
