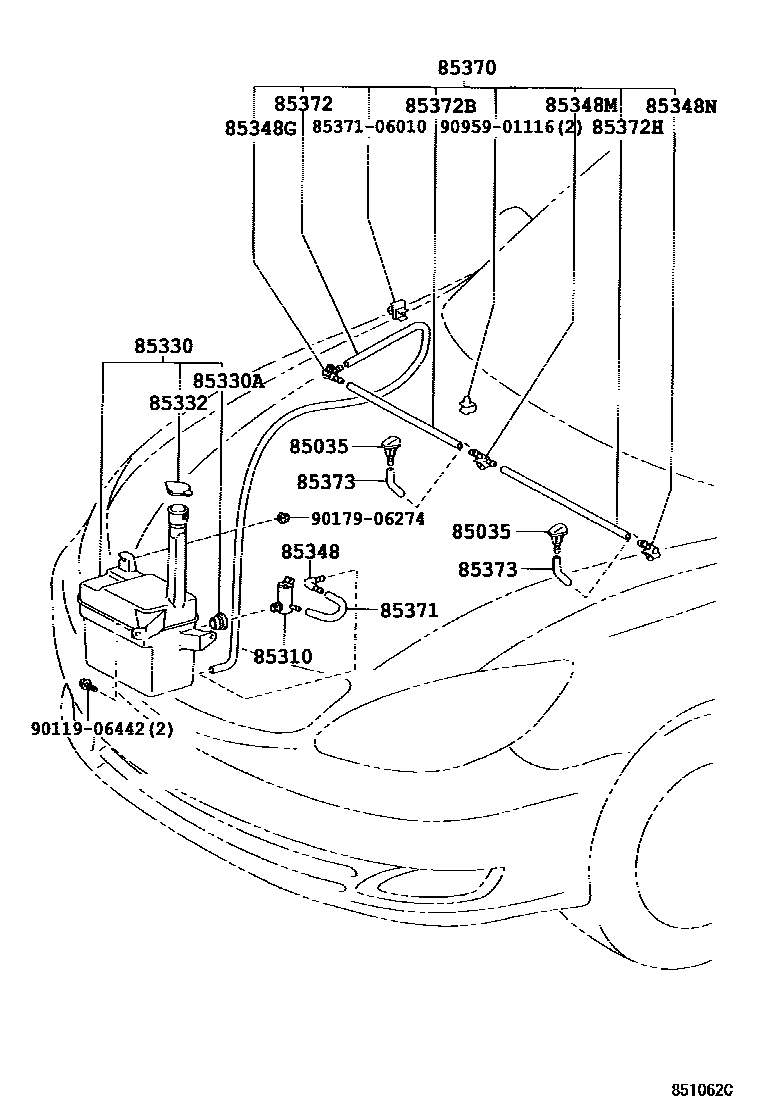

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-AA041×2iACV36,MCV36200208-200301

main85381-AA042×2iACV36,MCV36200301-200408

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-YC030iACV36,MCV36200208-200408

85330JAR ASSY, WINDSHIELD WASHER

main85315-YC070iACV36,MCV36200208-200408

85330ABUSH, WINDSHIELD WASHER JAR

main90069-50002iACV36,MCV36200208-200408

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iACV36,MCV36200208-200408

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-20200iACV36,MCV36200208-200408

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85377-06020iACV36,MCV36200208-200408

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85378-AA010iACV36,MCV36200208-200408

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-AA020iACV36,MCV36200208-200408

85370HOSE ASSY, WINDSHIELD WASHER

main85370-YC060iACV36,MCV36200208-200408

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85355-14481iACV36,MCV36200208-200408

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85374-AA060iACV36,MCV36200208-200408

L=1825

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85374-AA040iACV36,MCV36200208-200408

L=345

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main85374-AA050iACV36,MCV36200208-200408

L=520

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33024×2iACV36,MCV36200208-200408

L=170

8537106010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-06010

9011906442

main90119-06442

9017906274

main90179-06274

9095901116

main90959-01116

19 parts on this diagram · 1 diagram in section
