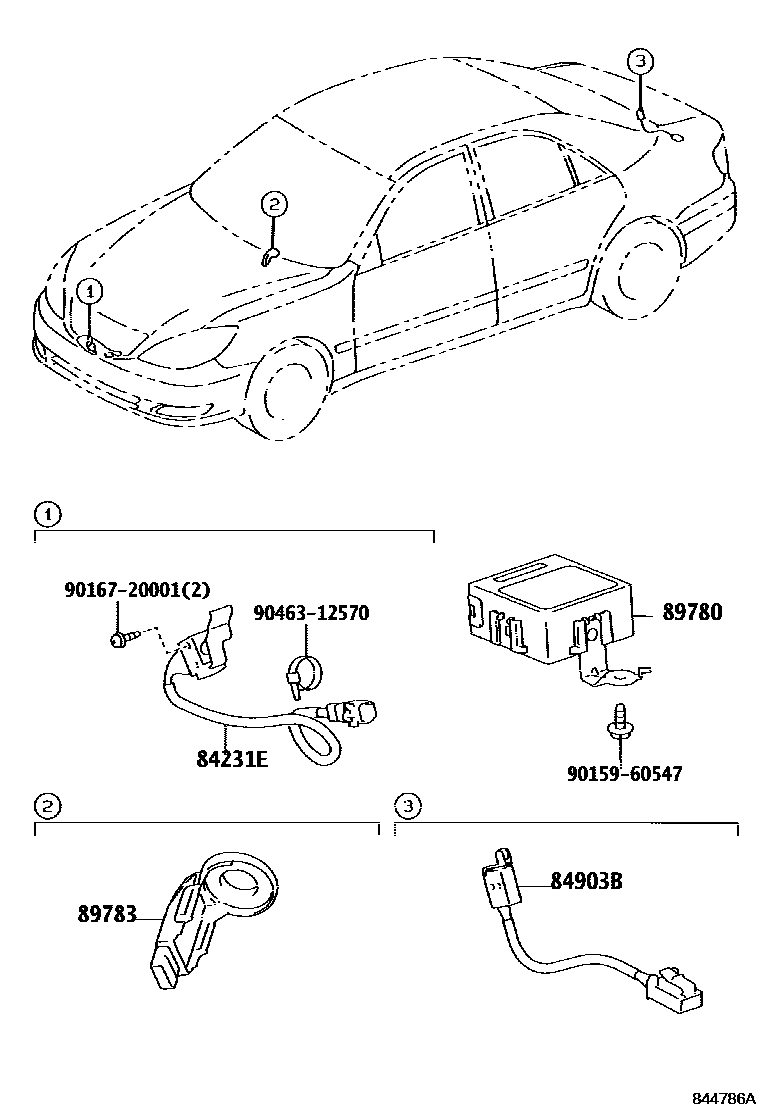

ANTI-THEFT DEVICE

84231ESWITCH, COURTESY(FOR SECURITY)

main84231-33100iACV36,MCV36..ARL200408-200606

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-06010iACV36,MCV36..ARL200303-200408

main84903-33160iACV36,MCV36..ARL200208-200303

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-33090iMCV36..MTM..SPV;MCV36..(ALT,GD)..ARL200408-200601

main89780-33180iACV36..ARL200601

89783AMPLIFIER, TRANSPONDER KEY

main89783-YC010iACV36,MCV36200208-200408

9015960547

main90159-60547

9016720001

main90167-20001

9046312570

main90463-12570

7 parts on this diagram · 1 diagram in section
