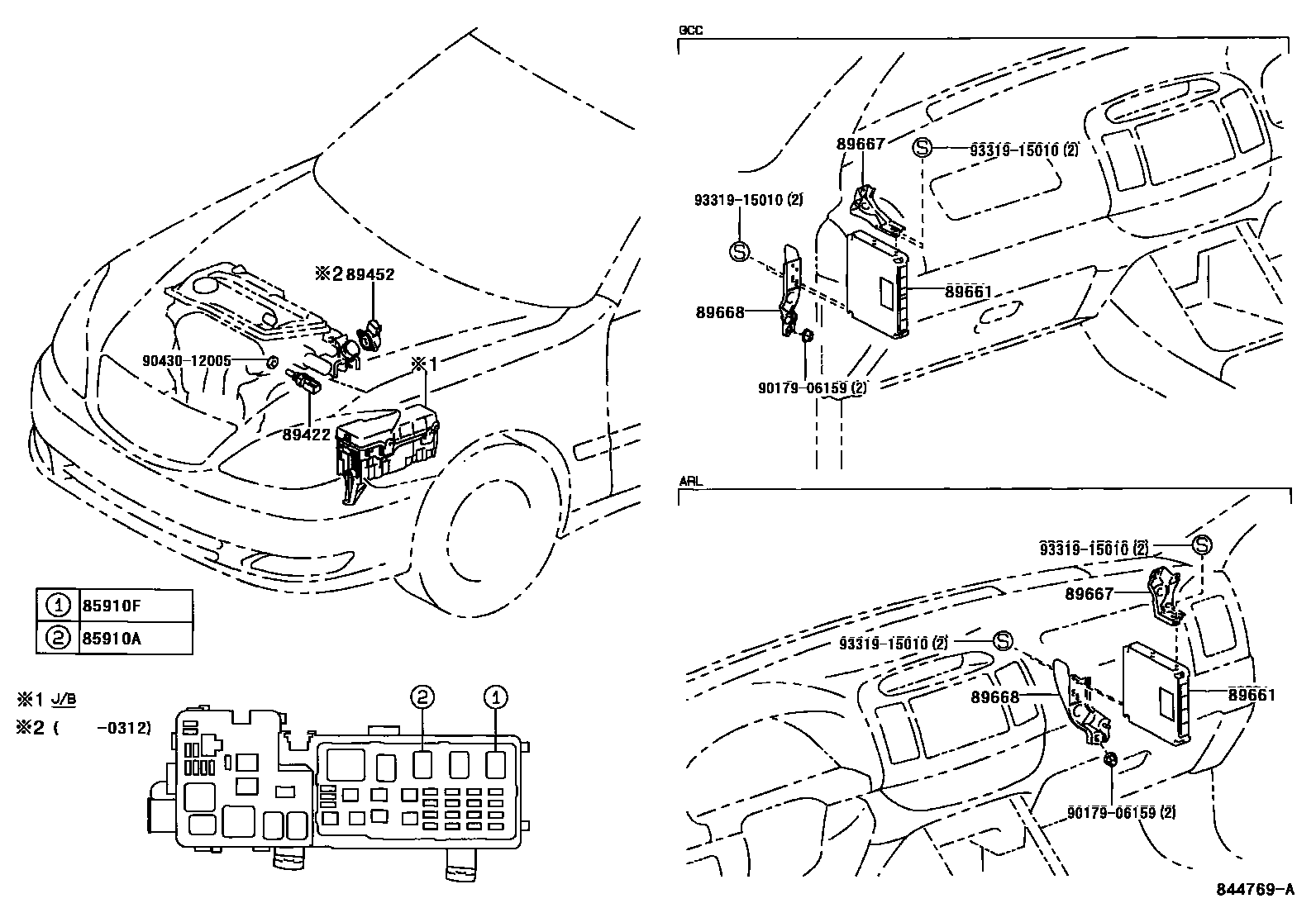

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87008iACV36,MCV36200208-200408

85910FRELAY, COMPUTER (FOR EFI)

main90080-87008iACV36,MCV36200208-200408

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33020iMCV36..ATM..GD..GCC;MCV36..MTM..(ALT,GD);MCV36..ATEVA,SPV,TOU200408-200606

P/N LABEL=8942233020

main89422-33030iACV36200208-200408

main89422-35010iMCV36200208-200408

P/N LABEL=8942235010

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-06020iMCV36200208-200312

CTS

main89452-33030iACV36; MCV36200208-200312

AISAN

89661COMPUTER, ENGINE CONTROL

main89661-33D70iACV36..MTM..ARL200601

main89661-33D80iACV36..ATM..ARL200601

main89661-33E10iMCV36..ATM..ARL200601

main89661-YY020iMCV36..ATM..(ALT,ATEVA)200302-200408

W(LPG)

main89666-06420iMCV36..ARL200208-200408

main89666-06430iMCV36..GCC200601

main89666-06440iACV36..MTM..ALT200601

SOUTH AFLICA SPEC

main89666-06450iACV36..MTM..GCC200208-200408

main89666-06460iACV36..ATM..ARL200408-200601

main89666-06470iACV36..ATM..GCC200408

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-33120iMCV36..GCC200601

main89667-33130iMCV36..MTM..ARL200408-200601

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33150iACV36..ARL200601

main89668-33160iACV36..GCC200408

main89668-33170iACV36..ALT,ATEVA; MCV36..ATM..ARL200408

SOUTH AFRICA SPEC

9017906159

main90179-06159

9043012005

main90430-12005

9331915010

main93319-15010

10 parts on this diagram · 2 diagrams in section
