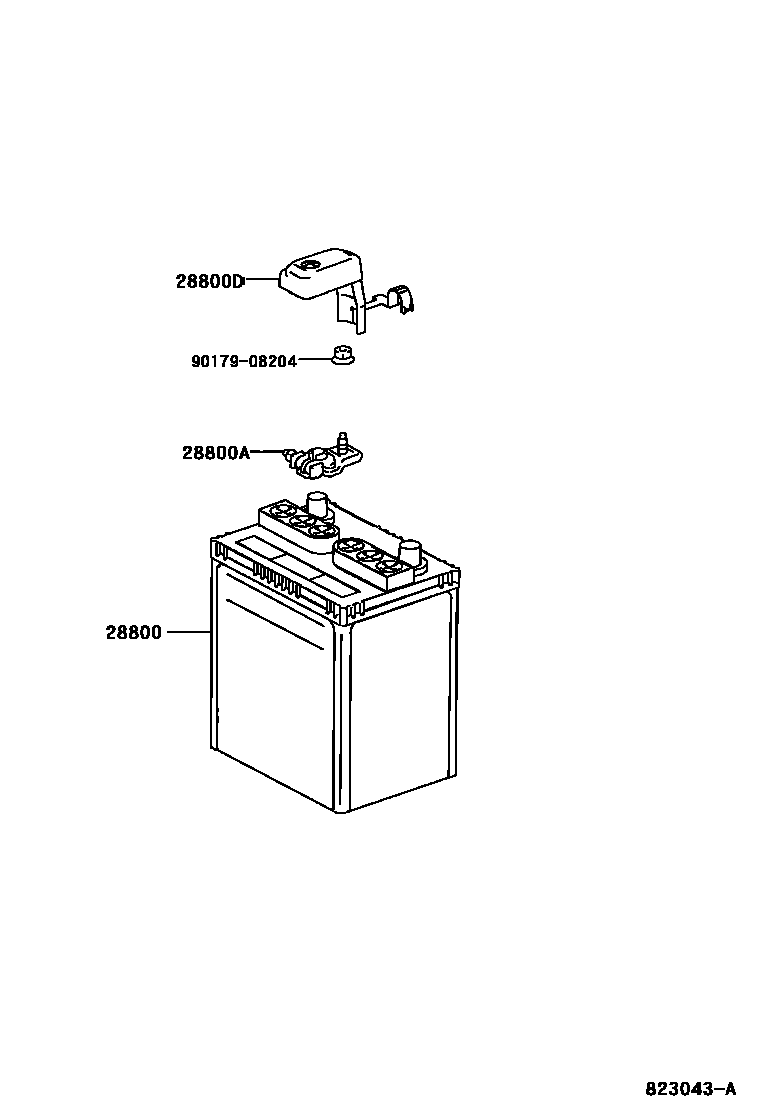

BATTERY & BATTERY CABLE

28800BATTERY

main28800-0H140i2AZFE..ACV36..XLI200605-200606

80D26L

main28800-YC020i2AZFE..ACV36..XLI200408-200604

80D26L

main28800-YD010i2AZFE,1MZFE..ACV36,MCV36..GCC200307-200408

55D23L

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i2AZFE,1MZFE..ACV36,MCV36200208-200408

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i2AZFE,1MZFE..ACV36,MCV36200208-200408

9017908204

main90179-08204

4 parts on this diagram · 1 diagram in section
