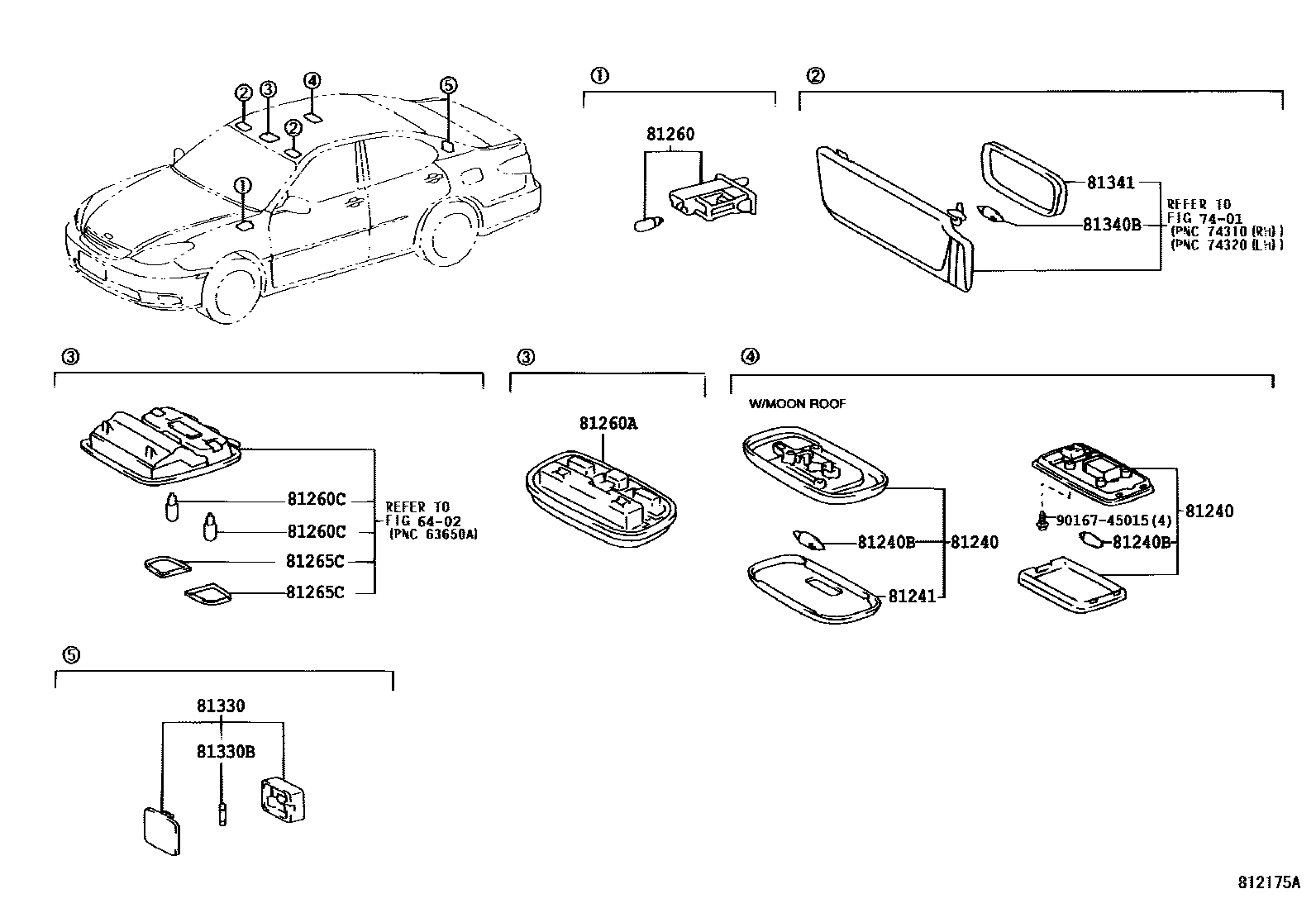

INTERIOR LAMP

6402ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-02

7401ARMREST & VISOR

→ Go to FIG 74-01

81240LAMP ASSY, ROOM, NO.1

main81240-33030-A0iACV36,MCV36..ATEVA,GD,GLI,TOU; MCV36..ATM..SPV200208-200408

W(MOON ROOF),IVORY,TRIM16; W(MOON ROOF),IVORY,TRIM4#

main81240-33030-B0iACV36..ATEVA,GLI,SPV;MCV36..MTM..(ALTS,GD,SPV,TOU);MCV36..ATM..(ALTS,ATEVA,GD,TOU); MCV36..ATM..SPV200208-200408

W(MOON ROOF),LT.GRAY,TRIM1#; W(MOON ROOF),LT.GRAY,TRIM15

main81240-YC020-A0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI200208-200408

IVORY,TRIM4#

main81240-YC020-B1iACV36,MCV36200208-200408

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90089-81002iACV36;MCV36..MTM..GCC;MCV36..ATM..GD..GCC;MCV36..ATM..(ALT,ATEVA,SPV,TOU)200408

12V 8W

main90981-14001iACV36,MCV36..ALTS,ATEVA,GD,GLI,SPV,TOU200208-200408

12V 3W

main90981-14011iACV36,MCV36..ALTS,ATEVA,GD,GLI,SPV,TOU200208-200408

12V 8W,W(MOON ROOF)

81241LENS, ROOM LAMP, NO.1

main81241-33030iACV36,MCV36..ALTS,ATEVA,GD,GLI,SPV,TOU200208-200408

81260LAMP ASSY, GLOVE BOX

main81260-YC030iMCV36..MTM..SPV200408-200601

81260ALAMP ASSY, MAP

main81260-YC040-A0iACV36,MCV36..ATEVA,GD,GLI,TOU,XLI200208-200408

IVORY,TRIM4#

main81260-YC040-B0iACV36,MCV36..ATEVA,GD,GLI,SPV,TOU,XLI200208-200408

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90084-81002×2iACV36,MCV36..ALTS,ATEVA,GD,GLI,SPV,TOU200208-200408

12V 5W

main90981-12020×2iMCV36..MTM..SPV200408-200601

12V 8W

81265CLENS, MAP LAMP, NO.1

main81265-AA010iMCV36..MTM..SPV200408-200601

RH

main81265-AA020iACV36,MCV36..ALTS,ATEVA,GD,GLI,SPV,TOU200208-200408

LH

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-YC010iACV36,MCV36200208-200408

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90089-81005iACV36,MCV36200208-200408

12V 3W

81340BBULB (FOR VANITY LAMP)

main90084-98013×2iACV36,MCV36..ALTS,ATEVA,GD,GLI,SPV,TOU200208-200408

81341LENS, VANITY LAMP

main81351-AA010iACV36,MCV36..ALTS,ATEVA,GD,GLI,SPV,TOU200208-200408

9016745015

main90167-45015

14 parts on this diagram · 1 diagram in section
