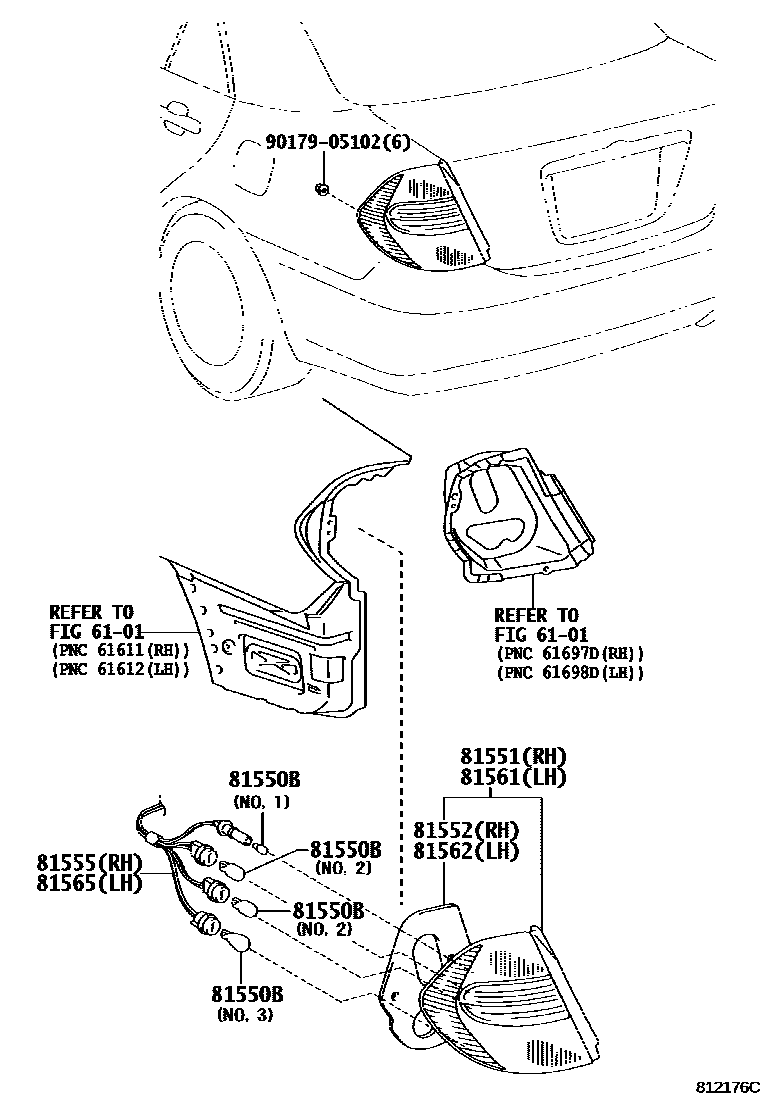

REAR COMBINATION LAMP

0001 1 0002 1

6101

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11048iACV36,MCV36200408-200606

12V 21/5W,NO.3

sub90981-13044

main90981-11059iACV36,MCV36200208-200408

12V 16W,NO.2

main90981-11059iACV36,MCV36200408-200606

12V 16W,NO.4

main90981-13043iACV36,MCV36200208-200408

12V 21W,NO.3

main90981-13044iMCV36..ATM;ACV36..ALT,ATEVA,GLI,XLI;MCV36..MTM..(ALT,GD,TOU)200408-200606

12V 21/5W

main90981-15021iACV36,MCV36200408-200606

12V 21W,AMBER,NO.1

main99132-12050iACV36,MCV36200208-200408

12V 5W,NO.1

main99132-12050iACV36,MCV36200408-200606

12V 5W,NO.2

81551LENS, REAR COMBINATION LAMP, RH

main81551-06160iACV36,MCV36200208-200408

main81551-8Y003iACV36,MCV36..SPV200408

SPORT PACKAGE

main81551-8Y004iMCV36..ATM;ACV36..ALT,ATEVA,GLI,XLI;MCV36..MTM..(ALT,GD,TOU)200408

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-06160iACV36,MCV36200208-200408

main81552-8Y003iACV36,MCV36200408

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-06160iACV36,MCV36200208-200408

main81555-8Y003iACV36,MCV36200408

81561LENS, REAR COMBINATION LAMP, LH

main81561-06170iACV36,MCV36200208-200408

main81561-8Y003iACV36..GLI200408

SPORT PACKAGE

main81561-8Y004iMCV36..ATM;ACV36..ALT,ATEVA,GLI,XLI;MCV36..MTM..(ALT,GD,TOU)200408

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-06160iACV36,MCV36200208-200408

main81562-8Y002iACV36,MCV36200408

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-8Y003iACV36,MCV36200408

main81565-06170iACV36,MCV36200208-200408

9017905102

main90179-05102

9 parts on this diagram · 2 diagrams in section
