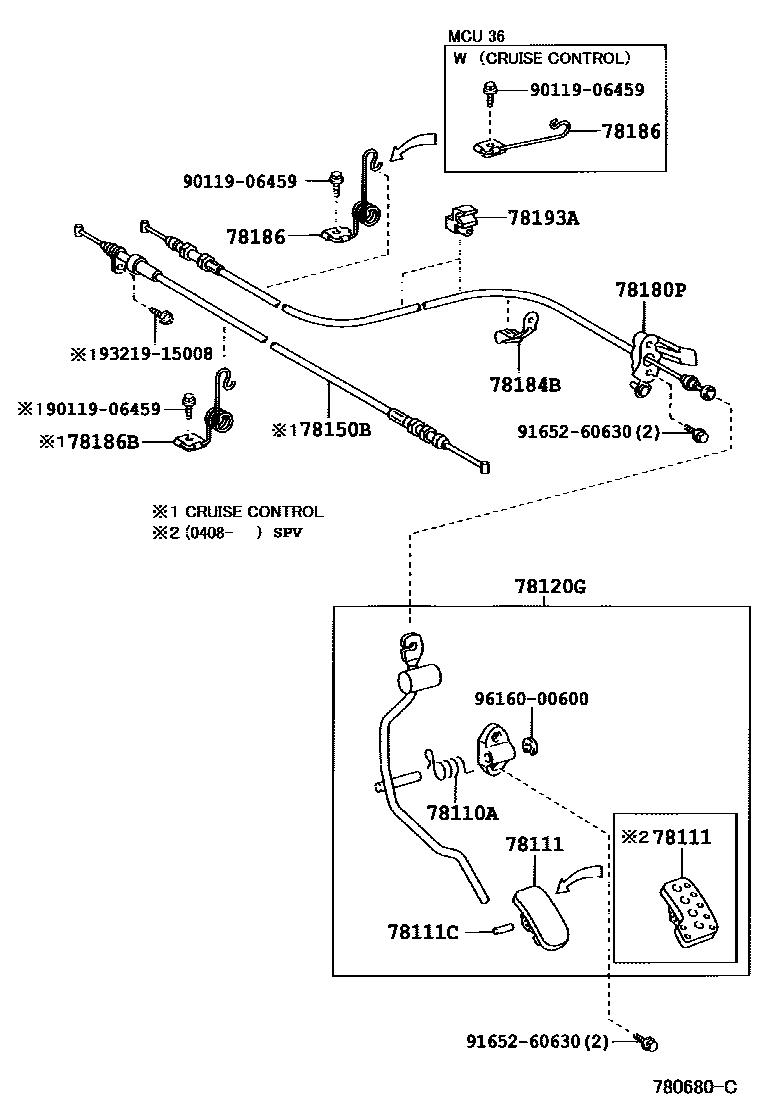

ACCELERATOR LINK
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
GRADE PACKAGE
78111CPIN (FOR ACCELERATOR PEDAL)
78120GROD ASSY, ACCELERATOR PEDAL
78150BCABLE ASSY, ACCELERATOR AUTO DRIVE
78180PCABLE ASSY, ACCELERATOR CONTROL
W(CRUISE CONTROL)
W(CRUISE CONTROL)
W(CRUISE CONTROL)
78184BBRACKET, ACCELERATOR CONTROL CABLE
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
W(CRUISE CONTROL)
W(CRUISE CONTROL)
W(CRUISE CONTROL)
78186BSUPPORT, ACCELERATOR CONTROL CABLE NO.2
78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3
9011906459
main90119-06459
9165260630
main91652-60630
9321915008
main93219-15008
9616000600
main96160-00600
14 parts on this diagram · 4 diagrams in section
