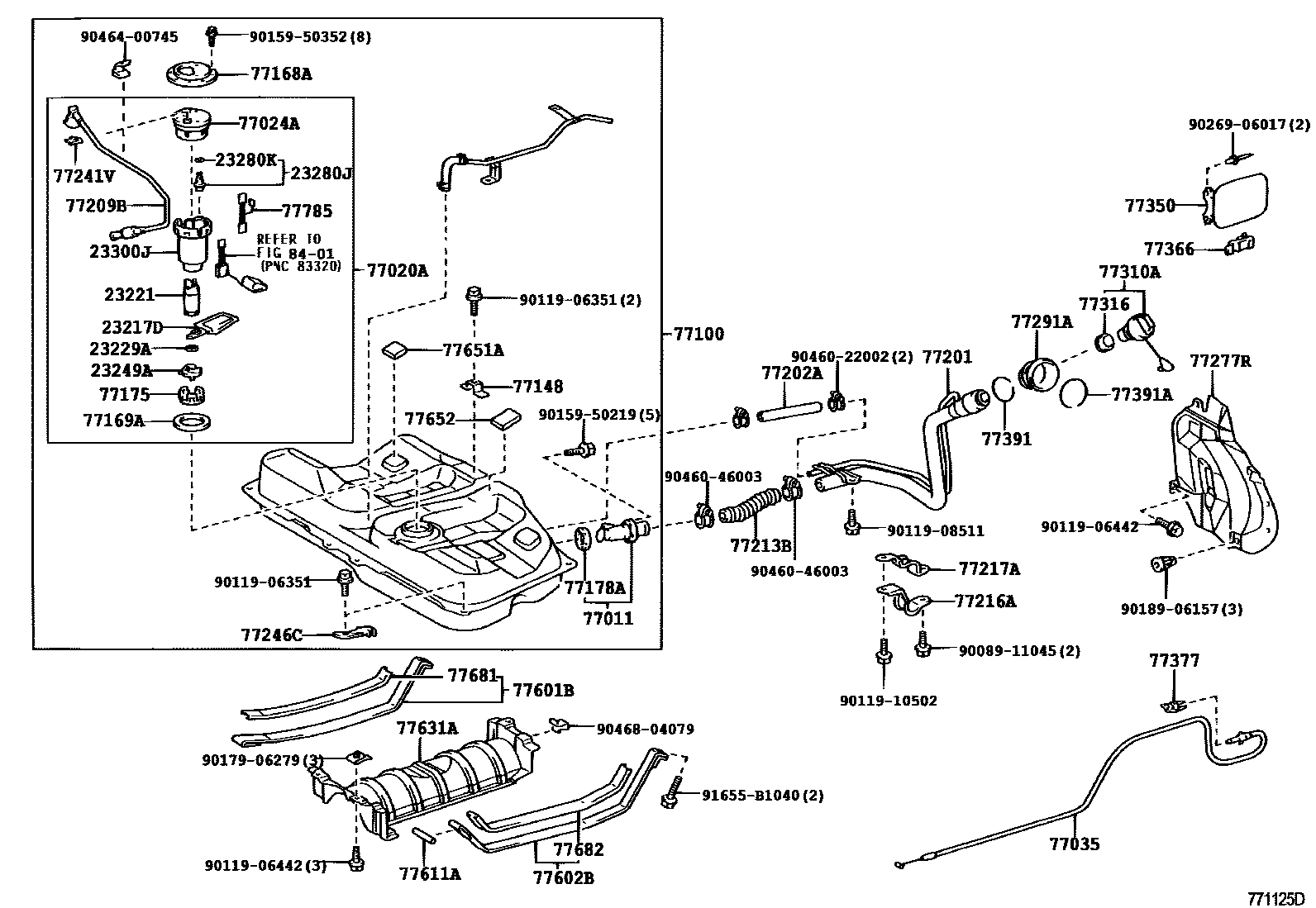

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23229ACLIP(FOR FUEL PUMP FILTER)
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23300JFILTER ASSY, FUEL
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
(L)
(J)
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100TANK ASSY, FUEL
77148BRACKET, FUEL TUBE TO TANK
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77178AGASKET, FUEL TANK FILLER PIPE, LOWER
77201PIPE SUB-ASSY, FUEL TANK INLET
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
L=210
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77241VCLIP, TUBE JOINT
77246CSUPPORT, FUEL MAIN TUBE
77277RPROTECTOR, FUEL TANK FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
(L)
(J)
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77611APIN (FOR FUEL TANK BAND)
77631APROTECTOR, FUEL TANK, LOWER CENTER
77651ACUSHION, FUEL TANK, NO.1
77652CUSHION, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77785HARNESS, FUEL PUMP
8401SWITCH & RELAY & COMPUTER
9008911045
main90089-11045
9011906351
main90119-06351
9011906442
main90119-06442
9011908511
main90119-08511
9011910502
main90119-10502
9015950219
main90159-50219
9015950352
main90159-50352
9017906279
main90179-06279
9018906157
main90189-06157
9026906017
main90269-06017
9046022002
main90460-22002
9046046003
main90460-46003
9046400745
main90464-00745
9046804079
main90468-04079
91655B1040
main91655-B1040
59 parts on this diagram · 2 diagrams in section
