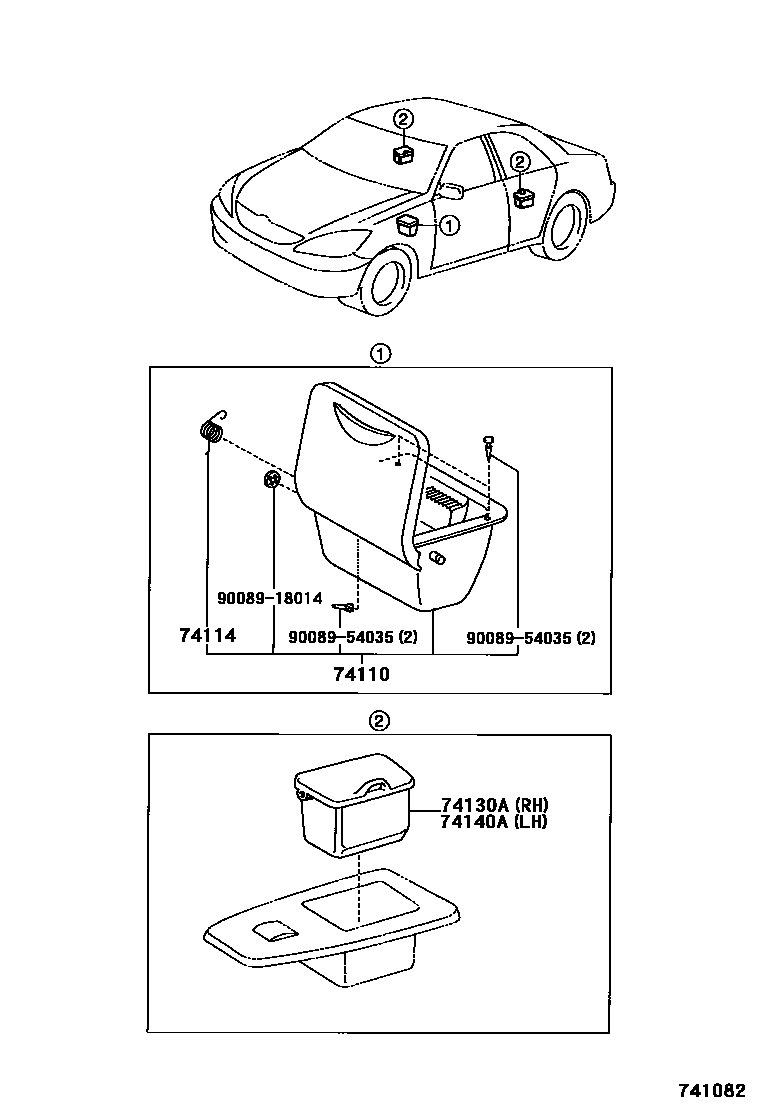

ASH RECEPTACLE

0001 1 0003 1

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74110-YC010iACV36,MCV36200208-200408

74114SPRING, FRONT ASH RECEPTACLE PROTECTOR

main74124-YC020iACV36,MCV36200208-200408

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-33010iACV36,MCV36..(GD,GLI)..GCC200408-200606

WOOD GRAIN

main74130-33020-B1iACV36..XLI200408-200606

STONE,TRIM1#

main74130-33020-E0iACV36..XLI200408-200606

FAWN,TRIM4#

main74130-33040iACV36,MCV36..TOU,XLI200408-200606

GRAY METALLIC

74140ARECEPTACLE ASSY, REAR ASH, LH

main74130-33010iACV36,MCV36..(GD,GLI)..GCC200408-200606

WOOD GRAIN

main74130-33020-B1iACV36,MCV36..TOU,XLI200208-200408

STONE,TRIM1#

main74130-33020-E0iACV36,MCV36..TOU,XLI200208-200408

FAWN,TRIM4#

main74130-33040iACV36,MCV36..TOU,XLI200408-200606

GRAY METALLIC

9008918014

main90089-18014

9008954035

main90089-54035

6 parts on this diagram · 2 diagrams in section
