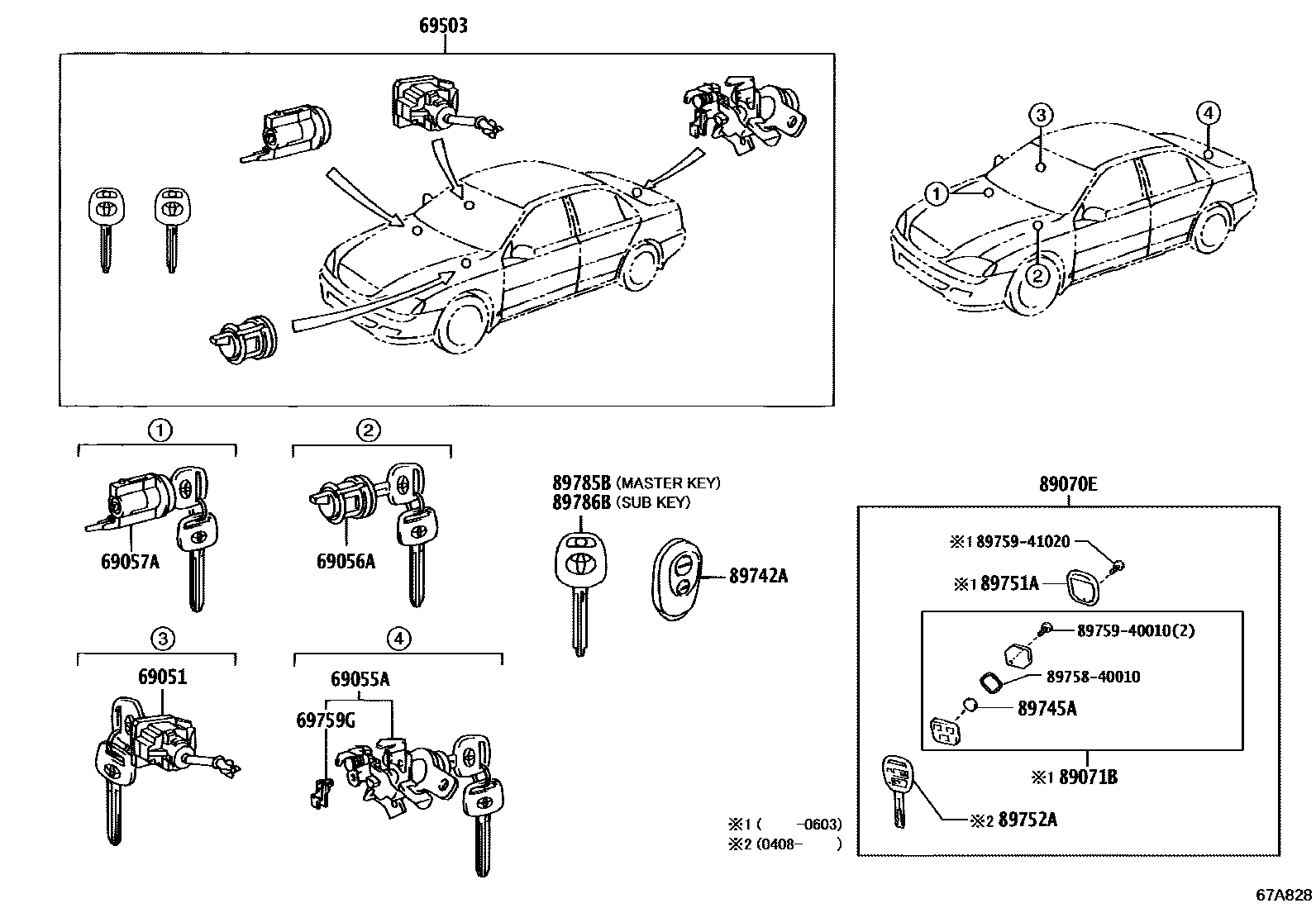

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-06030iMCV36..MTM..ARL200408-200601

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-06040iACV36..ALT,GLI,SPV,XLI;MCV36..ALT,ALTS,GD,TOU200302-200408

main69055-06050iACV36,MCV36..ARL200208-200408

W(SECURITY HORN)

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-06030iACV36,MCV36200208-200408

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-06060iACV36;MCV36..TOU;MCV36..ATM..ARL200408

main69057-06070iACV36,MCV36..GCC; ACV36..ATEVA;MCV36..ATM..SPV200408-200512

SOUTH AFRICA SPEC; W(WIRELESS DOOR LOCK)

main69057-06071iACV36,MCV36..GCC; ACV36..ATEVA;MCV36..ATM..SPV200601

SOUTH AFRICA SPEC; W(WIRELESS DOOR LOCK)

main69057-06080iACV36..ALT200301-200408

SOUTH AFRICA SPEC

main69057-06081iACV36..ALT200601

SOUTH AFRICA SPEC

69503CYLINDER SET, LOCK

main69005-06070iACV36,MCV36..GLI,TOU,XLI200208-200408

main69005-06080iACV36..ALT,SPV;MCV36..ALT,ALTS200208-200408

main69005-06090iACV36,MCV36..GCC200408-200512

W(WIRELESS DOOR LOCK)

main69005-06091iACV36,MCV36..GCC200601

W(WIRELESS DOOR LOCK)

main69005-06100iMCV36..MTM..ARL200408-200601

W(SECURITY HORN)

main69005-06110iACV36..ALT200301-200408

SOUTH AFRICA SPEC

main69005-06111iACV36..ALT200601

SOUTH AFRICA SPEC

main69005-06120iACV36..ATEVA;MCV36..ATM..SPV200408-200512

SOUTH AFRICA SPEC

main69005-06121iACV36..ATEVA;MCV36..ATM..SPV200601

SOUTH AFRICA SPEC

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-06020iMCV36..MTM..ARL200408-200601

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-06040iACV36,MCV36..GCC200408-200602

main89070-06041iACV36,MCV36..GCC200603-200606

main89070-06050iACV36..ALT200208-200408

main89070-06051iACV36..ALT200603-200606

main89070-06060iACV36..ATEVA;MCV36..ATM..SPV200408-200602

main89070-06061iMCV36..SPV;ACV36..ATEVA200603-200606

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-53012×2iACV36..ATEVA;MCV36..ATM..SPV200208-200408

main89071-53021×2iACV36,MCV36..GCC200408-200603

main89071-60081×2iACV36..ALT200208-200408

89742ATRANSMITTER, DOOR CONTROL

main89780-YF010×2iACV36..ALT,SPV;MCV36..ALT,ALTS200208-200310

main89780-YF011×2iACV36..ALT,SPV;MCV36..ALT,ALTS200310-200408

main89780-YF020×2iACV36,MCV36..ALTS,ATEVA,SPV200208-200310

W(SECURITY HORN)

main89780-YF021×2iACV36..ARL;MCV36..ATM..ARL200408

89745ABATTERY, TRANSMITTER

main89745-40010×2iMCV36..MTM..GCC;ACV36..ALT,ATEVA,GLI;MCV36..ATM..(GD,SPV,TOU)200208-200408

89751ACOVER, TRANSMITTER HOUSING

main89751-13010×2iMCV36..ATM..SPV;ACV36..ALT,ATEVA200208-200408

main89751-44020×2iACV36,MCV36..GD,GLI,TOU200208-200408

89752ACASE, TRANSMITTER HOUSING

main89752-13020iACV36..ALT200408-200606

main89752-33060iMCV36..MTM..GCC;MCV36..ATM..GD..GCC;ACV36..ATEVA,GLI,XLI;MCV36..ATM..(SPV,TOU)200408-200606

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-26020iACV36,MCV36..ALT,ALTS,ATEVA,GLI,SPV,TOU,XLI200208-200408

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60050iACV36,MCV36200208-200408

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

17 parts on this diagram · 2 diagrams in section
