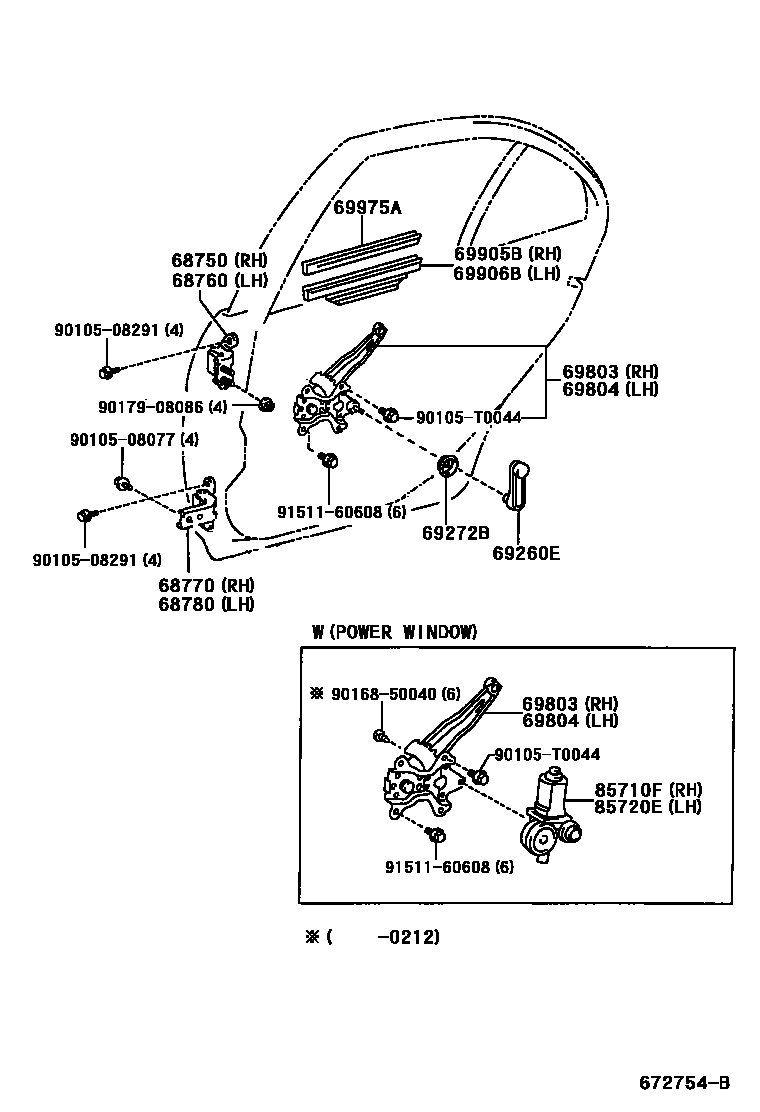

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-33010iACV36,MCV36200208-200408

(J)

main68750-YC010iACV36,MCV36200208-200408

(L)

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-33010iACV36,MCV36200408-200606

(J)

main68760-YC010iACV36,MCV36200208-200408

(L)

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33030iACV36,MCV36200208-200408

(J)

main68770-YC010iACV36,MCV36200208-200408

(L)

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33030iACV36,MCV36200208-200408

(J)

main68780-YC010iACV36,MCV36200208-200408

(L)

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-YA030-B1×2iACV36..XLI200408-200606

STONE,TRIM1#

main69260-YA030-E1×2iACV36..XLI200408-200606

FAWN,TRIM4#

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-YA010-B1×2iACV36..MTM..XLI;ACV36,MCV36..ALT200208-200408

STONE,TRIM1#

main69268-YA010-E1×2iACV36..MTM..XLI;ACV36,MCV36..ALT200208-200408

FAWN,TRIM4#

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-YC020iACV36,MCV36200208-200408

W(POWER WINDOW)

main69830-YC090iACV36..MTM..XLI;ACV36,MCV36..ALT200208-200408

W(MANUAL WINDOW)

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-YC020iACV36,MCV36..ARL; ACV36,MCV36..GCC200208-200408

W(POWER WINDOW)

main69840-YC090iACV36..XLI200408

W(MANUAL WINDOW)

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-YC010iACV36,MCV36200208-200408

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-YC010iACV36,MCV36200208-200408

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-YC010×2iACV36,MCV36200208-200408

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-06040iACV36,MCV36200208-200408

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-02060iMCV36..MTM..ARL200408-200601

9010508077

main90105-08077

9010508291

main90105-08291

90105T0044

main90105-T0044

9016850040

main90168-50040

9017908086

main90179-08086

9151160608

main91511-60608

19 parts on this diagram · 1 diagram in section
