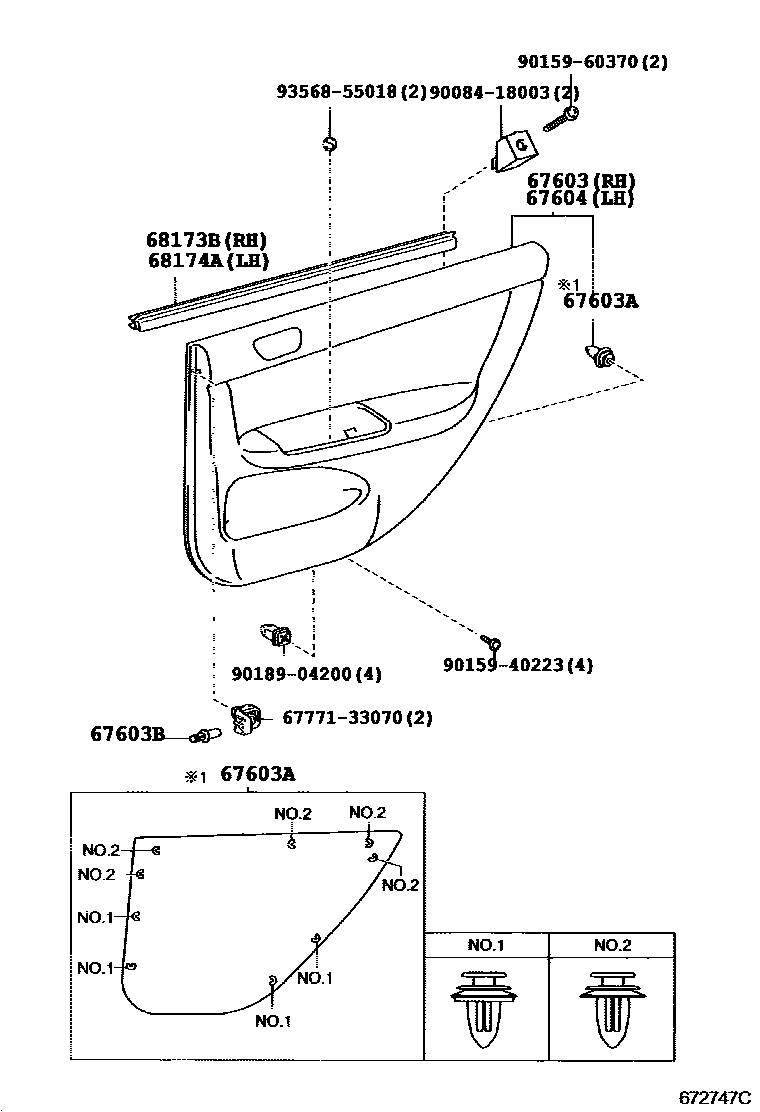

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-YC560-B0iACV36,MCV36..ALT,ALTS200208-200408

STONE,TRIM1#

main67630-YC560-B1iACV36..SPV200208-200408

STONE-DK GRAY,TRIM1#

main67630-YC560-E0iACV36,MCV36..ALT200208-200408

FAWN,TRIM4#

main67630-YC570-B1iACV36,MCV36..ALT200208-200408

W(REAR MANUAL WINDOW),STONE,TRIM1#

main67630-YC570-E1iACV36,MCV36..ALT200208-200408

W(REAR MANUAL WINDOW),FAWN,TRIM4#

main67630-YC580-B0iACV36,MCV36..ATEVA,XLI200208-200408

STONE,TRIM1#

main67630-YC580-E0iACV36,MCV36..ATEVA,XLI200208-200408

FAWN,TRIM4#

main67630-YC590-B1iACV36,MCV36..GD,GLI200208-200408

STONE,TRIM1#

main67630-YC590-E1iACV36,MCV36..GD,GLI200208-200408

FAWN,TRIM4#

main67630-YC600-B0iACV36,MCV36..ALT,TOU200408-200606

STONE,TRIM1#

main67630-YC600-E0iACV36,MCV36..ALT,TOU200408-200606

FAWN,TRIM4#

main67630-YC610-B0iMCV36..GD200208-200606

LEATHER TRIM,STONE,TRIM1#

main67630-YC610-B0iMCV36..ATEVA200507-200606

STONE,TRIM1#

main67630-YC610-B1iMCV36..ATM..SPV200208-200606

LEATHER TRIM,STONE-DK GRAY,TRIM15

main67630-YC610-B2iMCV36..ATM..SPV200208-200606

LEATHER TRIM,FAWN-DK GRAY,TRIM16

main67630-YC610-E0iMCV36..GD200208-200606

LEATHER TRIM,FAWN,TRIM4#

main67630-YC610-E0iMCV36..ATEVA200507-200606

FAWN,TRIM4#

main67630-YC620-B1iACV36..MTM..XLI200208-200408

W(REAR MANUAL WINDOW),STONE,TRIM1#

main67630-YC620-E1iACV36..MTM..XLI200208-200408

W(REAR MANUAL WINDOW),FAWN,TRIM4#

main67630-YC630-B0iMCV36..TOU200208-200408

STONE,TRIM1#

main67630-YC630-E0iMCV36..TOU200208-200408

FAWN,TRIM4#

main67630-YC640-B1iMCV36..SPV200208-200408

STONE-DK GRAY,TRIM1#

main67630-YC650-B0iMCV36..ATM..SPV200507-200606

DECONTENT PACKAGE,DK GRAY,TRIM1#

main67630-YC650-B0iACV36..SPV200408-200606

DK GRAY,TRIM1#

main67630-YC660-B0iMCV36..GD..GCC;ACV36..ATEVA,GLI200408-200606

STONE,TRIM1#

main67630-YC660-E0iMCV36..GD..GCC;ACV36..ATEVA,GLI200408-200606

FAWN,TRIM4#

main67630-YC670-B0iACV36..XLI200408-200606

STONE,TRIM1#

main67630-YC670-E0iACV36..XLI200408-200606

FAWN,TRIM4#

main67630-YC680-B0iACV36..ATM..XLI200408-200606

W(REAR MANUAL WINDOW),STONE,TRIM1#

main67630-YC680-E0iACV36..MTM..XLI200408-200606

W(REAR MANUAL WINDOW),FAWN,TRIM4#

main67630-YC690-B0iMCV36..SPV200408-200606

DK GRAY,TRIM1#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main90467-09206iACV36,MCV36200208-200601

NO.1

main90467-10161iACV36,MCV36200208-200601

NO.2

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-E9iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI200208-200606

SANDAL WOOD,TRIM4#

sub90467-07066

main90467-07066-P1iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI200208-200606

DK.CHARCOAL,TRIM1#

sub90467-07066

main90467-07066-P6iACV36..SPV;MCV36..MTM..SPV200408-200606

DK.GRAY,TRIM12,15,16

sub90467-07066

main90467-07066-P6iACV36..SPV;MCV36..MTM..SPV200208-200606

DK.GRAY,TRIM1#

sub90467-07066

main90467-07066-P6iMCV36..ATM..SPV200208-200408

DK.GRAY,TRIM15,16

sub90467-07066

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-YC560-B0iACV36,MCV36..ALT,ALTS200208-200408

STONE,TRIM1#

main67640-YC560-B1iACV36..SPV200208-200408

STONE-DK GRAY,TRIM1#

main67640-YC560-E0iACV36,MCV36..ALT200208-200408

FAWN,TRIM4#

main67640-YC570-B1iACV36,MCV36..ALT200208-200408

W(REAR MANUAL WINDOW),STONE,TRIM1#

main67640-YC570-E1iACV36,MCV36..ALT200208-200408

W(REAR MANUAL WINDOW),FAWN,TRIM4#

main67640-YC580-B0iACV36,MCV36..ATEVA,XLI200208-200408

STONE,TRIM1#

main67640-YC580-E0iACV36,MCV36..ATEVA,XLI200208-200408

FAWN,TRIM4#

main67640-YC590-B1iACV36,MCV36..GD,GLI200208-200408

STONE,TRIM1#

main67640-YC590-E1iACV36,MCV36..GD,GLI200208-200408

FAWN,TRIM4#

main67640-YC600-B0iACV36,MCV36..ALT,TOU200408-200606

STONE,TRIM1#

main67640-YC600-E0iACV36,MCV36..ALT,TOU200408-200606

FAWN,TRIM4#

main67640-YC610-B0iMCV36..GD200208-200606

LEATHER TRIM,STONE,TRIM1#

main67640-YC610-B0iMCV36..ATEVA200507-200606

STONE,TRIM1#

main67640-YC610-B1iMCV36..ATM..SPV200208-200606

LEATHER TRIM,STONE-DK GRAY,TRIM15

main67640-YC610-B2iMCV36..ATM..SPV200208-200606

LEATHER TRIM,FAWN-DK GRAY,TRIM16

main67640-YC610-E0iMCV36..GD200208-200606

LEATHER TRIM,FAWN,TRIM4#

main67640-YC610-E0iMCV36..ATEVA200507-200606

FAWN,TRIM4#

main67640-YC620-B1iACV36..MTM..XLI200208-200408

W(REAR MANUAL WINDOW),STONE,TRIM1#

main67640-YC620-E1iACV36..MTM..XLI200208-200408

W(REAR MANUAL WINDOW),FAWN,TRIM4#

main67640-YC630-B0iMCV36..TOU200208-200408

STONE,TRIM1#

main67640-YC630-E0iMCV36..TOU200208-200408

FAWN,TRIM4#

main67640-YC640-B1iMCV36..SPV200208-200408

STONE-DK GRAY,TRIM1#

main67640-YC650-B0iACV36..SPV200408-200606

DK GRAY,TRIM1#

main67640-YC650-B0iMCV36..ATM..SPV200507-200606

DECONTENT PACKAGE,DK GRAY,TRIM1#

main67640-YC660-B0iMCV36..ATEVA200408-200606

STONE,TRIM1#

main67640-YC660-E0iMCV36..ATEVA200408-200606

FAWN,TRIM4#

main67640-YC670-B0iACV36..XLI200408-200606

STONE,TRIM1#

main67640-YC670-E0iACV36..XLI200408-200606

FAWN,TRIM4#

main67640-YC680-B0iACV36..ATM..XLI200408-200606

W(REAR MANUAL WINDOW),STONE,TRIM1#

main67640-YC680-E0iACV36..ATM..XLI200408-200606

W(REAR MANUAL WINDOW),FAWN,TRIM4#

main67640-YC690-B0iMCV36..SPV200408-200606

DK GRAY,TRIM1#

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-YC010iACV36,MCV36200208-200601

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-YC010iACV36,MCV36200208-200601

6777133070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33070

9008418003

main90084-18003

9015940223

main90159-40223

9015960370

main90159-60370

9018904200

main90189-04200

9356855018

main93568-55018

12 parts on this diagram · 2 diagrams in section
