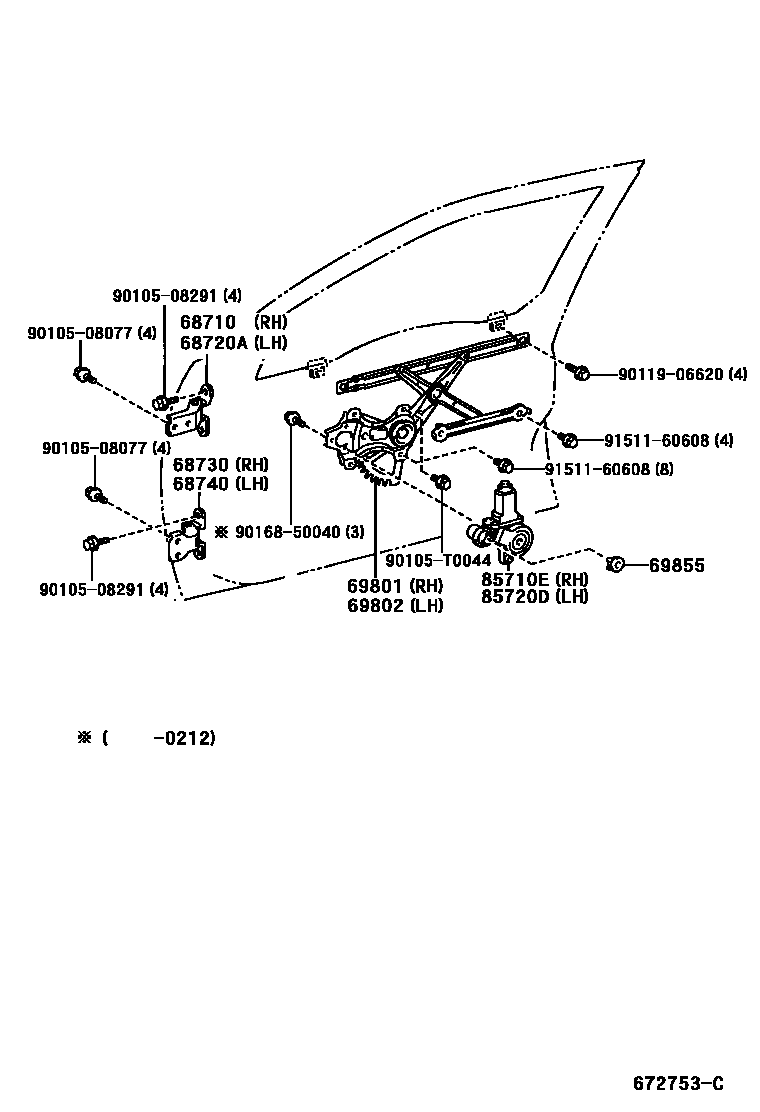

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-33030iACV36,MCV36200208-200408

(J)

main68710-YC010iACV36,MCV36200408-200606

(L)

68720AHINGE ASSY, FRONT DOOR, LH

main68720-33030iACV36,MCV36200408-200606

(J)

main68720-YC010iACV36,MCV36200208-200408

(L)

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33020iACV36,MCV36200208-200408

(J)

main68730-YC010iACV36,MCV36200208-200408

(L)

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33020iACV36,MCV36200408-200606

(J)

main68740-YC010iACV36,MCV36200408-200606

(L)

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-YC030iACV36,MCV36200208-200408

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-YC030iMCV36..MTM..ARL200408-200601

69855COVER, DOOR WINDOW REGULATOR GEAR

main69855-20010×2iMCV36..MTM..ARL200408-200601

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-02060iACV36,MCV36..GCC200408

main85710-42090iACV36,MCV36..ALT; ACV36,MCV36..ALTS,ATEVA,SPV200208-200408

W(POWER WINDOW=ONE TOUCH TYPE DRIVER SIDE)

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-06040iMCV36..MTM..ARL200408-200601

main85720-42080iACV36,MCV36..GCC200408

W(POWER WINDOW=ONE TOUCH TYPE DRIVER SIDE)

9010508077

main90105-08077

9010508291

main90105-08291

90105T0044

main90105-T0044

9011906620

main90119-06620

9016850040

main90168-50040

9151160608

main91511-60608

15 parts on this diagram · 1 diagram in section
