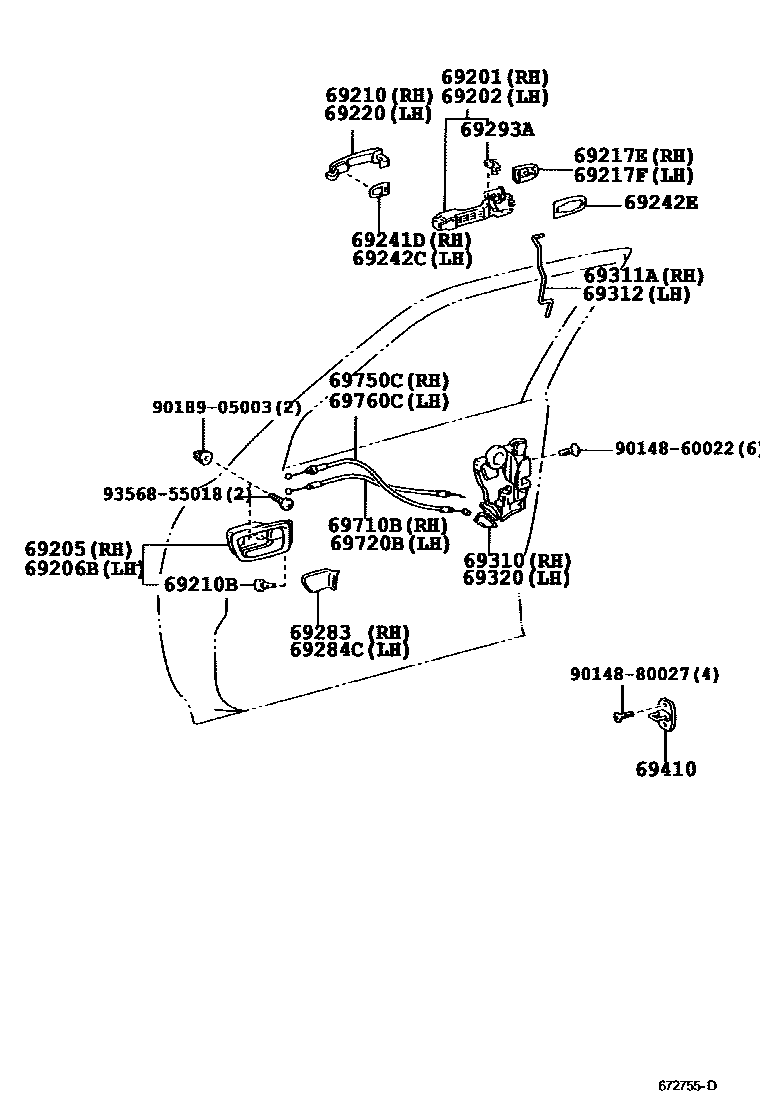

FRONT DOOR LOCK & HANDLE

69201HANDLE SUB-ASSY, DOOR OUTSIDE, RH

main69201-YC010iACV36,MCV36200208-200606

sub69201-33010

69202HANDLE SUB-ASSY, DOOR OUTSIDE, LH

main69202-YC010iACV36,MCV36200208-200606

sub69202-33010

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-YC030-B0iACV36,MCV36..ALT,ALTS,TOU,XLI200208-200606

DK.CHARCOAL,TRIM1#

sub69205-33030

sub69283-33020

main69205-YC030-B1iACV36,MCV36..SPV200408-200606

DK.GRAY,TRIM1#

sub69205-33030

sub69283-33020

main69205-YC030-E0iACV36,MCV36..ALT,TOU,XLI200208-200606

SANDAL WOOD,TRIM4#

sub69205-33030

sub69283-33020

main69205-YC040-B0iACV36,MCV36..ATEVA,GD,GLI200208-200606

DK.CHARCOAL,TRIM1#

sub69205-33040

main69205-YC040-B1iMCV36..ATM..SPV200208-200606

DK.GRAY,TRIM15,16

sub69205-33040

main69205-YC040-B1iMCV36..ATM..SPV200208-200408

DK.GRAY,TRIM1#

sub69205-33040

main69205-YC040-E0iACV36,MCV36..ATEVA,GD,GLI200208-200606

SANDAL WOOD,TRIM4#

sub69205-33040

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-YC030-B0iACV36,MCV36..ALT,TOU,XLI200208-200606

DK.CHARCOAL,TRIM1#

main69206-YC030-B1iACV36,MCV36..SPV200408-200606

DK.GRAY,TRIM1#

main69206-YC030-E0iACV36,MCV36..ALT,TOU,XLI200208-200606

SANDAL WOOD,TRIM4#

main69206-YC040-B0iACV36,MCV36..ATEVA,GD,GLI200208-200606

DK.CHARCOAL,TRIM1#

sub69206-33040

sub69284-33020

main69206-YC040-B1iACV36..SPV;MCV36..MTM..SPV200208-200606

DK.GRAY,TRIM15,16

sub69206-33040

sub69284-33020

main69206-YC040-B1iMCV36..ATM..SPV200208-200408

DK.GRAY,TRIM1#

sub69206-33040

sub69284-33020

main69206-YC040-E0iACV36,MCV36..ATEVA,GD,GLI200208-200606

SANDAL WOOD,TRIM4#

sub69206-33040

sub69284-33020

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69211-YC060iACV36,MCV36..TOU,XLI200208-200606

NO PAINT REQ.

sub69211-02130

main69211-YC070-A0iACV36,MCV36..ALTS,ATEVA,SPV200208-200606

DIAMOND WHITE,061

sub69211-12903

main69211-YC070-B0iACV36,MCV36..ATEVA,SPV200208-200508

SILVER M,173

sub69211-12903

main69211-YC070-B1iACV36,MCV36..ALT,ATEVA,SPV200508-200606

SILVER ME.,1D4

sub69211-12903

main69211-YC070-C0iACV36,MCV36..ALTS,ATEVA,SPV200404-200606

BLACK MC.,209

sub69211-12903

main69211-YC070-D0iACV36,MCV36..ALTS,ATEVA,SPV200208-200301

DK.RED MC.,3N4

sub69211-12903

main69211-YC070-D1iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

DK. RED MC.,3N6

sub69211-12903

main69211-YC070-D2iACV36,MCV36..ALT200301-200606

RED M.M.,3N8

sub69211-12903

main69211-YC070-E0iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

LT.BEIGE ME.OP.,4N5

sub69211-12903

main69211-YC070-E1iACV36,MCV36..ALT,ATEVA,SPV200508-200606

BEIGE M.M.,4N3

sub69211-12903

main69211-YC070-F0iACV36,MCV36..ALTS,ATEVA,SPV200208-200508

CHAMPAGNE ME.,583

sub69211-12903

main69211-YC070-G0iACV36,MCV36..ALTS,ATEVA,SPV200208-200301

LT.GREEN ME.OP.,6P7

sub69211-12903

main69211-YC070-G1iACV36,MCV36..ALTS,ATEVA,SPV200208-200307

MD.GREEN ME.,6P8

sub69211-12903

main69211-YC070-G2iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

DARK GREEN MC.,6R4

sub69211-12903

main69211-YC070-G3iACV36,MCV36..ALTS,ATEVA,SPV200301-200606

LT.GREEN M.M.,6S8

sub69211-12903

main69211-YC070-J0iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

DK.BLUE MC.,8N8

sub69211-12903

main69211-YC070-J1iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

DK.BLUE M.M.,8P4

sub69211-12903

main69211-YC070-J2iACV36,MCV36..ALTS,ATEVA,SPV200301-200606

PALE BLUE M.M.,8R0

sub69211-12903

main69211-YC070-J3iACV36,MCV36..ALT200408-200601

BLUE M.M.,8Q1

sub69211-12903

main69211-YC070-J4iACV36,MCV36..ALT,ATEVA,SPV200601-200606

LT.BLUE ME.,8M7

sub69211-12903

main69211-YC070-J5iACV36,MCV36..SPV200601-200606

BLUE ME.,8P1

sub69211-12903

main69211-YC080iACV36,MCV36..GD,GLI,TOU,XLI200208-200606

PLATED

sub69210-33070

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90089-54015iMCV36..MTM..TOU;ACV36..ALT,SPV,XLI;MCV36..ATM..(ALT,SPV,TOU)200408-200601

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-YC030iACV36,MCV36..ALT200408-200606

sub69217-02060

main69217-YC030iACV36,MCV36..ALT,TOU,XLI200208-200408

BLACK

sub69217-02060

main69217-YC040-A0iACV36,MCV36..ALT200208-200606

DIAMOND WHITE,061

main69217-YC040-B0iACV36,MCV36..ALT200208-200508

SILVER M,173

main69217-YC040-B1iACV36,MCV36..ALT,ATEVA,SPV200508-200606

SILVER ME.,1D4

main69217-YC040-C0iACV36,MCV36..ALTS,ATEVA,SPV200404-200606

BLACK MC.,209

main69217-YC040-D0iACV36,MCV36..ALTS,ATEVA,SPV200208-200301

DK.RED MC.,3N4

main69217-YC040-D1iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

DK. RED MC.,3N6

main69217-YC040-D2iACV36,MCV36..ALT200301-200606

RED M.M.,3N8

main69217-YC040-E0iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

LT.BEIGE ME.OP.,4N5

main69217-YC040-E1iACV36,MCV36..ALT,ATEVA,SPV200508-200606

BEIGE M.M.,4N3

main69217-YC040-F0iACV36,MCV36..ATEVA,SPV200208-200508

CHAMPAGNE ME.,583

main69217-YC040-G0iACV36,MCV36..ALTS,ATEVA,SPV200208-200301

LT.GREEN ME.OP.,6P7

main69217-YC040-G1iACV36,MCV36..ALTS,ATEVA,SPV200208-200307

MD.GREEN ME.,6P8

main69217-YC040-G2iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

DARK GREEN MC.,6R4

main69217-YC040-G3iACV36,MCV36..ATEVA,SPV200301-200606

LT.GREEN M.M.,6S8

main69217-YC040-J0iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

DK.BLUE MC.,8N8

main69217-YC040-J1iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

DK.BLUE M.M.,8P4

main69217-YC040-J2iACV36,MCV36..ATEVA,SPV200301-200606

PALE BLUE M.M.,8R0

main69217-YC040-J3iACV36,MCV36..ALT200408-200601

BLUE M.M.,8Q1

main69217-YC040-J4iACV36,MCV36..ALT,ATEVA,SPV200601-200606

LT.BLUE ME.,8M7

main69217-YC040-J5iACV36,MCV36..SPV200601-200606

BLUE ME.,8P1

main69217-YC050iACV36,MCV36..GD,GLI,TOU,XLI200208-200606

*CR

sub69217-33020

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-YC010iACV36,MCV36..ALT200408-200507

BLACK

main69217-YC010iACV36,MCV36..ALT200208-200408

main69217-YC020-A0iACV36,MCV36..ALTS,ATEVA,SPV200208-200606

DIAMOND WHITE,061

main69217-YC020-B0iACV36,MCV36..ALT200208-200508

SILVER M,173

main69217-YC020-B1iACV36,MCV36..ALT,ATEVA,SPV200508-200606

SILVER ME.,1D4

main69217-YC020-C0iACV36,MCV36..ALT200404-200606

BLACK MC.,209

main69217-YC020-D0iACV36,MCV36..ALTS,ATEVA,SPV200208-200301

DK.RED MC.,3N4

main69217-YC020-D1iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

DK. RED MC.,3N6

main69217-YC020-D2iACV36,MCV36..ATEVA,SPV200301-200606

RED M.M.,3N8

main69217-YC020-E0iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

LT.BEIGE ME.OP.,4N5

main69217-YC020-E1iACV36,MCV36..ALT,ATEVA,SPV200508-200606

BEIGE M.M.,4N3

main69217-YC020-F0iACV36,MCV36..ALTS,ATEVA,SPV200208-200508

CHAMPAGNE ME.,583

main69217-YC020-G0iACV36,MCV36..ALTS,ATEVA,SPV200208-200301

LT.GREEN ME.OP.,6P7

main69217-YC020-G1iACV36,MCV36..ALTS,ATEVA,SPV200208-200307

MD.GREEN ME.,6P8

main69217-YC020-G2iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

DARK GREEN MC.,6R4

main69217-YC020-G3iACV36,MCV36..ALTS,ATEVA,SPV200301-200606

LT.GREEN M.M.,6S8

main69217-YC020-J0iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

DK.BLUE MC.,8N8

main69217-YC020-J1iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

DK.BLUE M.M.,8P4

main69217-YC020-J2iACV36,MCV36..ATEVA,SPV200301-200606

PALE BLUE M.M.,8R0

main69217-YC020-J3iACV36,MCV36..ALT200408-200601

BLUE M.M.,8Q1

main69217-YC020-J4iACV36,MCV36..ALT,ATEVA,SPV200601-200606

LT.BLUE ME.,8M7

main69217-YC020-J5iACV36,MCV36..SPV200601-200606

BLUE ME.,8P1

main69217-YC030iACV36,MCV36..TOU,XLI200408-200606

sub69217-02060

main69217-YC030iACV36,MCV36..TOU,XLI200208-200408

BLACK

sub69217-02060

main69217-YC050iACV36,MCV36..GCC200208-200606

*CR

sub69217-33020

main69218-YC010iMCV36..GD..ARL200408-200606

*CR

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69211-YC060iACV36,MCV36..ALT200208-200606

NO PAINT REQ.

sub69211-02130

main69211-YC070-A0iACV36,MCV36..ALT200208-200606

DIAMOND WHITE,061

sub69211-12903

main69211-YC070-B0iACV36,MCV36..ATEVA,SPV200208-200508

SILVER M,173

sub69211-12903

main69211-YC070-B1iACV36,MCV36..ALT,ATEVA,SPV200508-200606

SILVER ME.,1D4

sub69211-12903

main69211-YC070-C0iACV36,MCV36..ALTS,ATEVA,SPV200404-200606

BLACK MC.,209

sub69211-12903

main69211-YC070-D0iACV36,MCV36..ALTS,ATEVA,SPV200208-200301

DK.RED MC.,3N4

sub69211-12903

main69211-YC070-D1iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

DK. RED MC.,3N6

sub69211-12903

main69211-YC070-D2iACV36,MCV36..ATEVA,SPV200301-200606

RED M.M.,3N8

sub69211-12903

main69211-YC070-E0iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

LT.BEIGE ME.OP.,4N5

sub69211-12903

main69211-YC070-E1iACV36,MCV36..ALT,ATEVA,SPV200508-200606

BEIGE M.M.,4N3

sub69211-12903

main69211-YC070-F0iACV36,MCV36..ALTS,ATEVA,SPV200208-200508

CHAMPAGNE ME.,583

sub69211-12903

main69211-YC070-G0iACV36,MCV36..ALTS,ATEVA,SPV200208-200301

LT.GREEN ME.OP.,6P7

sub69211-12903

main69211-YC070-G1iACV36,MCV36..ALTS,ATEVA,SPV200208-200307

MD.GREEN ME.,6P8

sub69211-12903

main69211-YC070-G2iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

DARK GREEN MC.,6R4

sub69211-12903

main69211-YC070-G3iACV36,MCV36..ALTS,ATEVA,SPV200301-200606

LT.GREEN M.M.,6S8

sub69211-12903

main69211-YC070-J0iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

DK.BLUE MC.,8N8

sub69211-12903

main69211-YC070-J1iACV36,MCV36..ALTS,ATEVA,SPV200208-200408

DK.BLUE M.M.,8P4

sub69211-12903

main69211-YC070-J2iACV36,MCV36..ALTS,ATEVA,SPV200301-200606

PALE BLUE M.M.,8R0

sub69211-12903

main69211-YC070-J3iACV36,MCV36..ALT200408-200601

BLUE M.M.,8Q1

sub69211-12903

main69211-YC070-J4iACV36,MCV36..ALT,ATEVA,SPV200601-200606

LT.BLUE ME.,8M7

sub69211-12903

main69211-YC070-J5iACV36,MCV36..SPV200601-200606

BLUE ME.,8P1

sub69211-12903

main69211-YC080iACV36,MCV36..GCC200208-200606

PLATED

sub69210-33070

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main69242-YC020iACV36,MCV36200208-200606

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main69242-YC020iACV36,MCV36200208-200606

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69241-YC020iACV36,MCV36200208-200606

sub69242-42010

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-YC020-B0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI200208-200606

DK.CHARCOAL,TRIM1#

sub69283-33020

main69283-YC020-B1iMCV36..ATM..SPV200208-200606

DK.GRAY,TRIM1#

sub69283-33020

main69283-YC020-B1iMCV36..ATM..SPV200208-200408

DK.GRAY,TRIM15,16

sub69283-33020

main69283-YC020-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI200208-200606

SANDAL WOOD,TRIM4#

sub69283-33020

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-YC020-B0iACV36,MCV36..ALT,ALTS,ATEVA,GD,GLI,TOU,XLI200208-200606

DK.CHARCOAL,TRIM1#

sub69284-33020

main69284-YC020-B1iACV36..SPV;MCV36..MTM..SPV200208-200606

DK.GRAY,TRIM1#

sub69284-33020

main69284-YC020-B1iMCV36..ATM..SPV200208-200408

DK.GRAY,TRIM15,16

sub69284-33020

main69284-YC020-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI200208-200606

SANDAL WOOD,TRIM4#

sub69284-33020

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iACV36,MCV36200208-200606

RH

main69293-12040iACV36,MCV36200208-200606

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-06900iACV36,MCV36..ARL200208-200601

sub69030-33241

main69030-06901iACV36,MCV36..GCC200208-200408

W(POWER DOOR LOCK)

main69310-06900iACV36..XLI200208-200408

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-06040iMCV36..MTM..ARL200208-200601

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-06040iACV36,MCV36200208-200601

69320LOCK ASSY, FRONT DOOR, LH

main69040-06900iMCV36..MTM..ARL200208-200601

sub69040-33271

main69040-06901iACV36,MCV36..GCC200208-200408

W(POWER DOOR LOCK)

main69320-06900iACV36..XLI200208-200408

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-06010iACV36;MCV36..ATM;MCV36..MTM..GCC200208-200601

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-06040iACV36,MCV36200208-200601

sub69710-33040

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-06040iACV36,MCV36200208-200601

sub69710-33040

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-06030iACV36,MCV36200208-200601

sub69750-33010

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-06030iACV36,MCV36200208-200601

sub69750-33010

9014860022

main90148-60022

9014880027

main90148-80027

9018905003

main90189-05003

9356855018

main93568-55018

28 parts on this diagram · 1 diagram in section
