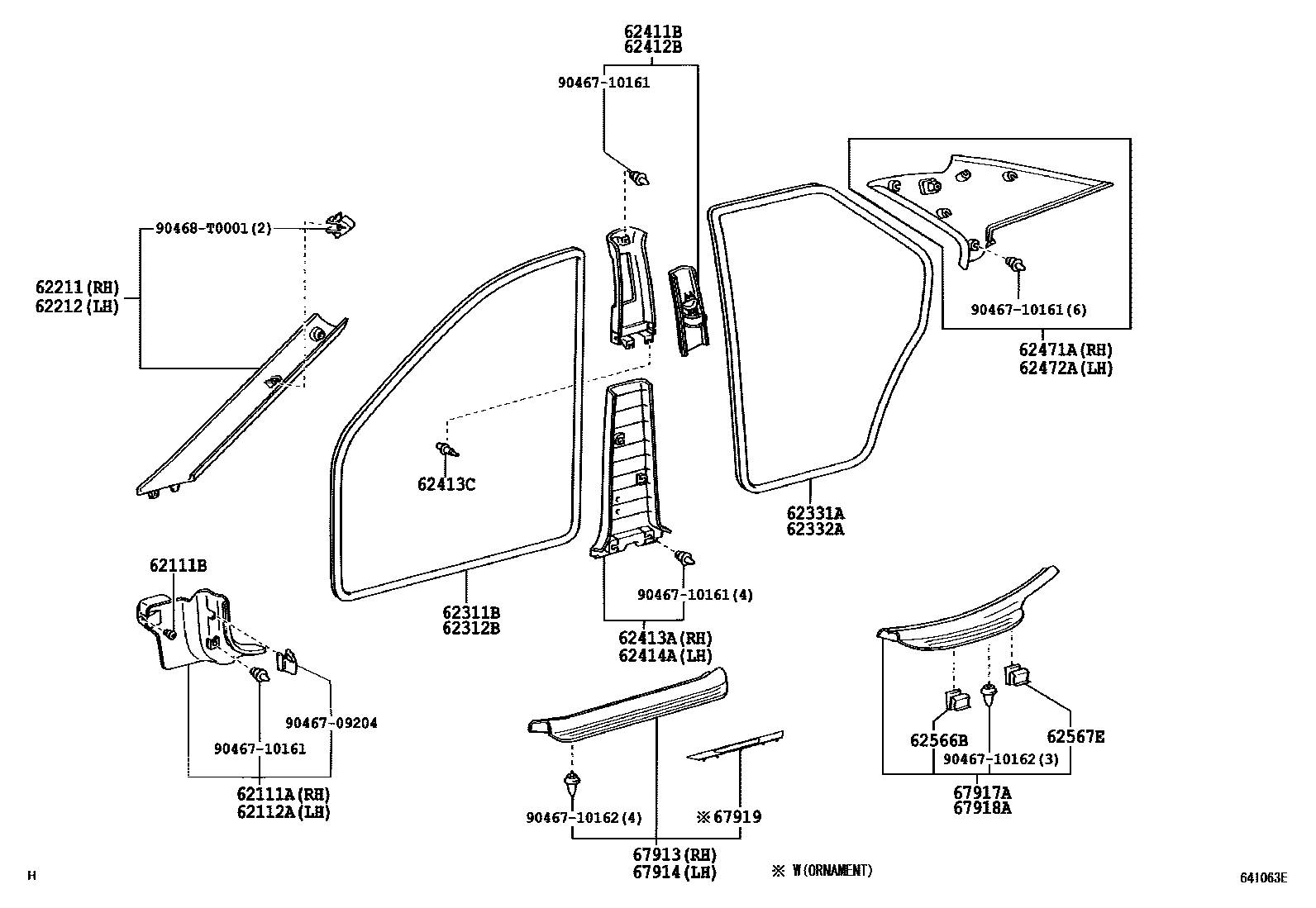

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-YC030-B0iACV36,MCV36..(ALT,ATEVA,GD)..ARL; MCV36..ATM..SPV200408-200606

STONE,TRIM1#; STONE,TRIM15

main62101-YC030-B1iACV36..SPV;MCV36..MTM..SPV; MCV36..ATM..SPV200408-200606

DK.GRAY,TRIM1#; DK.GRAY,TRIM12

main62101-YC030-E0iACV36,MCV36..ALT,ATEVA; MCV36..ATM..SPV200208-200408

FAWN,TRIM16; FAWN,TRIM4#

main62101-YC040-B0iACV36,MCV36..GCC200408-200606

STONE,TRIM1#

main62101-YC040-E0iACV36,MCV36..GCC200408-200606

FAWN,TRIM4#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06147×2iACV36,MCV36200208-200301

main90467-06158-B3×2iACV36;MCV36..MTM..SPV;MCV36..ALT,ALTS,ATEVA,GD,TOU; MCV36..ATM..SPV200301-200309

STONE,TRIM1#; STONE,TRIM15

main90467-06158-C0×2iACV36,MCV36200408-200606

BLACK

main90467-06158-E0×2iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200301-200309

FAWN,TRIM16; FAWN,TRIM4#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-YC030-B0iACV36,MCV36..(ALT,ATEVA,GD)..ARL; MCV36..ATM..SPV200408-200606

STONE,TRIM1#; STONE,TRIM15

main62102-YC030-B1iACV36..SPV;MCV36..MTM..SPV; MCV36..ATM..SPV200408-200606

DK.GRAY,TRIM1#; DK.GRAY,TRIM12

main62102-YC030-E0iACV36,MCV36..ALT,ATEVA; MCV36..ATM..SPV200208-200408

FAWN,TRIM16; FAWN,TRIM4#

main62102-YC040-B0iACV36,MCV36..GCC200208-200408

STONE,TRIM1#

main62102-YC040-E0iACV36,MCV36..GCC200208-200408

FAWN,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62210-YC040-A0iACV36,MCV36..ALT,ATEVA; MCV36..ATM..SPV200208-200308

IVORY,TRIM16; IVORY,TRIM4#

main62210-YC040-B0iACV36..ARL;MCV36..MTM..SPV;MCV36..ALT,ALTS,ATEVA; MCV36..ATM..SPV200208-200308

LT.GRAY,TRIM1#; LT.GRAY,TRIM15

main62210-YC050-A0iACV36,MCV36..GCC200208-200308

IVORY,TRIM4#

main62210-YC050-B0iACV36,MCV36..GCC200208-200308

LT.GRAY,TRIM1#

main62210-YC060-A0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200408-200606

IVORY,TRIM16; IVORY,TRIM4#

main62210-YC060-B0iACV36;MCV36..MTM..SPV;MCV36..ALT,ATEVA,GD,TOU; MCV36..ATM..SPV200408-200606

LT.GRAY,TRIM1#; LT.GRAY,TRIM12,15

62212GARNISH, FRONT PILLAR, LH

main62220-YC040-A0iACV36,MCV36..ALT,ATEVA; MCV36..ATM..SPV200208-200308

IVORY,TRIM16; IVORY,TRIM4#

main62220-YC040-B0iACV36..ARL;MCV36..MTM..SPV;MCV36..ALT,ALTS,ATEVA; MCV36..ATM..SPV200208-200308

LT.GRAY,TRIM1#; LT.GRAY,TRIM15

main62220-YC050-A0iACV36,MCV36..GCC200208-200308

IVORY,TRIM4#

main62220-YC050-B0iACV36,MCV36..GCC200208-200308

LT.GRAY,TRIM1#

main62220-YC060-A0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200308-200408

IVORY,TRIM16; IVORY,TRIM4#

main62220-YC060-B0iACV36;MCV36..MTM..SPV;MCV36..ALT,ATEVA,GD,TOU; MCV36..ATM..SPV200408-200606

LT.GRAY,TRIM1#; LT.GRAY,TRIM12,15

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-YC030-B0iACV36;MCV36..MTM..SPV;MCV36..ALT,ALTS,ATEVA,GD,TOU; MCV36..ATM..SPV200208-200408

STONE,TRIM1#; STONE,TRIM15

main62311-YC030-B1iACV36..SPV;MCV36..MTM..SPV; MCV36..ATM..SPV200408-200606

DK.GRAY,TRIM1#; DK.GRAY,TRIM12

main62311-YC030-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200408-200606

FAWN,TRIM16; FAWN,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-YC030-B0iACV36;MCV36..MTM..SPV;MCV36..ALT,ALTS,ATEVA,GD,TOU; MCV36..ATM..SPV200208-200408

STONE,TRIM1#; STONE,TRIM15

main62312-YC030-B1iACV36..SPV;MCV36..MTM..SPV; MCV36..ATM..SPV200408-200606

DK.GRAY,TRIM1#; DK.GRAY,TRIM12

main62312-YC030-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200408-200606

FAWN,TRIM16; FAWN,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-YC050-B0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200408-200606

STONE,TRIM1#; STONE,TRIM15

main62331-YC050-B1iACV36..SPV;MCV36..MTM..SPV; MCV36..ATM..SPV200408-200606

DK.GRAY,TRIM1#; DK.GRAY,TRIM12

main62331-YC050-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200408-200606

FAWN,TRIM16; FAWN,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-YC050-B0iACV36;MCV36..MTM..SPV;MCV36..ALT,ALTS,ATEVA,GD,TOU; MCV36..ATM..SPV200208-200408

STONE,TRIM1#; STONE,TRIM15

main62332-YC050-B1iACV36..SPV;MCV36..MTM..SPV; MCV36..ATM..SPV200408-200606

DK.GRAY,TRIM1#; DK.GRAY,TRIM12

main62332-YC050-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200408-200606

FAWN,TRIM16; FAWN,TRIM4#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-YC050-A0iACV36,MCV36..ALT,ATEVA; MCV36..ATM..SPV200208-200408

IVORY,TRIM16; IVORY,TRIM4#

main62410-YC050-B0iACV36..ARL;MCV36..MTM..SPV;MCV36..ALT,ALTS,ATEVA; MCV36..ATM..SPV200208-200408

LT.GRAY,TRIM1#; LT.GRAY,TRIM15

main62410-YC060-A0iACV36,MCV36..GCC200408-200606

IVORY,TRIM4#

main62410-YC060-B0iACV36,MCV36..GCC200208-200408

LT.GRAY,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-YC050-A0iACV36,MCV36..(ALT,ATEVA,GD)..ARL; MCV36..ATM..SPV200408-200606

IVORY,TRIM16; IVORY,TRIM4#

main62420-YC050-B0iACV36..ARL;MCV36..MTM..SPV;MCV36..(ALT,ATEVA,GD)..ARL; MCV36..ATM..SPV200408-200606

LT.GRAY,TRIM1#; LT.GRAY,TRIM12,15

main62420-YC060-A0iACV36,MCV36..GCC200408-200606

IVORY,TRIM4#

main62420-YC060-B0iACV36,MCV36..GCC200208-200408

LT.GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-YC030-B0iACV36;MCV36..MTM..SPV;MCV36..ALT,ALTS,ATEVA,GD,TOU; MCV36..ATM..SPV200208-200408

STONE,TRIM1#; STONE,TRIM15

main62413-YC030-B1iACV36..SPV;MCV36..MTM..SPV; MCV36..ATM..SPV200408-200606

DK.GRAY,TRIM1#; DK.GRAY,TRIM12

main62413-YC030-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200208-200408

FAWN,TRIM16; FAWN,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-07041-C0×4iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; ACV36..SPV;MCV36..ATM..ALTS;MCV36..MTM..(ALTS,SPV); MCV36..ATM..SPV200208-200408

BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM15,16

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-YC030-B0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200408-200606

STONE,TRIM1#; STONE,TRIM15

main62414-YC030-B1iACV36..SPV;MCV36..MTM..SPV; MCV36..ATM..SPV200408-200606

DK.GRAY,TRIM1#; DK.GRAY,TRIM12

main62414-YC030-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200208-200408

FAWN,TRIM16; FAWN,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-YC050-A0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200208-200408

IVORY,TRIM16; IVORY,TRIM4#

main62470-YC050-B0iACV36;MCV36..MTM..SPV;MCV36..ALT,ALTS,ATEVA,GD,TOU; MCV36..ATM..SPV200208-200408

LT.GRAY,TRIM1#; LT.GRAY,TRIM15

62472AGARNISH, ROOF SIDE, INNER LH

main62480-YC050-A0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200208-200408

IVORY,TRIM16; IVORY,TRIM4#

main62480-YC050-B0iACV36;MCV36..MTM..SPV;MCV36..ALT,ALTS,ATEVA,GD,TOU; MCV36..ATM..SPV200208-200408

LT.GRAY,TRIM1#; LT.GRAY,TRIM15

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-YC010×4iACV36,MCV36200208-200408

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-33040×2iMCV36..MTM..ARL200408-200601

67913PLATE, FRONT DOOR SCUFF, RH

main67913-YC030-B0iACV36,MCV36..SPV200408-200606

W(ORNAMENT),DK.GRAY,TRIM1#

main67913-YC040-B0iACV36;MCV36..MTM..SPV;MCV36..ALT,ALTS,ATEVA,GD,TOU; MCV36..ATM..SPV200208-200408

STONE,TRIM1#; STONE,TRIM15

main67913-YC040-B1iMCV36..ATM..SPV200508-200606

DK.GRAY,TRIM12

main67913-YC040-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200408-200606

FAWN,TRIM16; FAWN,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-YC030-B0iACV36,MCV36..SPV200408-200606

W(ORNAMENT),DK.GRAY,TRIM1#

main67914-YC040-B0iACV36;MCV36..MTM..SPV;MCV36..ALT,ALTS,ATEVA,GD,TOU; MCV36..ATM..SPV200208-200408

STONE,TRIM1#; STONE,TRIM15

main67914-YC040-B1iMCV36..ATM..SPV200508-200606

DK.GRAY,TRIM12

main67914-YC040-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200408-200606

FAWN,TRIM16; FAWN,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-YC030-B0iACV36;MCV36..MTM..SPV;MCV36..ALT,ALTS,ATEVA,GD,TOU; MCV36..ATM..SPV200208-200408

STONE,TRIM1#; STONE,TRIM15

main67917-YC030-B1iACV36,MCV36..SPV200408-200606

DK.GRAY,TRIM1#

main67917-YC030-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200408-200606

FAWN,TRIM16; FAWN,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-YC030-B0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200408-200606

STONE,TRIM1#; STONE,TRIM15

main67918-YC030-B1iMCV36..ATM..SPV200508-200606

DK.GRAY,TRIM12

main67918-YC030-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ATM..SPV200208-200408

FAWN,TRIM16; FAWN,TRIM4#

67919ORNAMENT, DOOR SCUFF

main67927-YC010×2iACV36..SPV;MCV36..ATM..SPV200408

9046709204

main90467-09204

9046710161

main90467-10161

9046710162

main90467-10162

90468T0001

main90468-T0001

27 parts on this diagram · 1 diagram in section
